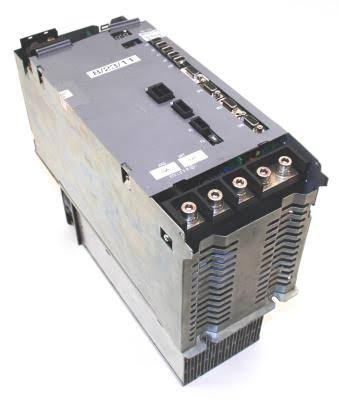

Okuma MIV22-3-V5 22 kW Servo Drive with ICB3 Inverter and Encoder Feedback

Okuma MIV22-3-V5 22 kW Servo Drive with ICB3 Inverter and Encoder Feedback

Part #: MIV22-3-V5 Manufactured by: Okuma

Regular price: $8,999.00
Sale price: $8,999.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The MIV22-3-V5 is an Okuma MIV series servo drive configured for high-capacity motor control up to 22 kW. Its resolver and... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: MIV22-3-V5

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Okuma

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: MIV22-3-V5

Description / Specifications

Description

The Okuma MIV22-3-V5 is a servo drive from the MIV Servo Drives series designed for motor applications up to 22 kW. It uses an ICB3 inverter control board and supports resolver and magnetic encoder feedback for controlled motor operation, with a maximum torque-to-rated-torque ratio of 300%.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Okuma
Category	CNC Automation
Part Number	MIV22-3-V5
Subcategory	Servo Drives
Product Series	MIV Servo Drives
Applicable Motor Capacity	22 kW (30 hp)
Maximum Torque / Rated Torque	300%
Inverter Control Board	ICB3
Resolver Signal Voltage	6.0 V
Magnetic Encoder Signal Range	2.6–4.6 V
Output Voltage Range	-3 V to +3 V
Drive Frequency Tolerance	Approx. 0.128 msec (7.81 kHz)
Unit Construction	Control board + Display card + Inverter unit
Drive Type	Servo Drive / Inverter
Weight	22.88 lbs

Information About MIV22-3-V5

The MIV22-3-V5 is a modular Okuma drive assembly combining a control board, display card, and inverter unit. Its feedback interface supports a 6.0 V resolver signal and magnetic encoder signals in the 2.6–4.6 V range for motor position and speed control. The inverter provides an output voltage range of -3 V to +3 V and uses an ICB3 control-board architecture. A drive frequency tolerance of approximately 0.128 msec (7.81 kHz) supports the specified control response characteristics.

Key Features:

22 kW Motor Capacity: Supports applicable motor applications rated up to 22 kW.
300% Torque Ratio: Provides a maximum torque-to-rated-torque ratio of 300%.
ICB3 Inverter Board: Uses an ICB3 inverter control board for drive control.
Resolver Feedback: Supports a specified resolver signal voltage of 6.0 V.
Magnetic Encoder Input: Accepts magnetic encoder signals in the 2.6–4.6 V range.
Output Voltage Range: Provides a specified output voltage range of -3 V to +3 V.
Drive Frequency Tolerance: Rated at approximately 0.128 msec (7.81 kHz).
Modular Construction: Integrates the control board, display card, and inverter unit.

The MIV22-3-V5 delivers the reliability and precision required for CNC servo control, motor regulation, and industrial machine-tool applications.
