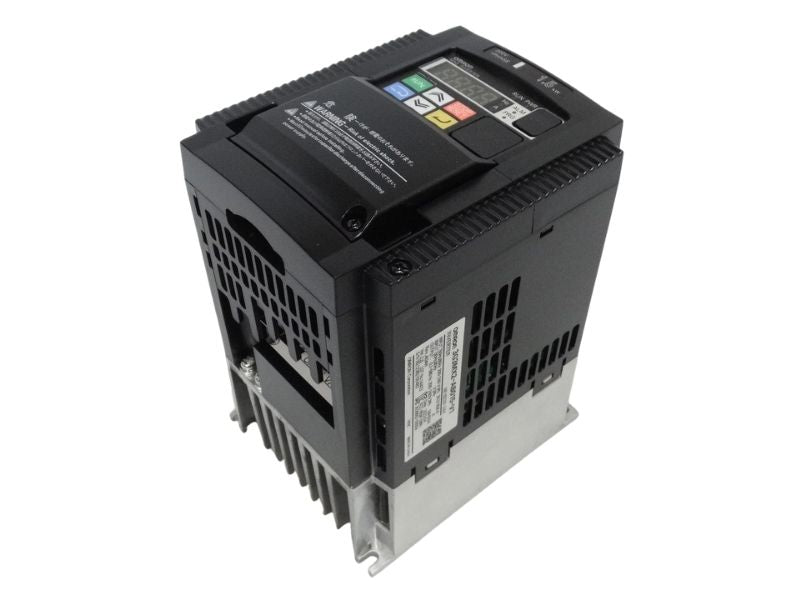

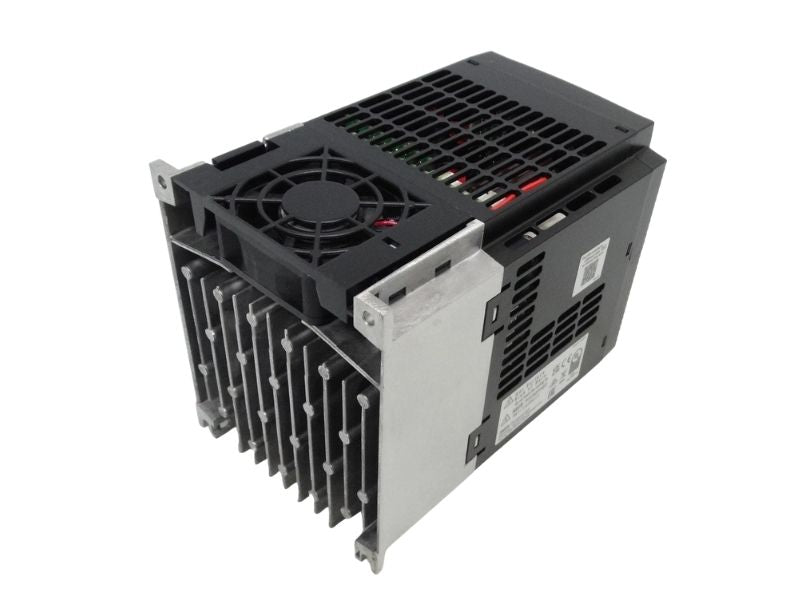

Omron 3G3MX2-AB015-V1 VFD 1.5kW 240VAC Single Phase Vector Inverter
- Regular price
- $2,378.00
- Sale price
- $2,378.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3G3MX2-AB015-V1
Description
The Omron 3G3MX2-AB015-V1 is a compact variable frequency drive designed for precise speed and torque control of single-phase motors in industrial automation systems. It supports motor power up to 1.5 kW (3 HP) and operates on a 240 VAC supply. This drive is commonly used in applications requiring efficient and flexible motor control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | 3G3MX2-AB015-V1 |
| Subcategory | Variable Frequency Drives |
| Product Type | Vector Inverter / VFD |
| Series | MX2 |
| Power Rating | 1.5 kW (3 HP) |
| Input Voltage | 240 VAC |
| Phase | Single Phase |
| Output Frequency | 0.1–400 Hz |
| Output Current | 9.6 A |
| Control Method | Vector Control |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 170.5 x 128 x 108 mm |
| Weight | 4.00 lbs |
Information About 3G3MX2-AB015-V1
The 3G3MX2-AB015-V1 is part of Omron’s MX2 series of multifunction compact inverters, developed for advanced motor control in industrial environments. It utilizes vector control technology to deliver accurate speed and torque performance, even at low speeds. The drive supports a wide range of motor types, including induction and permanent magnet motors, and can be configured through keypad, operator panel, or PC. Designed for panel mounting, it integrates easily into automation systems and supports various communication protocols via optional modules.
Key Features:
- 1.5 kW / 3 HP Rating: Suitable for medium-duty motor control applications
- Single-Phase Input: Operates on 240 VAC power systems
- Vector Control Technology: Enables precise speed and torque regulation
- Wide Frequency Range: Outputs from 0.1 to 400 Hz for flexible operation
- High Starting Torque: Provides up to 200% torque for demanding loads
- Multi-Protocol Support: Compatible with EtherCAT, Modbus, DeviceNet, and more
- Built-In Logic Functions: Supports programmable control and positioning tasks
- Safety Compliance: Meets ISO13849-1 PLd safety standards
The 3G3MX2-AB015-V1 delivers the reliability and precision required for variable speed motor control in industrial automation systems.
