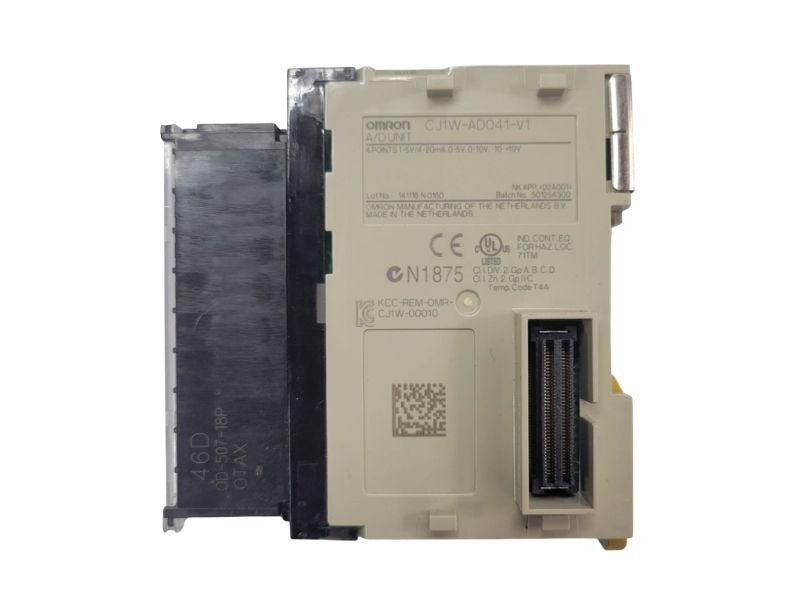

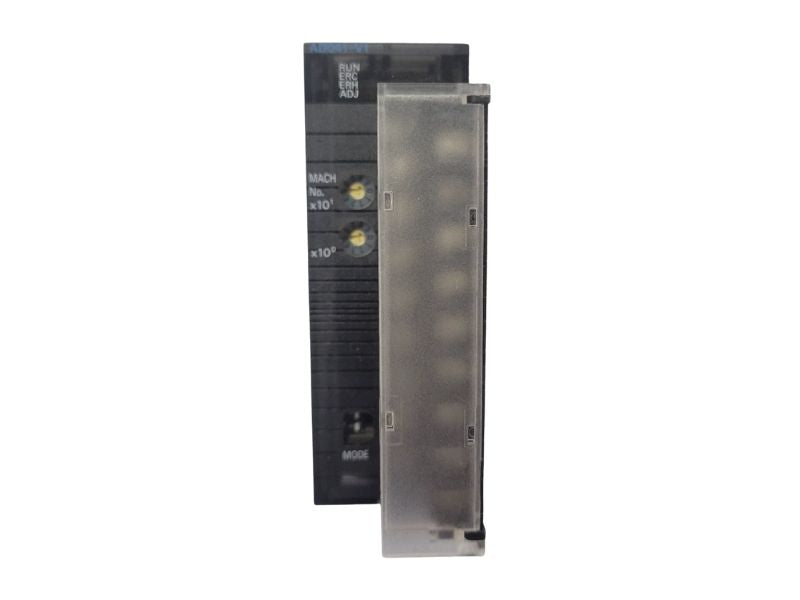

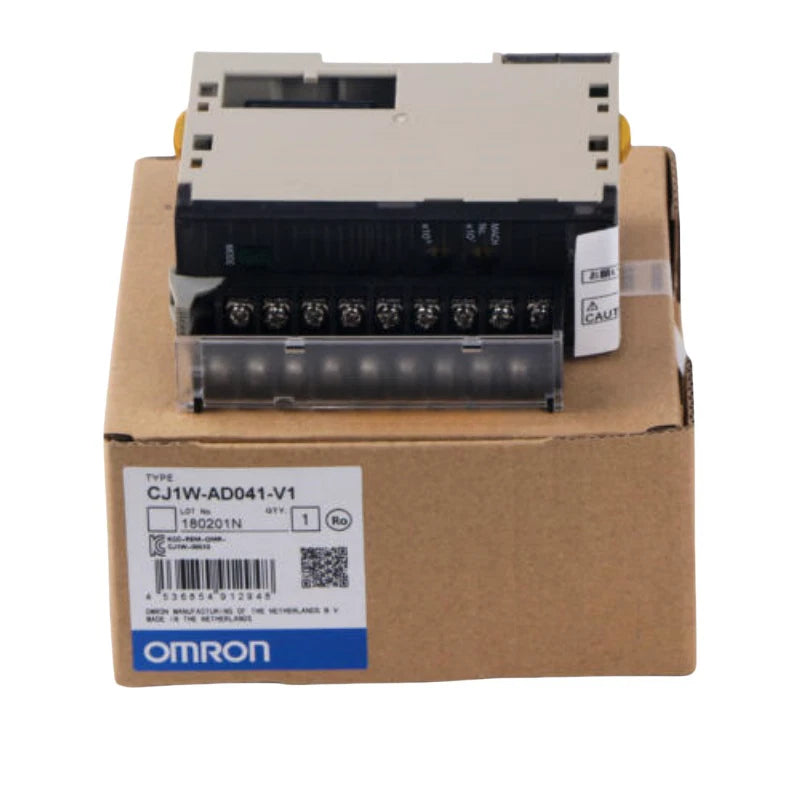

CJ1W-AD041-V1 | Omron CJ Series 4-Channel Analog Input PLC Module
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-AD041-V1
Description
The Omron CJ1W-AD041-V1 is an analog input module designed for use with CJ-series PLC systems to convert external analog signals into digital data for control processing. It features four analog input channels supporting voltage and current signals for monitoring industrial sensors and transmitters. This module enables accurate acquisition of process data in automation and machine control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CJ1W-AD041-V1 |
| Subcategory | PLC Module/Rack |
| Series | CJ1W |
| Module Type | Analog input module |
| I/O System | CJ I/O Bus |
| Number of Analog Inputs | 4 |
| Supported Input Types | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Input Resolution | 13-bit |
| Conversion Time | 4000 ms per unit |
| Connection Type | Screw terminal |
| Mounting | PLC rack mounting |
| Dimensions | 90 × 31 × 89 mm |
| Weight | 0.33 lbs |
Information About CJ1W-AD041-V1
The CJ1W-AD041-V1 is part of the Omron CJ1W series of special I/O units used within CJ-series programmable logic controller systems. It connects to the CJ I/O bus and allows PLC systems to receive analog input signals from field devices such as pressure sensors, flow transmitters, and level measurement equipment. The module supports multiple voltage and current ranges, including -10 to 10 V and 4 to 20 mA, enabling flexible integration with various instrumentation types. With 13-bit resolution and screw terminal connections, it provides reliable signal acquisition for industrial automation environments.
Key Features:
-
Four Analog Input Channels: Provides simultaneous monitoring of multiple process signals.
-
Multiple Signal Ranges Supported: Accepts -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, and 4 to 20 mA inputs.
-
13-Bit Resolution Conversion: Ensures accurate digital representation of analog process signals.
-
CJ I/O Bus Integration: Designed for direct installation within Omron CJ-series PLC systems.
-
Screw Terminal Wiring: Allows secure and reliable field wiring connections.
-
Industrial Signal Compatibility: Suitable for sensors, transmitters, and other analog instrumentation.
-
Special I/O Unit Design: Expands PLC functionality by enabling analog data acquisition.
The CJ1W-AD041-V1 delivers the reliability and precision required for analog signal monitoring in PLC-based industrial automation systems.
