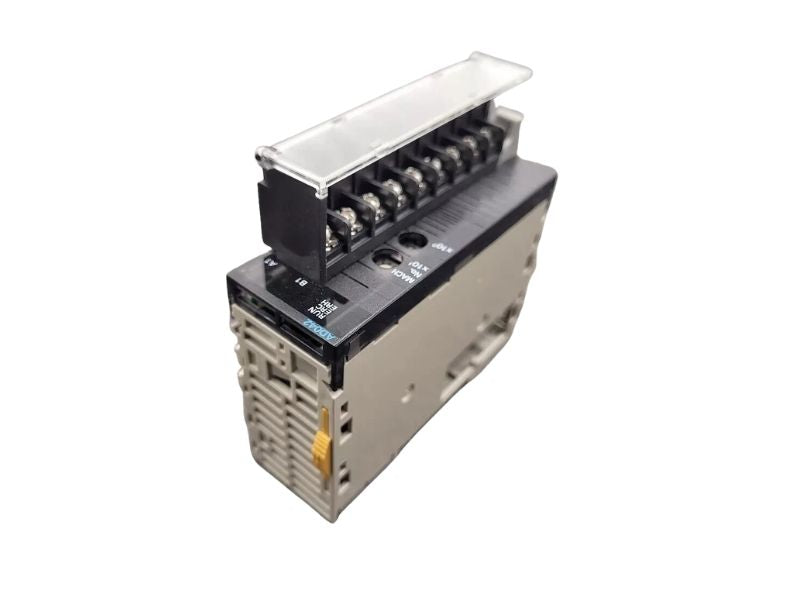

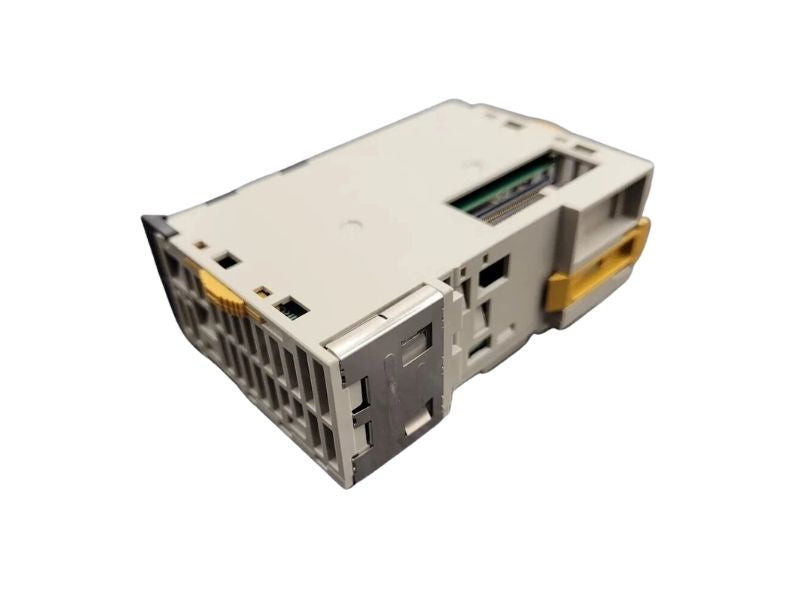

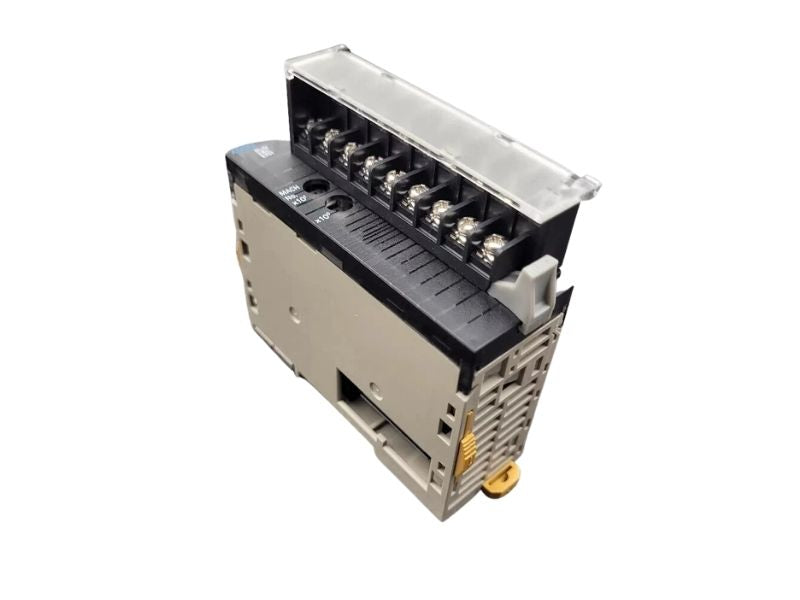

Omron CJ1W-AD042 Analog Input Module for CJ Series PLC Systems
- Regular price
- $1,997.00
- Sale price
- $1,997.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-AD042
Description
The Omron CJ1W-AD042 is a high-speed analog input unit designed for CJ-series PLC systems in industrial automation applications. It converts analog voltage and current signals into digital data with high accuracy and fast response times. This module is commonly used for process monitoring, measurement, and control applications requiring reliable analog signal acquisition.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CJ1W-AD042 |
| Subcategory | Analog Input Modules |
| Product Type | Analog Input Unit |
| Series | CJ1W |
| I/O System | CJ I/O Bus |
| Analog Inputs | 4 Channels |
| Resolution | 16 Bit |
| Input Signal Types | Voltage / Current |
| Supported Input Ranges | -10 to 10 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA |
| Conversion Speed | 20 μs per Point |
| Connection Type | Screw Terminal |
| Terminal Block | Detachable |
| Mounting Type | PLC Rack Mount |
| Operating Functions | Averaging, Peak Hold, Scaling |
| Dimensions | 90 × 31 × 89 mm |
| Country of Origin | Japan |
| Weight | 0.33 lbs |
Information About CJ1W-AD042
The CJ1W-AD042 is part of Omron’s CJ-series special I/O units, developed for advanced analog signal processing within CJ PLC systems. It features four analog input channels with 16-bit resolution and supports multiple voltage and current input ranges, including 0–10 V and 4–20 mA. The module performs high-speed A/D conversion at 20 μs per point, making it suitable for fast process control applications. Designed with screw terminal connections and a detachable terminal block, it enables secure installation and simplified maintenance in industrial control panels.
Key Features:
- 4 Analog Input Channels: Supports multiple process signal inputs
- High-Speed Conversion: 20 μs per point A/D conversion performance
- 16-Bit Resolution: Provides accurate analog signal processing
- Multiple Signal Ranges: Compatible with voltage and current inputs
- CJ-Series Compatibility: Designed for Omron CJ PLC systems
- Screw Terminal Connection: Ensures reliable industrial wiring
- Advanced Processing Functions: Includes averaging and peak value hold
- Compact Industrial Design: Suitable for panel-mounted automation systems
The CJ1W-AD042 delivers the reliability and precision required for analog signal acquisition in industrial automation systems.
