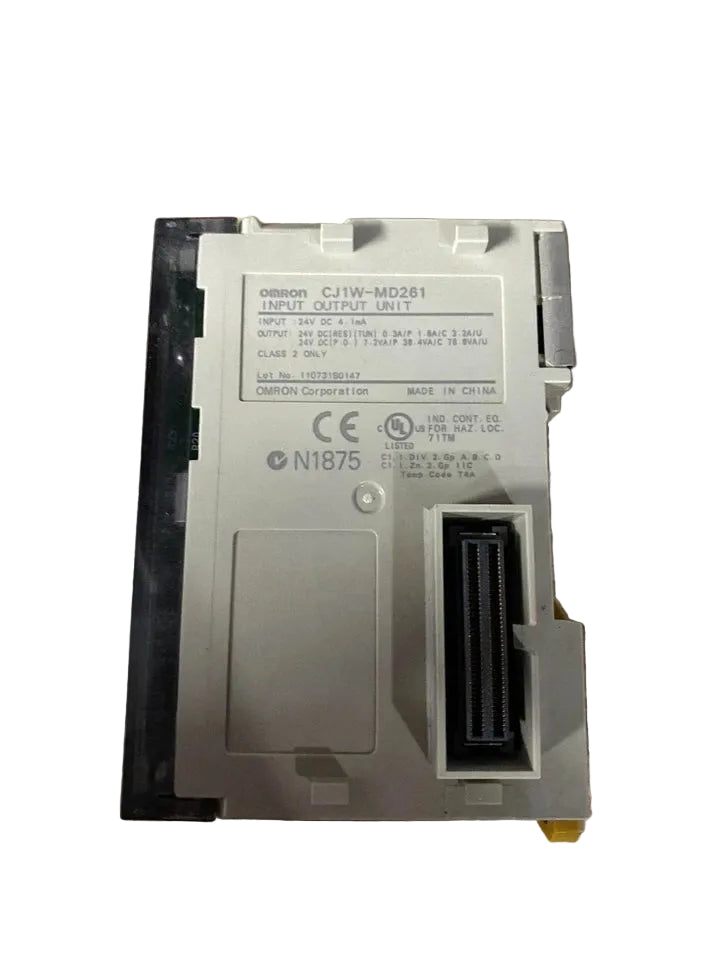

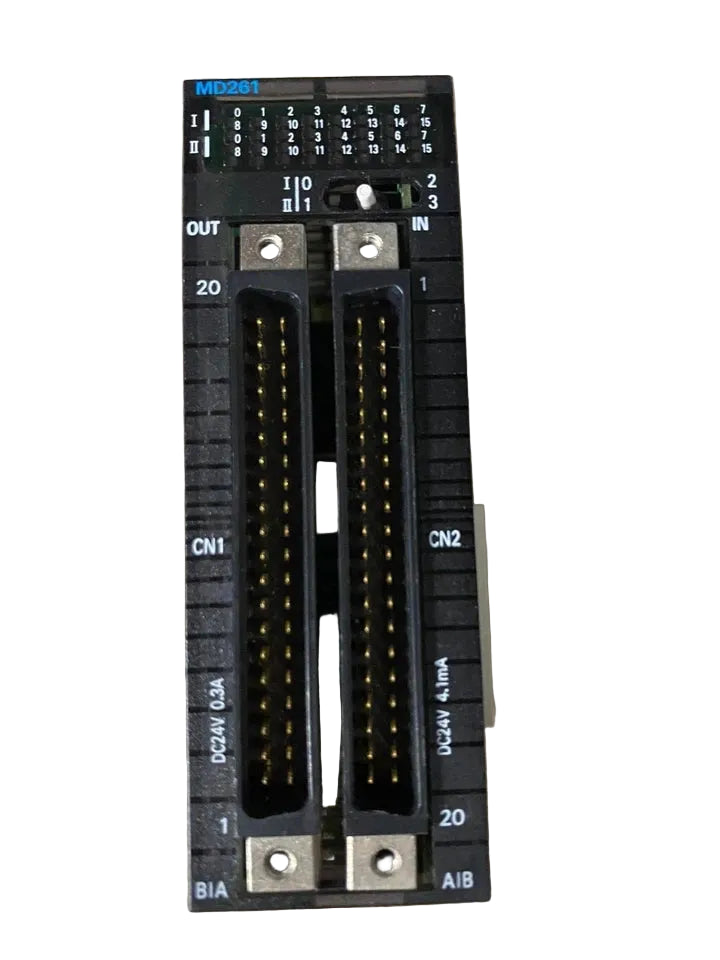

Omron CJ1W-MD261 CJ Series 64-Point Digital I/O Module
- Regular price
- $889.00
- Sale price
- $889.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-MD261
Description
The Omron CJ1W-MD261 is a high-density digital I/O module for the CJ Series PLC platform, combining 32 digital inputs and 32 NPN transistor outputs in a single compact unit. Designed for high-speed industrial automation applications, it provides reliable signal processing while reducing panel space and simplifying system design.
Technical Specifications
| Condition | New |
| Brand | Omron |
| Part Number | CJ1W-MD261 |
| Category | Industrial Automation and Controls |
| Subcategory | PLC Module |
| Product Type | Digital I/O Module |
| Series | CJ1W |
| I/O System | CJ I/O Bus |
| Digital Inputs | 32 |
| Input Type | PNP / NPN |
| Input Voltage | 20.4–26.4 VDC |
| Input Delay | 0–32 ms |
| Digital Outputs | 32 |
| Output Type | NPN Solid State |
| Output Voltage | 10.2–26.4 VDC |
| Output Current | 0.3 A per output |
| Connection Type | FCN (Plug Not Included) |
| Mounting Type | DIN Rail |
| Dimensions (H × W × D) | 90 × 31 × 66.5 mm |
| Compatible Controllers | Omron CJ Series |
| Product Status | Active |
| Weight | 110 g |
Information About CJ1W-MD261
The CJ1W-MD261 is part of Omron's CJ1W Series of PLC expansion modules. It connects directly to the CJ I/O Bus and integrates 32 configurable PNP/NPN digital inputs with 32 NPN transistor outputs. Supporting 24 VDC operation and fast response times, the module is well suited for machine automation, material handling, packaging equipment, and industrial process control. Its compact DIN rail design and FCN connector interface simplify installation and maintenance in CJ Series PLC systems.
Key Features:
- CJ1W Series digital I/O module
- 32 digital inputs and 32 transistor outputs
- Supports PNP and NPN digital inputs
- NPN solid-state outputs rated at 0.3 A per point
- CJ I/O Bus communication
- Adjustable input delay from 0 to 32 ms
- Compact DIN rail mounting design
- FCN connector interface
- Designed for Omron CJ Series PLCs
- Ideal for high-density industrial I/O applications
The CJ1W-MD261 delivers reliable high-density digital input and output expansion for Omron CJ Series automation systems.
