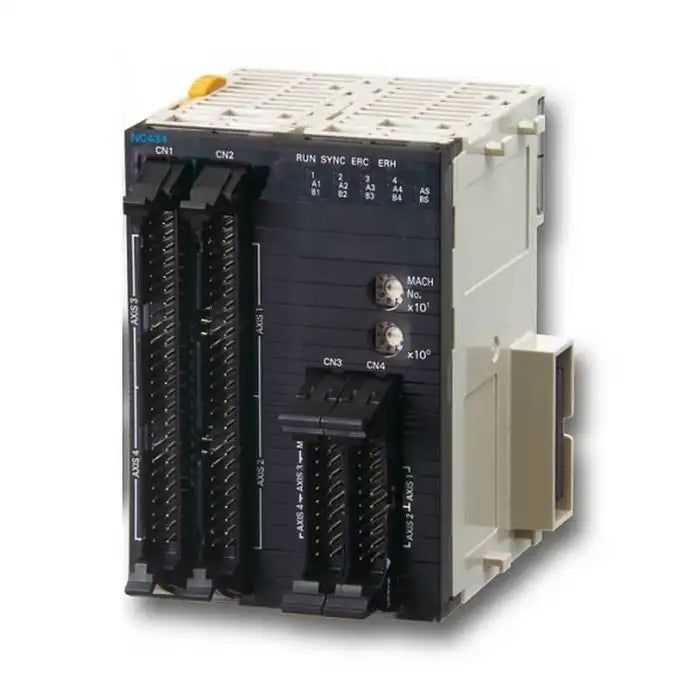

Omron CJ1W-NC434 Position Control Module 4 Axis High Speed Pulse Output PLC
- Regular price
- $3,119.00
- Sale price
- $3,119.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-NC434
Description
The Omron CJ1W-NC434 is a high-speed position control module designed for precise multi-axis motion control in industrial automation systems. It supports up to four axes with high-frequency pulse outputs for accurate positioning and synchronization. This module is used with CJ-series PLCs to control servo and stepper motor systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Business & Industrial |
| Part Number | CJ1W-NC434 |
| Subcategory | PLC Motion Control Modules |
| Series | CJ1W |
| Module Type | Position Control Module |
| Number of Axes | 4 |
| Output Type | Pulse Train (Line Driver RS-422) |
| Max Pulse Frequency | 4 MHz |
| Functionality | Positioning, Pulse Control |
| I/O System | CJ I/O Bus |
| Connection Type | Detachable Connector |
| Mounting Type | DIN Rail |
| Operating Temperature | 0°C to 55°C |
| Current Consumption | 0.31 A |
| Certifications | cULus |
| Weight | 220 g |
Information About CJ1W-NC434
The CJ1W-NC434 is part of Omron’s CJ1W series of PLC modules, developed for advanced motion and positioning control applications. It provides pulse-train output with line driver (RS-422) signaling, ensuring reliable communication with servo drives and motion devices. The module supports synchronized multi-axis control and high-speed operation for demanding automation processes. Its DIN rail mounting and detachable connectors allow straightforward installation and flexible wiring in industrial control panels.
Key Features:
-
4-axis position control: Enables simultaneous control of multiple motion axes.
-
High-speed pulse output: Supports pulse frequencies up to 4 MHz for precise positioning.
-
Line driver (RS-422) output: Provides reliable signal transmission to motion devices.
-
Synchronized motion capability: Allows coordinated control of multiple axes.
-
CJ-series PLC compatibility: Designed for integration with Omron CJ automation systems.
-
Pulse counter functionality: Supports feedback and monitoring of motion control processes.
-
Detachable I/O connectors: Simplifies wiring and maintenance.
-
DIN rail mounting: Suitable for installation in industrial control panels.
The CJ1W-NC434 delivers the reliability and precision required for multi-axis positioning and motion control in industrial automation systems.
