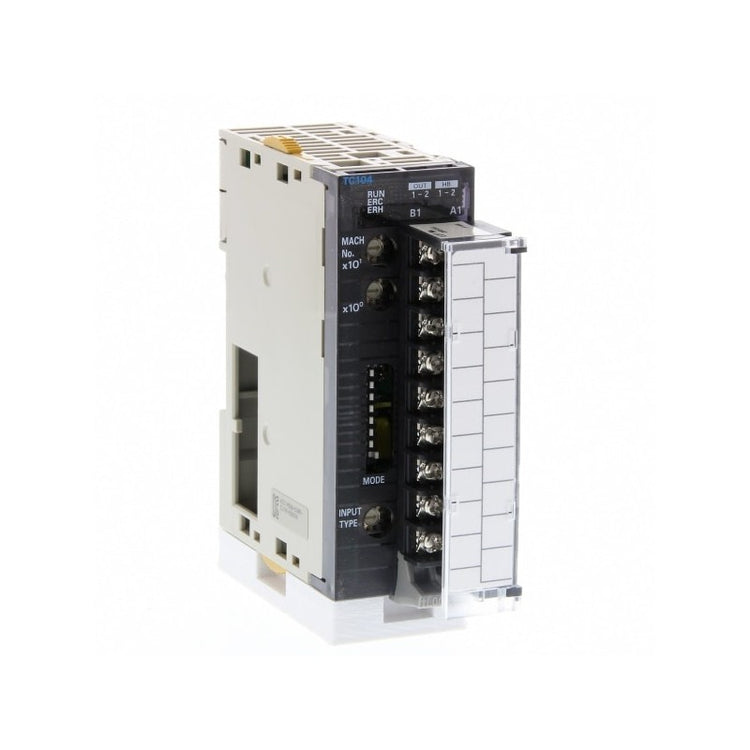

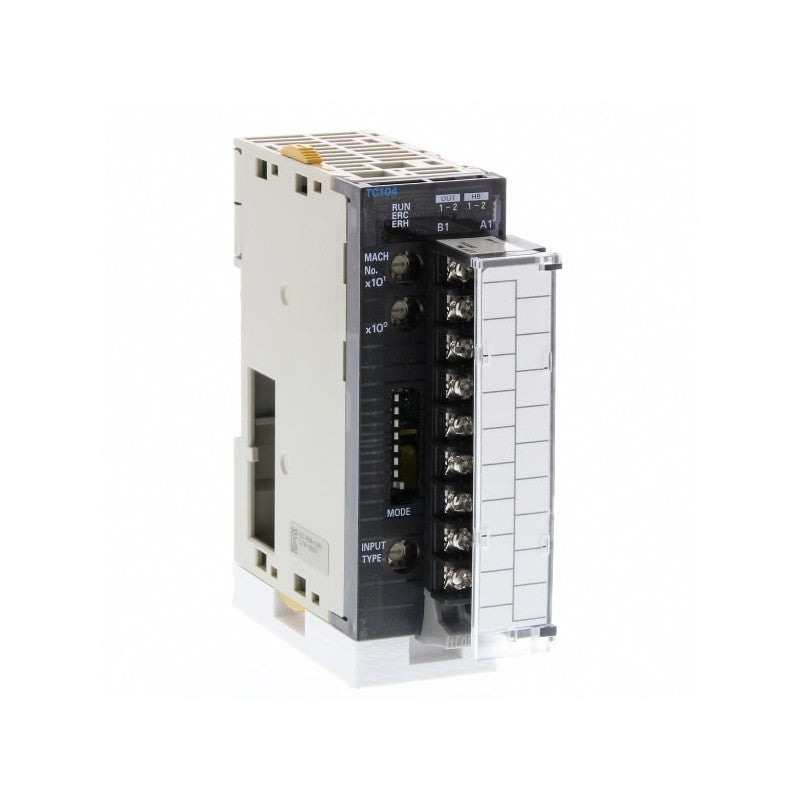

CJ1W-TC104 | Omron CJ Series PLC Temperature Control Module 4 RTD Inputs
- Regular price
- $1,497.00
- Sale price
- $1,497.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJ1W-TC104
Description
The Omron CJ1W-TC104 is a temperature control module designed for use with CJ-series programmable logic controllers. It enables precise monitoring and control of temperature signals using resistance thermometer inputs for industrial process applications. This module provides reliable multi-channel temperature measurement and control for automated systems requiring accurate thermal management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CJ1W-TC104 |
| Subcategory | PLC Temperature Control Module |
| Series | CJ1W |
| Input Type | Resistance thermometer (RTD) |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Output Type | SSR |
| Supply Voltage | 24 VDC |
| Mounting Type | DIN rail |
| Termination Style | Screw terminals |
| Operating Temperature Range | -200°C to +1800°C (sensor dependent) |
| Dimensions | 90 × 89 × 31 mm |
| Display Type | None |
| Weight | 9 oz |
Information About CJ1W-TC104
The CJ1W-TC104 is part of the Omron CJ1W series of PLC expansion modules designed to extend temperature monitoring capabilities within CJ-series automation systems. It supports resistance thermometer sensor inputs, allowing accurate temperature measurement across a wide industrial range. The module integrates directly with the CJ PLC I/O bus and provides multiple input and output channels for temperature control processes. Its DIN rail mounting design and screw terminal connections allow straightforward installation within industrial control cabinets and automation equipment.
Key Features:
-
Multi-Channel Temperature Monitoring: Supports four input channels for resistance thermometer temperature sensors.
-
Integrated Temperature Control: Provides four output channels suitable for controlling heating or cooling devices.
-
CJ-Series PLC Integration: Designed for seamless installation within Omron CJ-series PLC automation systems.
-
Resistance Thermometer Input Support: Enables precise temperature measurement using RTD sensors.
-
SSR Output Configuration: Compatible with solid-state relay control for stable temperature regulation.
-
DIN Rail Mounting: Standard mounting method for installation inside industrial control panels.
-
Wide Temperature Measurement Capability: Suitable for industrial temperature monitoring across extended ranges.
-
Industrial Terminal Connection: Screw terminal wiring ensures secure electrical connections.
The CJ1W-TC104 delivers the reliability and precision required for temperature monitoring and control in industrial automation processes.
