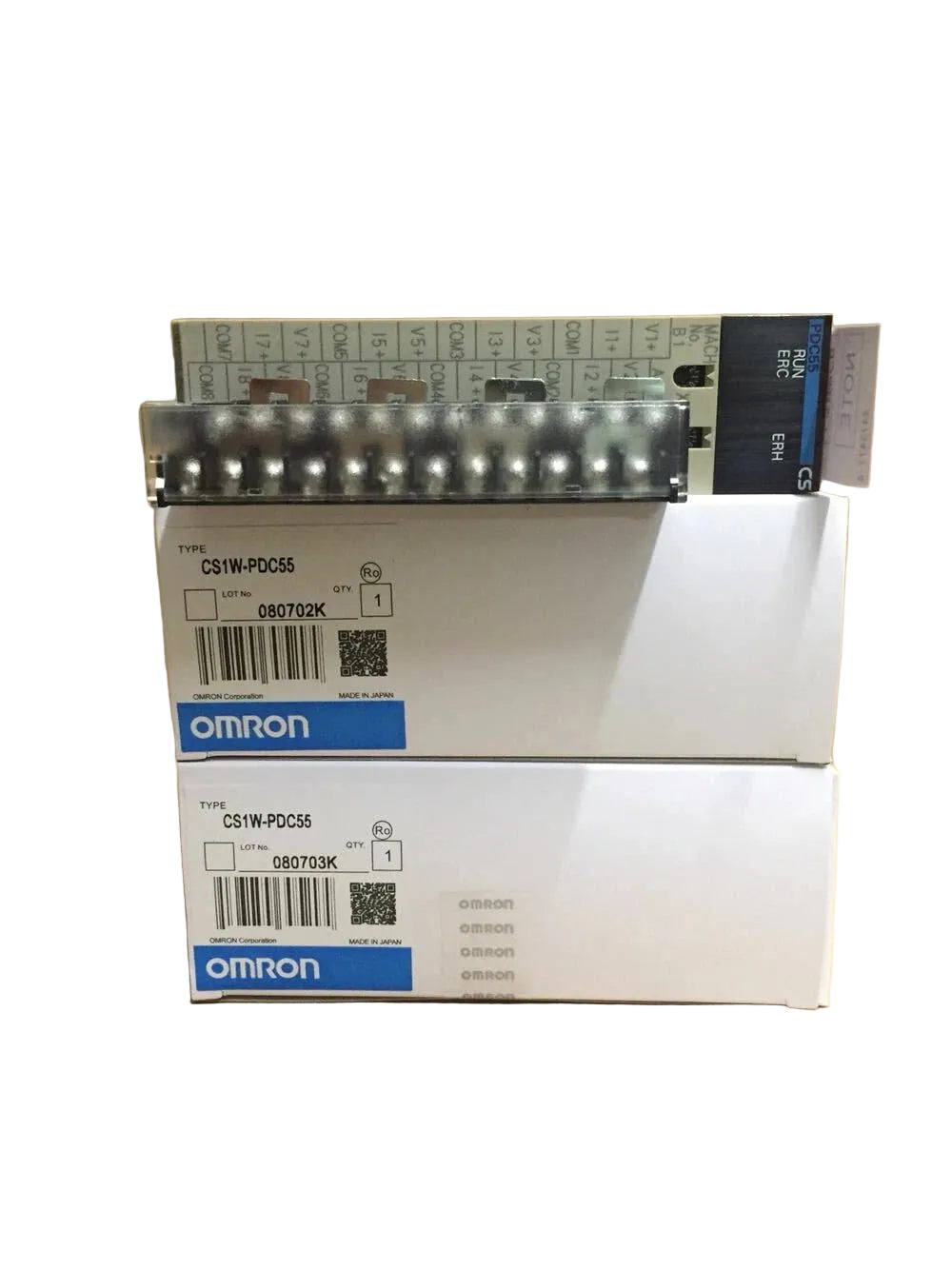

CS1W-PDC55 | Omron CS1 Isolated Analog Input Module 8-Channel High-Resolution
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-PDC55
Description
The Omron CS1W-PDC55 is an isolated analog input module designed for high-resolution DC signal acquisition in industrial control systems. It supports multiple voltage and current input ranges across eight independent channels for flexible sensor integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC I/O Modules |
| Part Number | CS1W-PDC55 |
| Subcategory | Analog Input Modules |
| Product Type | Isolated DC Analog Input Module |
| Series | CS1 |
| Number of Inputs | 8 |
| Input Signal Types | 0–10 V, 0–5 V, 1–5 V, 4–20 mA (per input) |
| Maximum Input Voltage | 15 V |
| Input Current | 30 mA |
| Resolution | 1/16,000 of full scale |
| Conversion Period | 250 ms / 8 inputs |
| Warm-Up Time | 10 minutes |
| Maximum Units per System | 80 |
| Unit Numbers | 00 to 95 (no duplication with Special I/O units) |
| Indicators | Three front-panel LED indicators |
| Connector Type | Detachable terminal block |
| Current Consumption | 0.18 A @ 5 VDC, 0.06 A @ 26 VDC |
| Weight | 1.00 lbs (0.45 kg) |
Information About CS1W-PDC55
The CS1W-PDC55 is part of Omron’s CS1 series and is designed as an isolated-type DC analog input unit for scalable PLC systems. It supports a wide range of voltage and current input signals, configurable separately for each channel to accommodate diverse field devices. The module features electrical isolation to improve noise immunity and measurement stability in industrial environments. Its detachable terminal block and front-panel indicators support efficient installation, diagnostics, and maintenance.
Key Features:
- Isolated Analog Inputs: Provides electrical isolation to reduce noise and protect control systems.
- Eight Input Channels: Supports up to eight independent analog input signals per module.
- Multiple Signal Ranges: Accepts 0–10 V, 0–5 V, 1–5 V, and 4–20 mA inputs per channel.
- High Resolution Conversion: Achieves 1/16,000 of full-scale resolution for precise measurements.
- High-Speed Processing: Completes analog conversion in 250 ms for all eight inputs.
- Detachable Terminal Block: Allows easy wiring and simplified field replacement.
- System Scalability: Supports up to 80 units per system without special I/O number duplication.
The CS1W-PDC55 delivers the reliability and precision required for industrial analog signal monitoring and control applications.
