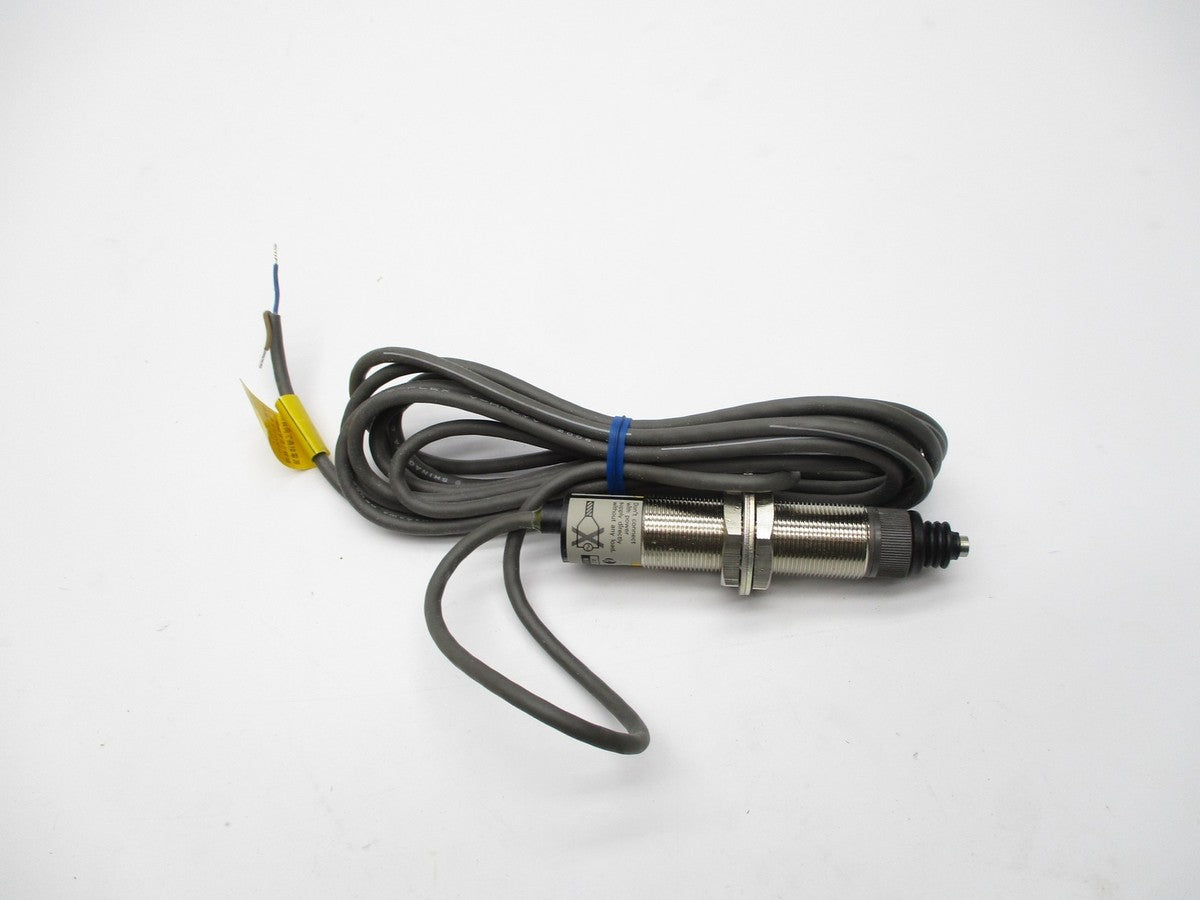

Omron D5C-1AP0 Capacitive Touch Switch with Plunger Actuator
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D5C-1AP0
Description
Omron D5C-1AP0 is a D5C series capacitive touch switch with a stainless-steel plunger actuator and a 100 to 240 VAC power supply. It is designed for reliable touch and position detection in industrial equipment, with a slim cylindrical construction and a response time of up to 8 ms for AC models.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | D5C-1AP0 |
| Subcategory | Capacitive Touch Switches |
| Product Series | D5C |
| Actuator Type | Plunger |
| Power Supply | 100 to 240 VAC |
| Allowable Operating Voltage | 45 to 264 VAC |
| Rated Frequency | 50/60 Hz |
| Protection Rating | IP67 equivalent |
| Sensitivity Setting Range | 30 to 100 pF |
| Response Time | 8 ms max. |
| Output Current | 200 mA max. resistive load |
| Plunger Overtravel | 3.5 mm max. |
| Operating Temperature | -25°C to +70°C |
| Humidity | 35% to 95% RH |
| Mechanical Durability | 10,000,000 operations min. |
| Cable | 3 m |
| Weight | 0.265 lb |
Information About D5C-1AP0
The D5C-1AP0 is an Omron D5C capacitive touch switch configured with a plunger actuator for applications requiring precise physical contact detection. The model operates from 100 to 240 VAC and uses a stainless-steel plunger with a maximum overtravel of 3.5 mm. The D5C series has an IP67-equivalent protection rating, a mechanical durability of at least 10 million operations, and an output current capacity of up to 200 mA with a resistive load. Omron discontinued the D5C series in September 2023, making the D5C-1AP0 primarily relevant for replacement, maintenance, and existing equipment applications.
Key Features:
- Capacitive Touch Detection: Detects physical contact with a very slight touch, making it suitable for industrial touch and position sensing.
- Plunger Actuator: Uses a stainless-steel plunger designed for applications requiring controlled and repeatable contact.
- AC Power Supply: Operates from 100 to 240 VAC, with an allowable operating range of 45 to 264 VAC.
- High Mechanical Durability: Rated for at least 10 million operations when operated within the specified overtravel conditions.
- IP67-Equivalent Protection: Provides protection suitable for demanding industrial environments.
- Fast Response: The AC version has a maximum response time of 8 ms.
- 200 mA Output Capacity: Supports an output current of up to 200 mA with a resistive load.
- Wide Operating Temperature: Designed to operate from -25°C to +70°C without icing.
The D5C-1AP0 delivers the reliability and precision required for industrial touch detection, position sensing, machine control, and replacement applications.
