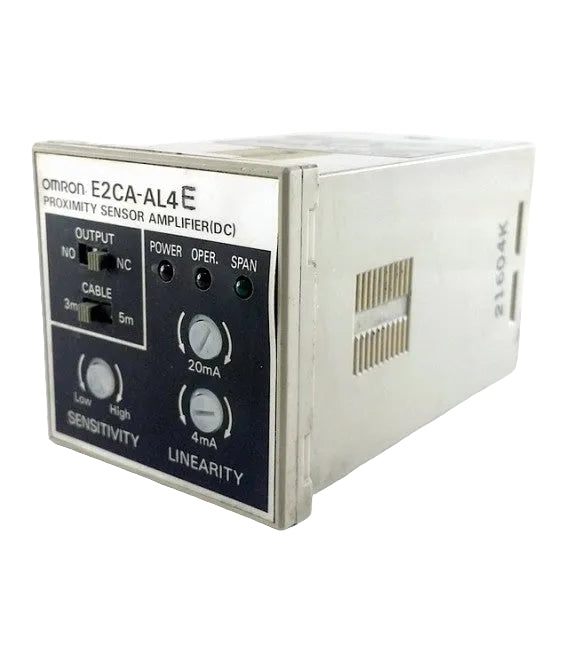

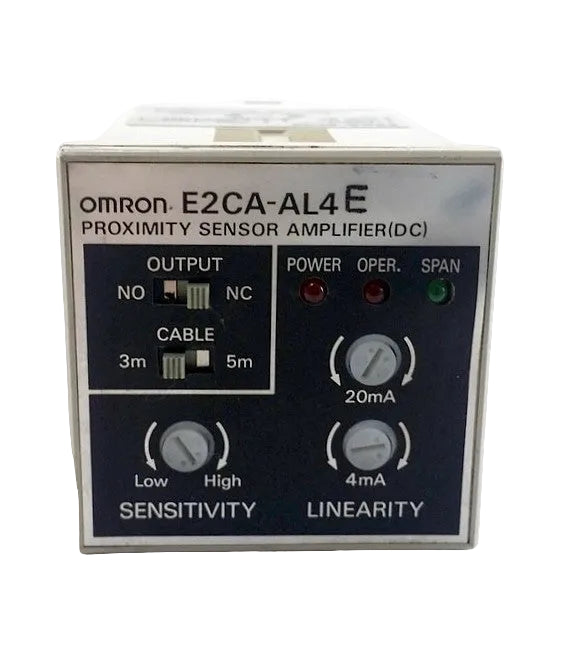

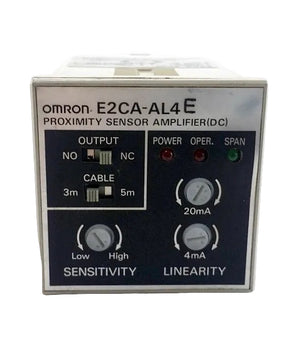

Omron E2CA-AL4E Linear Proximity Sensor Amplifier for E2CA-X5A Sensors
- Regular price
- $479.00
- Sale price
- $479.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E2CA-AL4E
Description
The Omron E2CA‑AL4E is a compact amplifier unit designed for use with the E2CA series M18 inductive proximity sensors, converting their linear output into a 4–20 mA signal. Ideal for precise metal detection applications, it plugs directly into the sensor and supports both AC and DC power supplies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors |
| Part Number | E2CA-AL4E |
| Subcategory | Proximity Sensor Amplifier |
| Series | E2CA Linear Proximity Sensor |
| Compatible Sensor | E2CA-X5A |
| Supply Voltage | 12–24 VDC (10–30 VDC allowable) |
| Current Consumption | 70 mA maximum |
| Analog Output | 4–20 mA |
| Analog Load Resistance | 0–300 Ω |
| Switching Output | Transistor, photocoupler, 100 mA max, 40 VDC max |
| Response Frequency | 5 kHz (linear), 350 Hz (switching) |
| Detection Range | 1–5 mm |
| Operating Temperature | -10°C to +55°C |
| Protection Rating | IP40 (amplifier) |
| Connection Type | Terminal block |
| Weight | Approximately 140 g (0.31 lb) |
Information About E2CA-AL4E
The E2CA-AL4E is a compact proximity sensor amplifier from Omron’s E2CA series, designed to convert analog sensing signals from compatible inductive sensors into a linear 4–20 mA current output. Ideal for high-resolution metal detection and position monitoring, the amplifier offers stable, noise-resistant operation in a panel-mount format. Though now obsolete, it remains available through surplus distributors and continues to support legacy sensor applications in industrial automation.
Key Features:
- Omron Engineered: Designed as part of Omron’s E2CA linear sensing system for precision analog proximity detection.
- Linear Output: Delivers a standard 4–20 mA current output signal proportional to the detected distance, suitable for PLCs and analog input devices.
- Compatible Sensors: Pairs with E2CA M18 inductive sensors such as the E2CA-X5A and X5M for accurate metal detection in the 3–5 mm range.

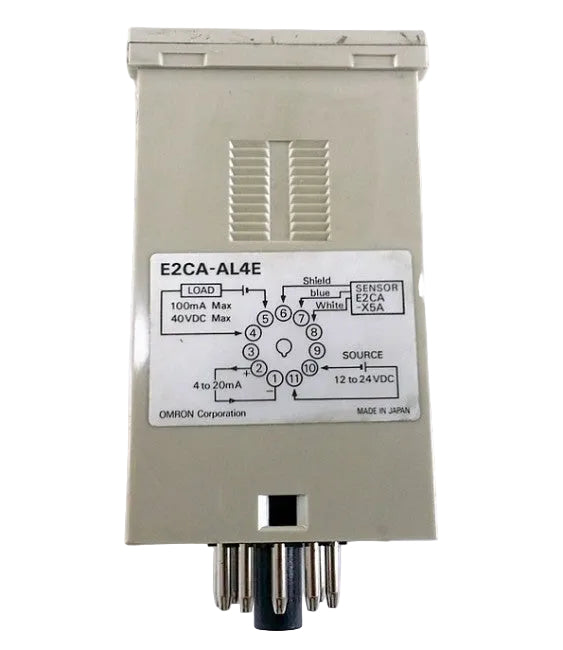

- Panel Mount Design: Easily installs in control cabinets using an 11-pin socket base, simplifying wiring and maintenance.
- Standard Amplifier Type: Offers a straightforward and robust interface with stable signal conversion and response up to 5 kHz.
- Power Supply: Operates on 10–30 VDC with a max current draw of 70 mA, compatible with most industrial low-voltage systems.
- Operating Temperature: Rated for –10 °C to +55 °C, ensuring stable operation in typical factory environments.
- Discontinued Model: No longer in production but still accessible through aftermarket and surplus suppliers for legacy systems.
The E2CA-AL4E remains a reliable and cost-effective amplifier for linear proximity sensing applications. Its precise analog output and compatibility with Omron’s E2CA sensors make it a dependable option for retrofits, legacy system maintenance, and signal conversion in compact industrial setups.
