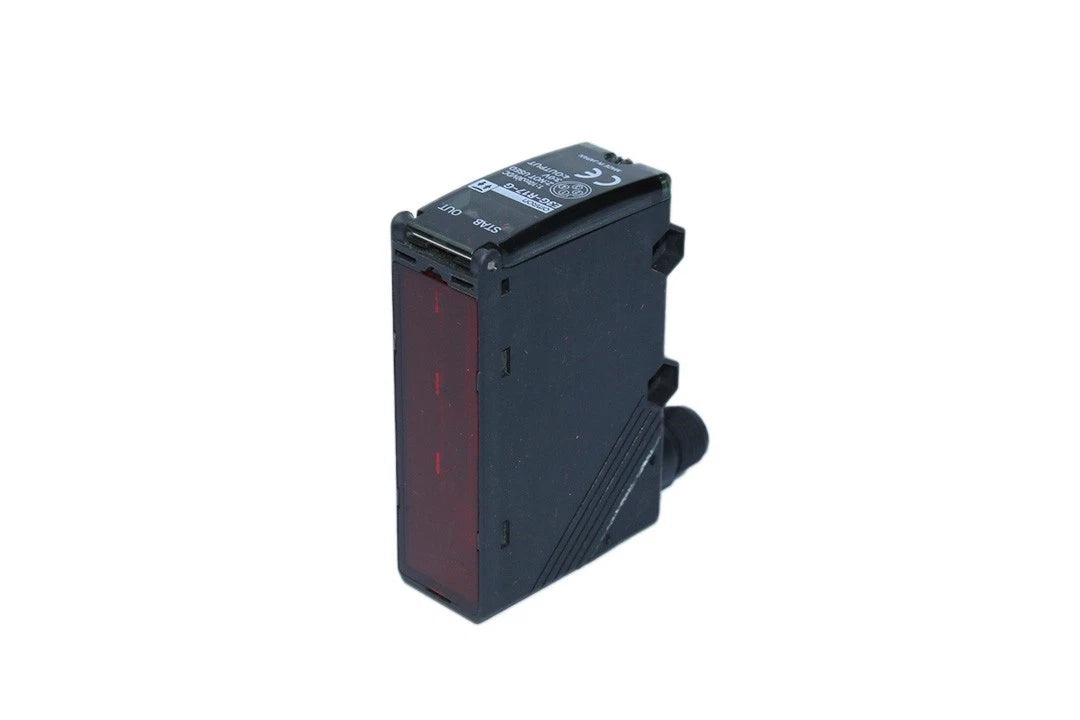

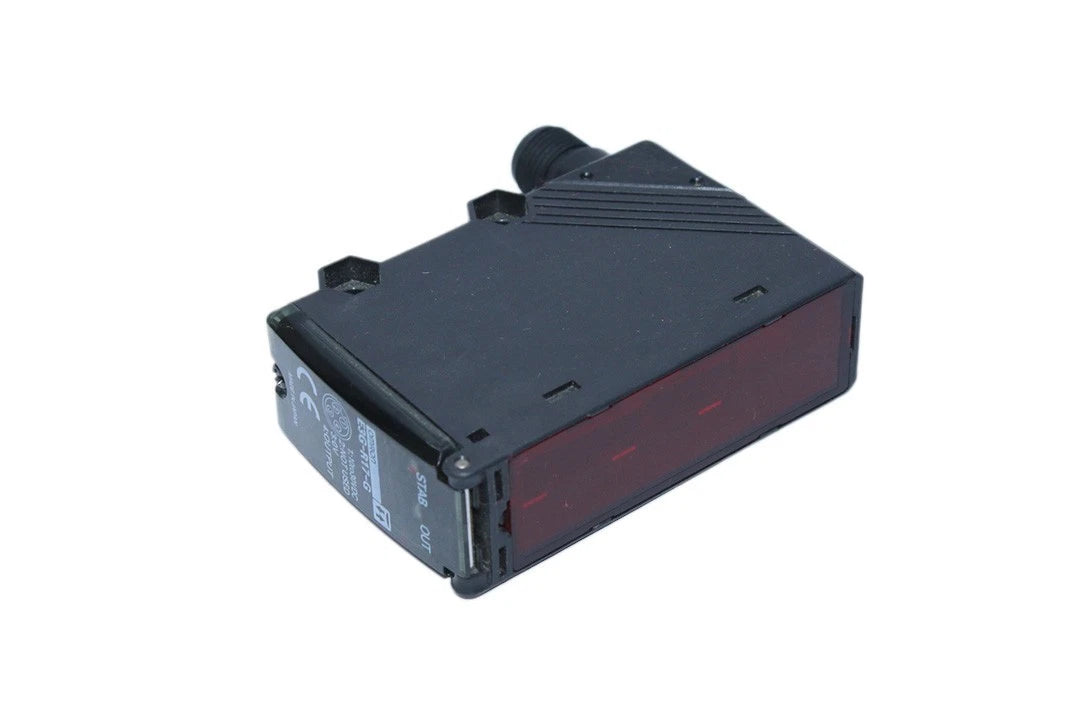

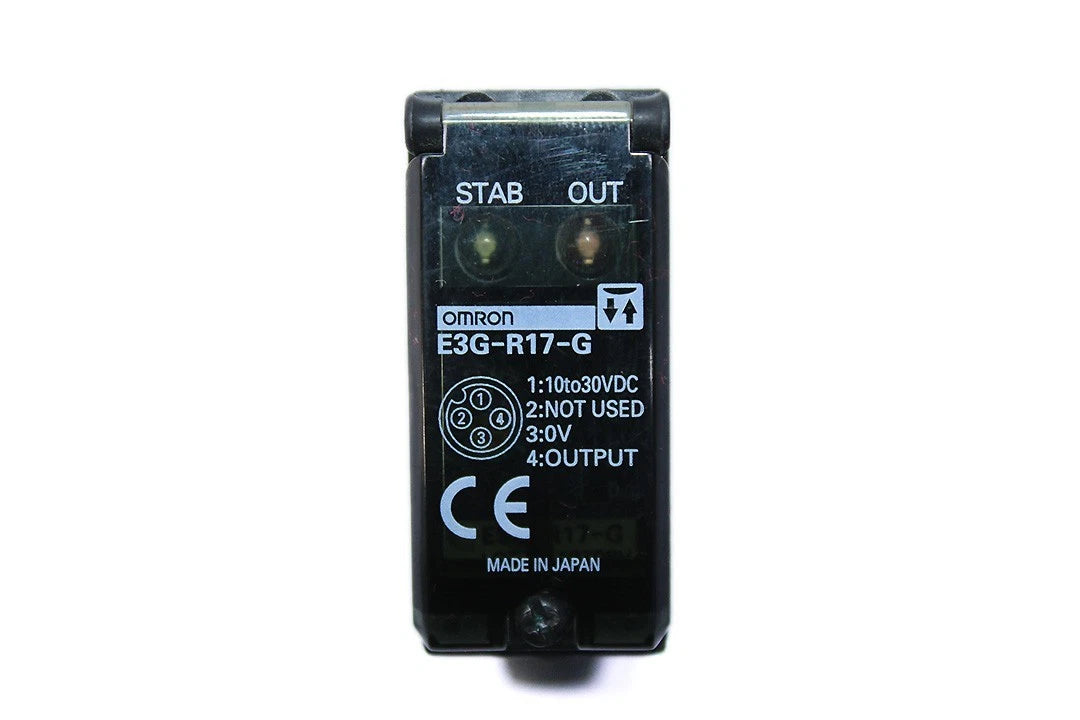

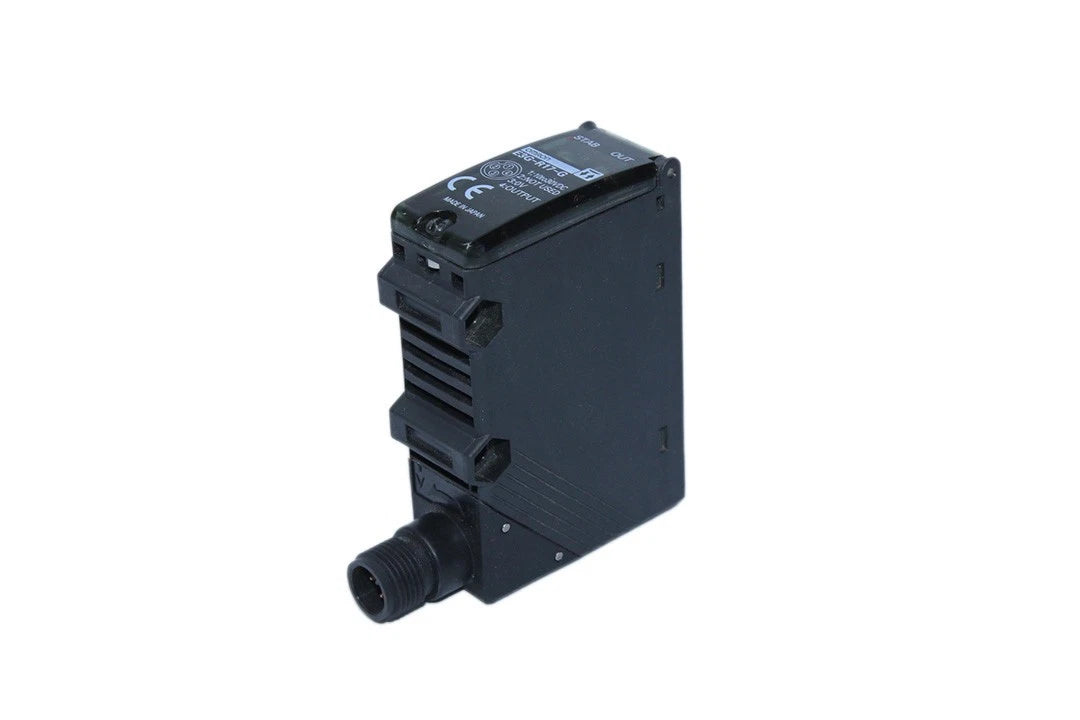

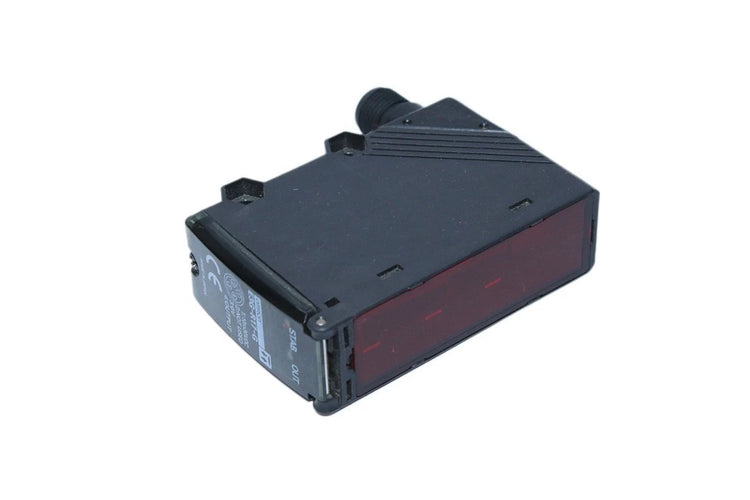

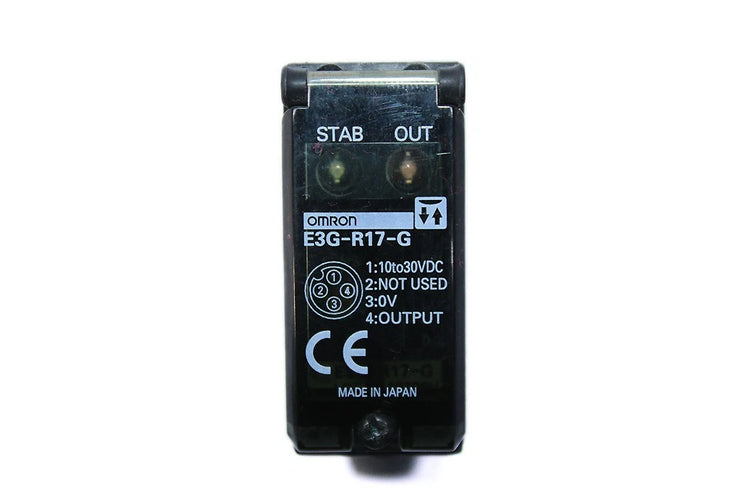

Omron E3G-R17-G Retroreflective Photoelectric Sensor 10m Range NPN/PNP Output
- Regular price
- $4,579.00
- Sale price
- $4,579.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3G-R17-G
Description
The Omron E3G-R17-G is a retroreflective photoelectric sensor designed for long-distance object detection in industrial automation systems. It provides a sensing range of up to 10 meters and operates on a 10–30 VDC power supply with selectable NPN or PNP output configuration. This sensor is commonly used for presence detection, positioning, and process monitoring in manufacturing and conveyor systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E3G-R17-G |
| Subcategory | Photoelectric |
| Series | E3G Series |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Retroreflective |
| Sensing Distance | Up to 10 m |
| Light Source | Red LED (650 nm) |
| Output Configuration | NPN/PNP selectable, Light-ON/Dark-ON |
| Supply Voltage | 10–30 VDC |
| Response Time | 1 ms |

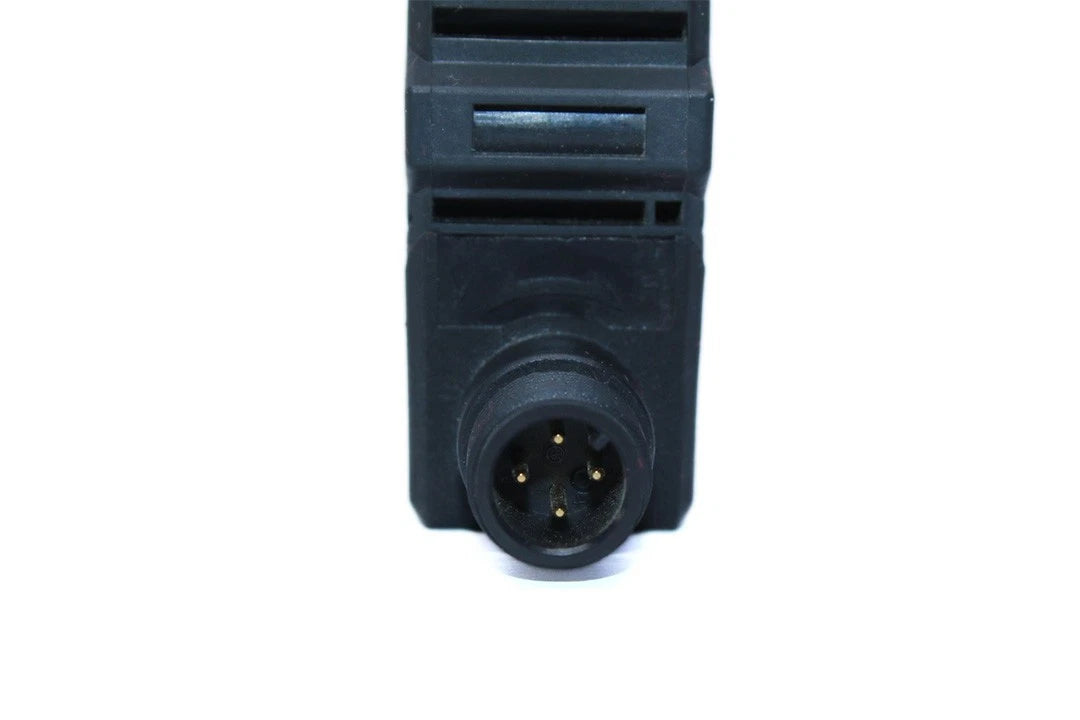

| Connection Method | Connector (M12) |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +55°C |
| Weight | 0.15 lbs |
Information About E3G-R17-G
The E3G-R17-G is part of the Omron E3G series of industrial photoelectric sensors known for long-range detection and rugged performance. It uses a retroreflective sensing method, where a red LED light beam is reflected from an external reflector and interruptions in the beam are detected as objects pass through the sensing area. The device includes selectable Light-ON or Dark-ON operating modes and supports both NPN and PNP output configurations for compatibility with various control systems. With a durable IP67-rated housing and adjustable sensitivity, the sensor is designed to perform reliably in demanding industrial environments.
Key Features:
-
Retroreflective Photoelectric Detection: Uses a reflector-based sensing method for reliable object detection.
-
Long Sensing Distance: Detects objects at distances up to 10 meters depending on installation conditions.
-
Dual Output Configuration: Selectable NPN or PNP outputs for flexible integration with control systems.
-
Light-ON / Dark-ON Modes: Allows configuration based on application detection requirements.
-
Red LED Light Source: Utilizes a 650 nm LED for stable and accurate sensing performance.
-
Fast Response Time: Provides rapid detection with approximately 1 ms response speed.
-
Adjustable Sensitivity: Single-turn adjustment allows precise tuning of detection parameters.
-
Industrial Protection Rating: IP67-rated housing protects against dust and water ingress.
The E3G-R17-G delivers the reliability and precision required for long-range object detection in industrial automation and conveyor monitoring systems.
