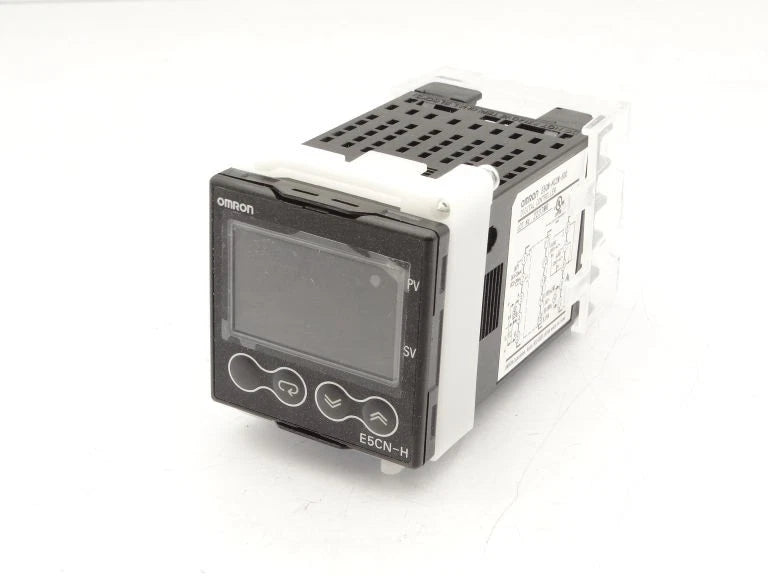

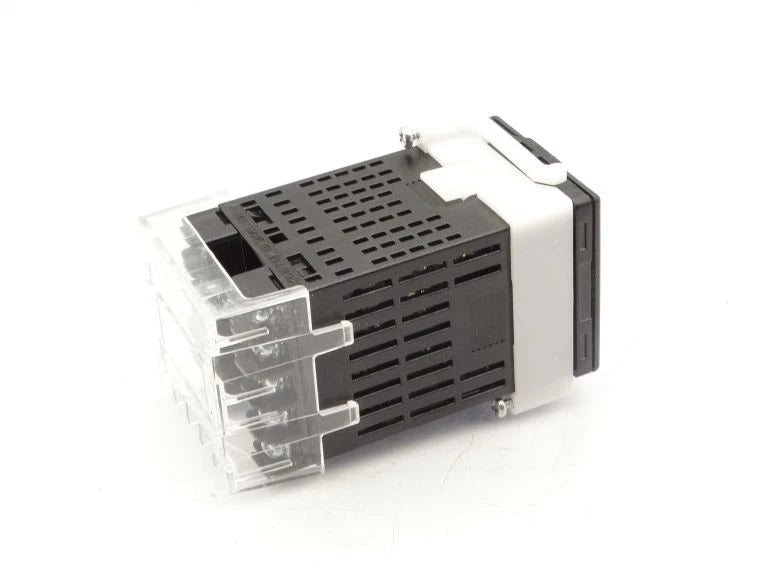

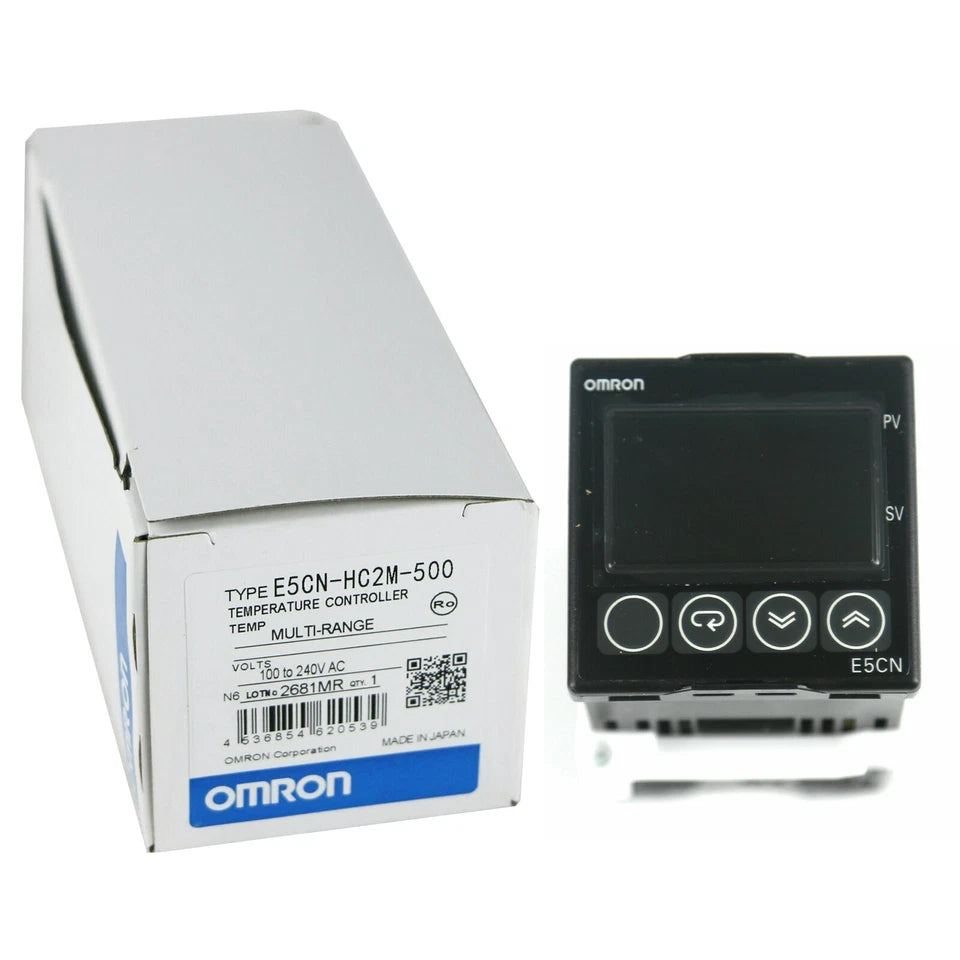

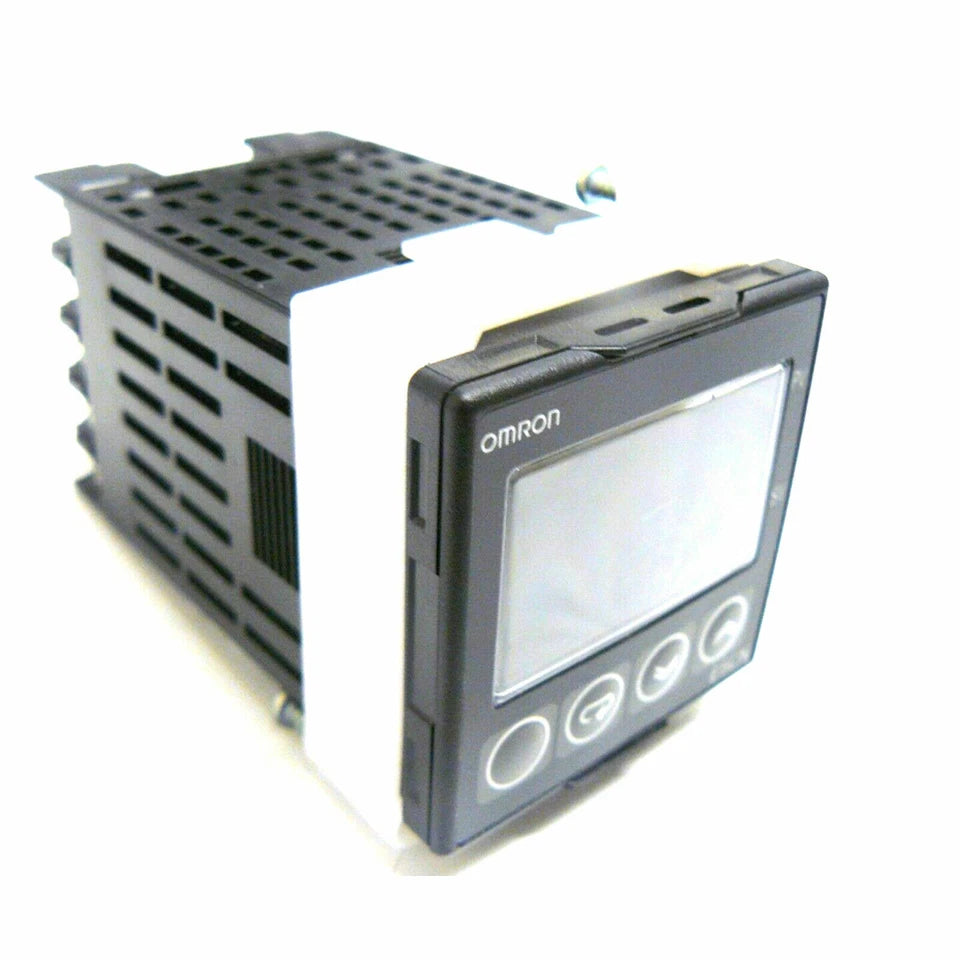

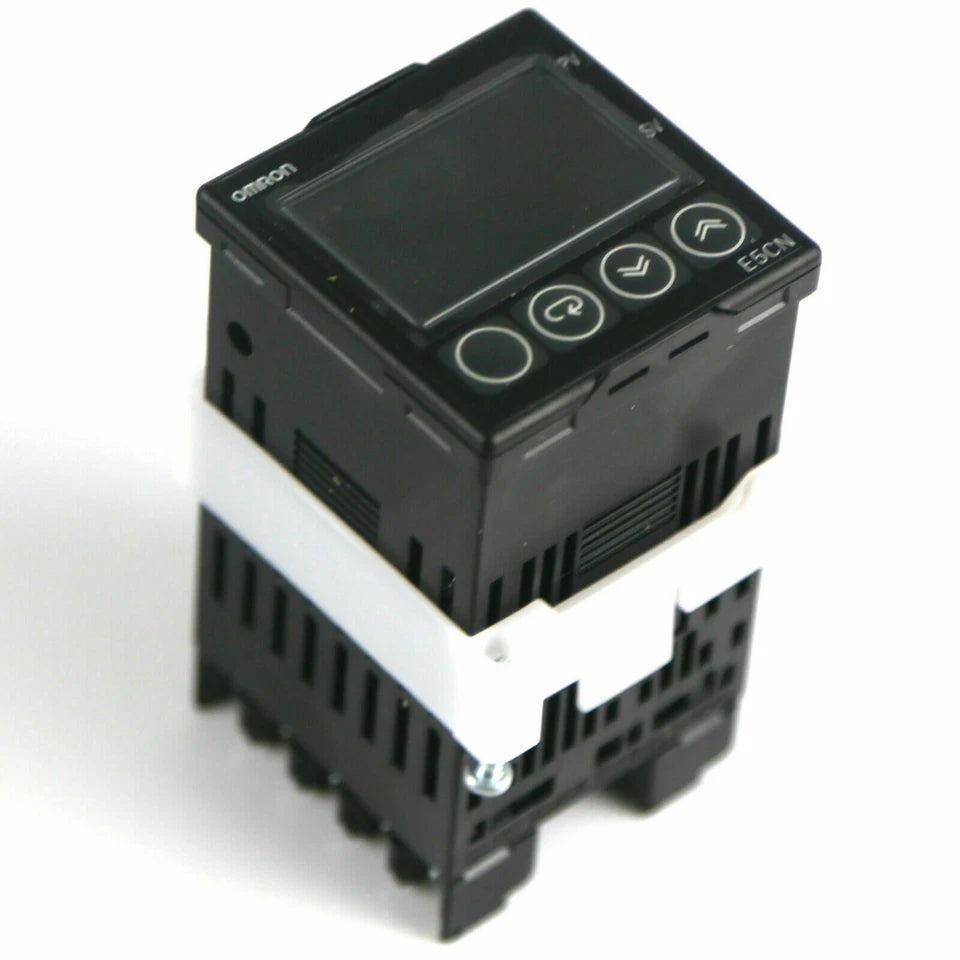

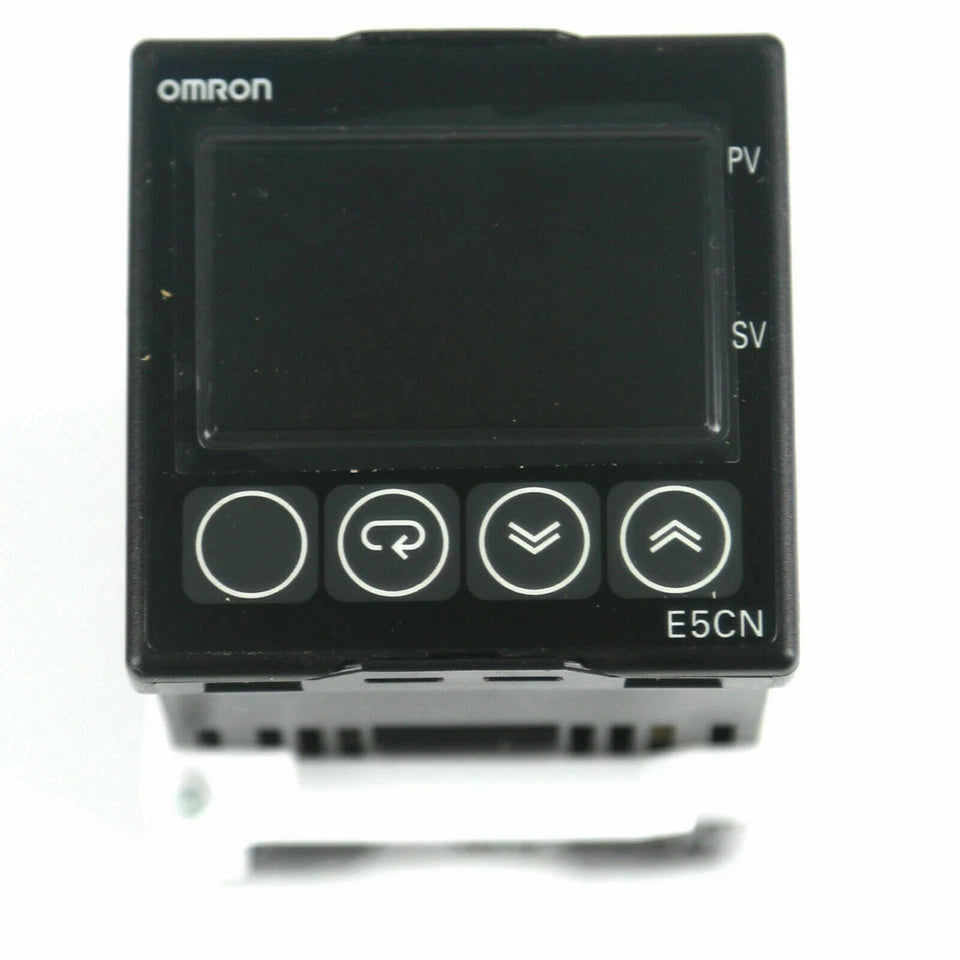

Omron E5CN-HC2M-500 Digital Temperature Controller 1/16 DIN PID Process Controller 100-240VAC
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E5CN-HC2M-500
Description
The Omron E5CN-HC2M-500 is a compact digital temperature controller designed for precise thermal process regulation in industrial automation systems. It supports PID and ON/OFF control methods and accepts multiple temperature sensor inputs including thermocouples and RTDs. This controller provides accurate temperature monitoring and control for equipment such as heaters, furnaces, and industrial processing systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Controllers |
| Part Number | E5CN-HC2M-500 |
| Subcategory | Temperature Controller |
| Series | E5CN |
| Controller Type | Digital temperature controller |
| Control Method | PID, ON/OFF, Self-tuning, Auto-tuning |
| Control Loops | 1 |
| Input Types | Thermocouples, RTD, analog voltage/current |
| Temperature Range | -200°C to 2300°C |
| Supply Voltage | 100–240 VAC |
| Alarm Outputs | 2 |
| Display Type | Dual-color LCD |
| Mounting Type | Panel mount |
| Ingress Protection | IP66 (front panel) |
| Dimensions | 48 × 48 × 96 mm |
| Operating Temperature | -10°C to 55°C |
| Weight | 0.33 lbs |
Information About E5CN-HC2M-500
The E5CN-HC2M-500 is part of the Omron E5CN series of advanced temperature controllers built in a standard 1/16 DIN panel-mount format. It supports a wide variety of temperature sensor inputs including thermocouples, RTDs, and linear analog signals, allowing flexible integration into different industrial control environments. The unit features PID regulation with autotuning and self-tuning capabilities to maintain stable temperature control under changing process conditions. A dual-color LCD display, screw terminal connections, and optional communication modules make it suitable for modern industrial control panels and process automation systems.
Key Features:
-
Multi-Sensor Input Compatibility: Supports thermocouples, RTDs, and linear analog signals for flexible temperature measurement.
-
Advanced PID Control: Provides precise temperature regulation using PID, autotuning, and self-tuning control modes.
-
Dual Output Configuration: Includes relay and linear current outputs for control and monitoring applications.
-
Wide Temperature Measurement Range: Capable of monitoring temperatures from -200°C to 2300°C depending on sensor type.
-
Dual LCD Display: Backlit dual-color display shows process values and setpoints clearly.
-
Industrial Panel Mount Design: Standard 1/16 DIN housing simplifies installation in control panels.
-
Reliable Alarm Functions: Two configurable alarm outputs allow fault notification or safety control actions.
-
Flexible Communication Options: Optional RS-485 modules enable integration with industrial networks.
The E5CN-HC2M-500 delivers the reliability and precision required for industrial temperature monitoring and control in automated process systems.
