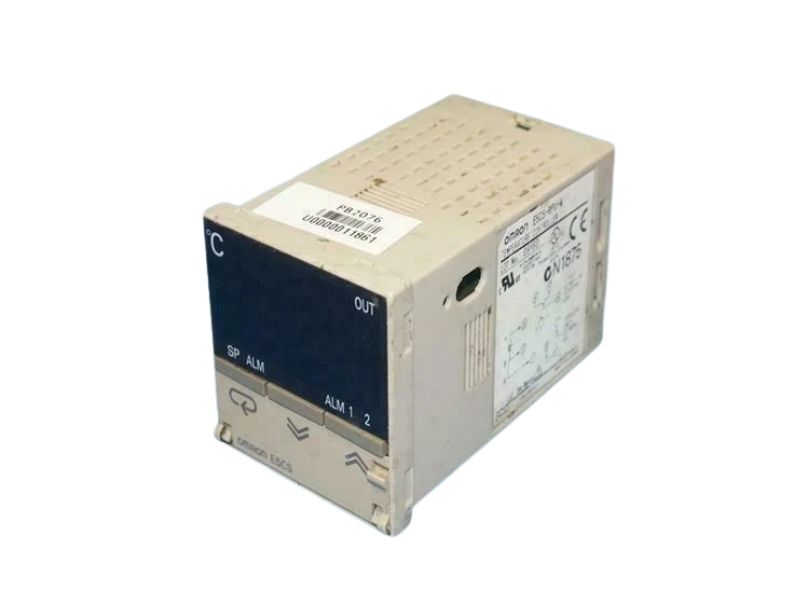

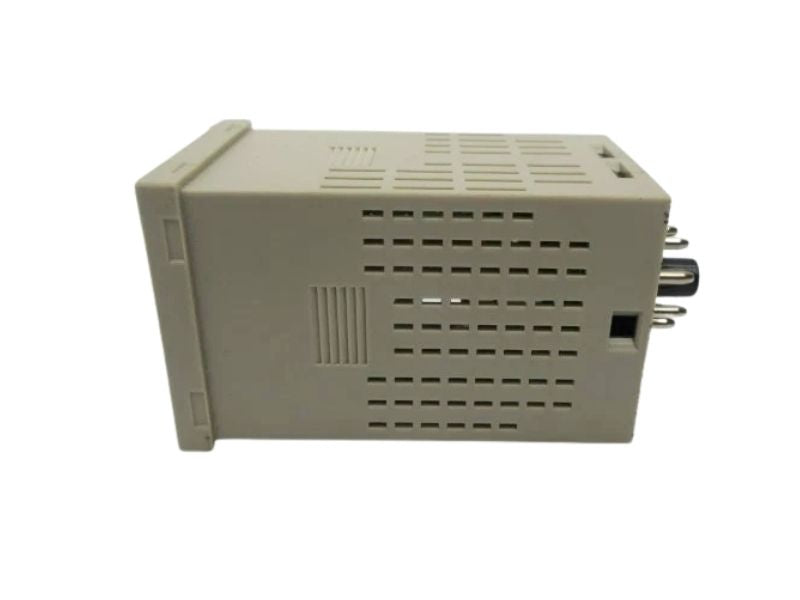

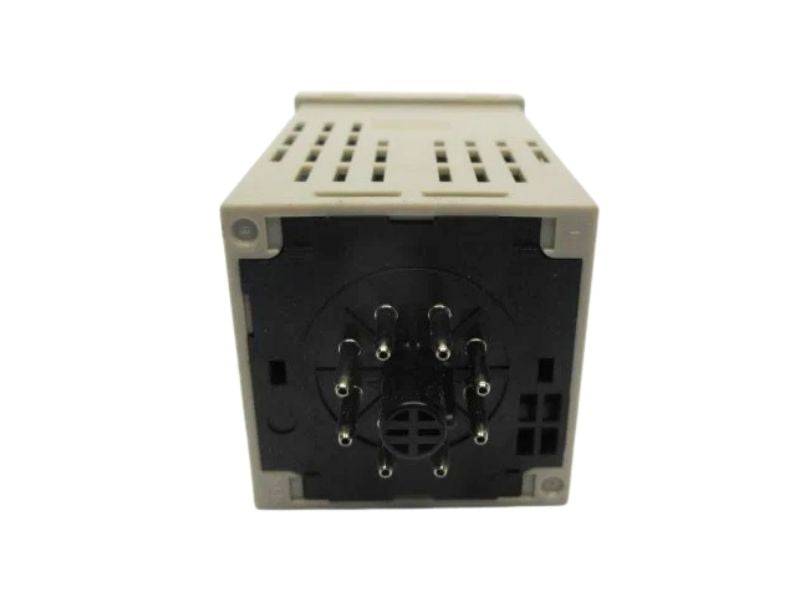

Omron E5CS-RPU-W Temperature Controller 48x48 PID Relay Output 100-240VAC
- Regular price
- $487.00
- Sale price
- $487.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E5CS-RPU-W
Description
The Omron E5CS-RPU-W is a compact temperature controller designed for precise thermal regulation in industrial applications. It supports platinum resistance thermometer inputs and provides relay output for control functions. This unit is suitable for panel-mounted systems requiring stable and accurate temperature control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Controls & Indicators |
| Part Number | E5CS-RPU-W |
| Subcategory | Temperature/Process Control |
| Device Type | Temperature Controller |
| Series | E5CS |
| Input Type | Platinum resistance thermometer (Pt100, JPt100) |
| Control Output | Relay (SPDT, 250 VAC, 3 A) |
| Control Method | ON/OFF or PID with auto-tuning |
| Supply Voltage | 100–240 VAC (50/60 Hz) |
| Power Consumption | 5 VA |
| Display Type | 7-segment digital display |
| Sampling Period | 500 ms |
| Mounting Type | Panel Mount (Plug-in) |
| Protection Rating | IP50 (front) |
| Operating Temperature | -10°C to 55°C |
| Weight | Approx. 110 g |
Information About E5CS-RPU-W
The E5CS-RPU-W is part of Omron’s E5CS series, developed for reliable temperature control in compact form factors. It features a 48 × 48 mm DIN size and plug-in terminal design, allowing easy installation and maintenance. The controller supports Pt100 and JPt100 sensors, enabling accurate temperature measurement across various industrial processes. With ON/OFF and PID control modes, it is widely used in heating systems, ovens, and process control equipment.
Key Features:
- Compact DIN size: 48 × 48 mm design for space-efficient panel mounting
- Platinum sensor support: Compatible with Pt100 and JPt100 inputs
- Dual control modes: ON/OFF and PID control with auto-tuning capability
- Relay output: SPDT relay output for direct control of loads
- Wide voltage range: Operates on 100–240 VAC for flexible installation
- Plug-in terminals: Simplifies wiring and replacement
- Digital display: 7-segment display with deviation indicators
- Reliable performance: Designed for stable operation in industrial environments
The E5CS-RPU-W delivers the reliability and precision required for temperature regulation in industrial control systems.
