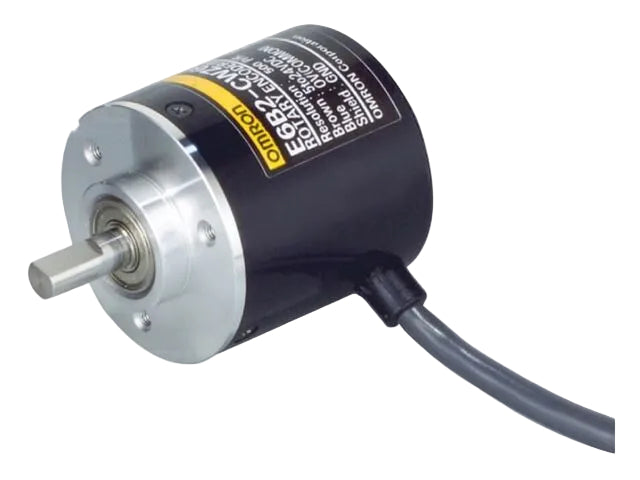

Omron E6B2-CWZ6C Rotary Encoder 1000PPR NPN 5-24VDC 40mm Incremental Encoder
- Regular price
- $647.00
- Sale price
- $647.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E6B2-CWZ6C
Description
The Omron E6B2-CWZ6C is an incremental rotary encoder designed for precise position and speed detection in industrial automation systems. It features a 40 mm diameter housing with 1000 pulses per revolution and NPN open-collector output. This encoder operates on 5 to 24 VDC and provides A, B, and Z phase signals for accurate motion feedback.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Business & Industrial |
| Part Number | E6B2-CWZ6C |
| Subcategory | Rotary Encoders |
| Series | E6B2 |
| Encoder Type | Incremental |
| Resolution | 1000 P/R |
| Output Type | NPN Open Collector |
| Output Phases | A, B, Z |
| Supply Voltage | 5–24 VDC |
| Current Consumption | 80 mA max |
| Max Response Frequency | 100 kHz |
| Max Rotation Speed | 6000 rpm |
| Protection Rating | IP50 |
| Connection Method | Pre-wired Cable (2 m) |
| Housing Diameter | 40 mm |
| Operating Temperature | -10°C to 70°C |
| Weight | 0.18 kg |
Information About E6B2-CWZ6C
The E6B2-CWZ6C is part of Omron’s E6B2 series of rotary encoders, developed for reliable motion sensing in industrial environments. It uses incremental encoding to generate pulse signals corresponding to shaft rotation, enabling precise control of speed and position. The encoder includes pre-wired connectivity with a 2-meter cable for simplified installation. Its compact design and durable construction make it suitable for use in machinery such as conveyors, packaging equipment, and motor control systems.
Key Features:
-
1000 pulses per revolution: Provides high-resolution position and speed feedback.
-
Incremental encoder design: Outputs A, B, and Z phase signals for motion control applications.
-
NPN open-collector output: Ensures compatibility with a wide range of control systems.
-
Wide voltage range: Operates on 5 to 24 VDC for flexible integration.
-
Compact 40 mm diameter housing: Suitable for space-constrained installations.
-
High response frequency: Supports up to 100 kHz for fast signal processing.
-
Pre-wired 2 m cable: Simplifies installation and reduces wiring effort.
-
Durable construction: Designed for industrial environments with reliable performance.
The E6B2-CWZ6C delivers the reliability and precision required for position and speed feedback in industrial automation systems.
