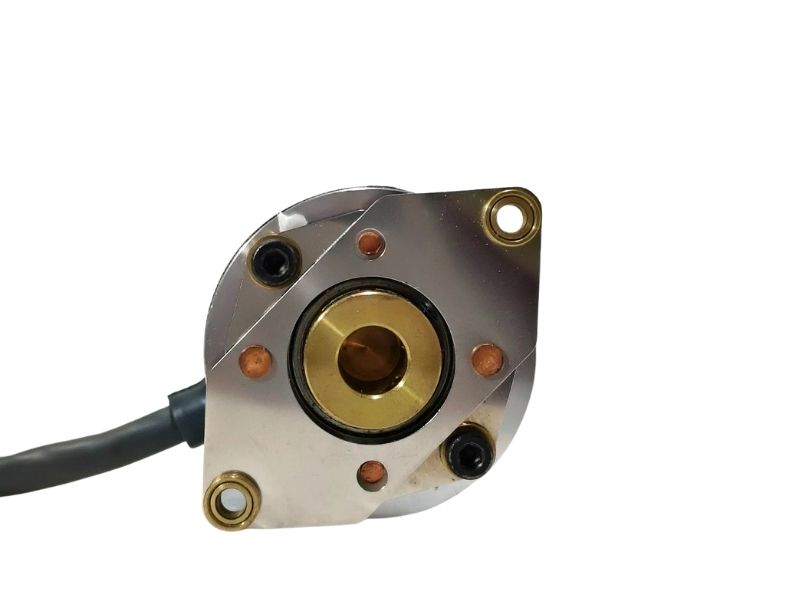

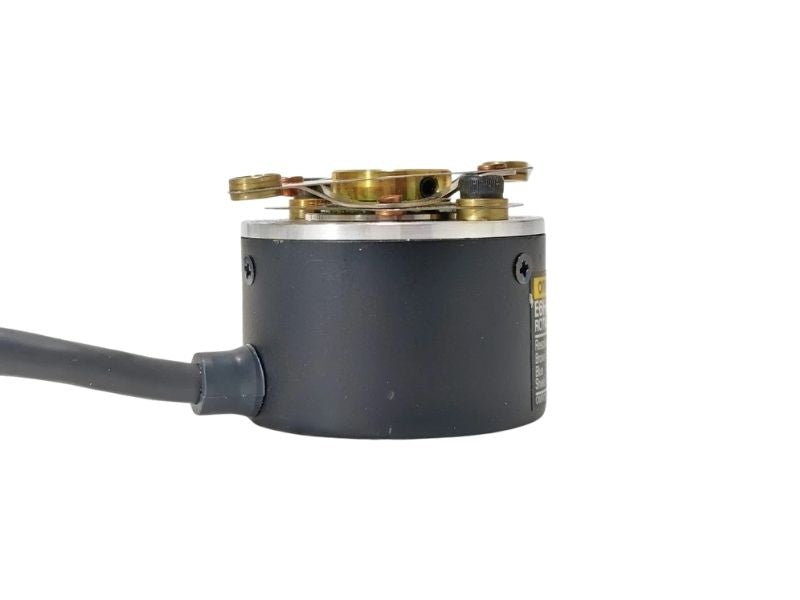

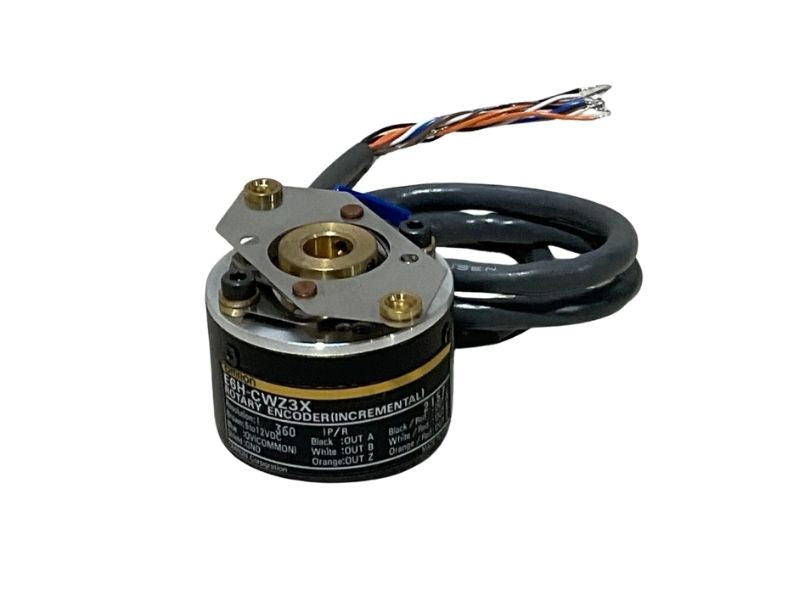

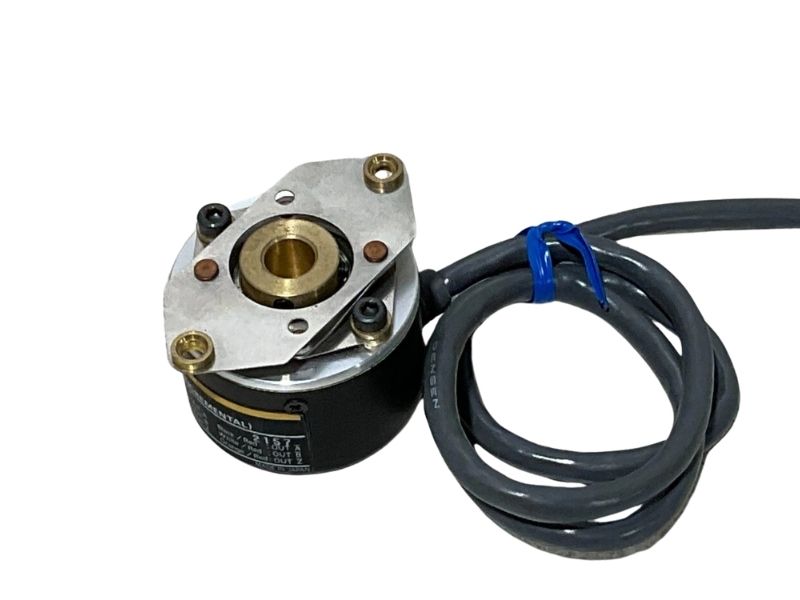

Omron E6H-CWZ3X Incremental Hollow Shaft Encoder 1024P/R Line Driver
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E6H-CWZ3X
Description
The Omron E6H-CWZ3X is an incremental optical rotary encoder designed for precise position and speed feedback in industrial automation systems. It features a 40 mm diameter hollow-shaft design and provides high-resolution output with up to 1024 pulses per revolution. The encoder operates with a 5 to 12 VDC power supply and delivers line driver outputs for reliable signal transmission in motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E6H-CWZ3X |
| Subcategory | Encoder/Resolver |
| Series | E6H Series |
| Encoder Type | Optical Incremental Encoder |
| Output Type | Line Driver (Differential) |
| Output Signals | A, -A, B, -B, Z, -Z |
| Resolution | 1024 Pulses per Revolution |
| Power Supply | 5 – 12 VDC |
| Current Consumption | 150 mA max |
| Maximum Response Frequency | 100 kHz |
| Maximum Rotation Speed | 10,000 RPM |
| Shaft Type | Hollow Shaft |
| Shaft Diameter | 8 mm |
| Mounting Type | Chassis / Motor Mount |
| Protection Rating | IP50 |
| Operating Temperature | -10°C to 70°C |
| Connection Method | Pre-wired cable (0.5 m) |
| Weight | Approx. 120 g |
Information About E6H-CWZ3X
The E6H-CWZ3X belongs to the Omron E6H series of industrial rotary encoders used for motion feedback in automation equipment. This incremental encoder detects rotational movement and converts it into electrical signals that can be interpreted by control systems such as PLCs, servo drives, or motion controllers. The device provides quadrature outputs (A, B) along with complementary signals and an index pulse (Z) for accurate position detection and synchronization. Its hollow-shaft construction allows direct mounting onto motor shafts or rotating equipment, making installation simple in various industrial machinery.
Key Features:
-
Incremental Optical Encoder: Designed for position and speed detection in automation systems.
-
High Resolution: Provides 1024 pulses per revolution for precise motion feedback.
-
Hollow-Shaft Design: 8 mm open center shaft allows direct mounting on motor shafts.
-
Line Driver Output: Differential signals ensure reliable data transmission.
-
Quadrature Output Signals: A, B, and Z channels with complementary outputs for accurate position tracking.
-
Wide Speed Capability: Supports rotation speeds up to 10,000 RPM.
-
Compact 40 mm Diameter Housing: Suitable for space-limited industrial installations.
-
Durable Industrial Construction: Designed for use in machine automation and motion control environments.
The E6H-CWZ3X provides stable and precise motion feedback for motor control, robotics, and automated machinery.
