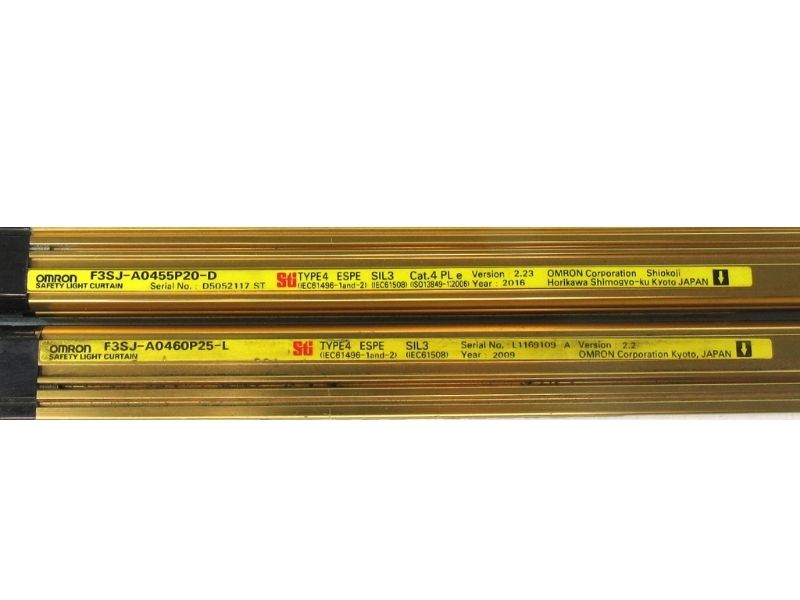

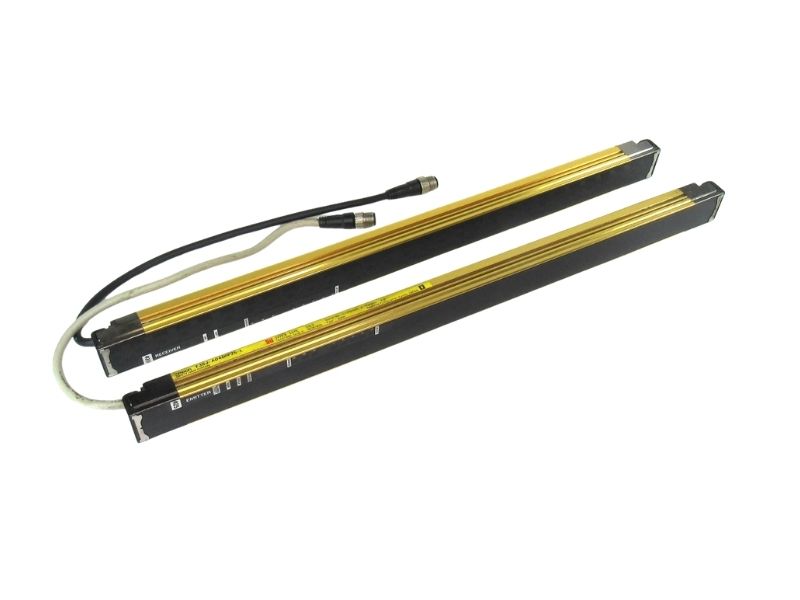

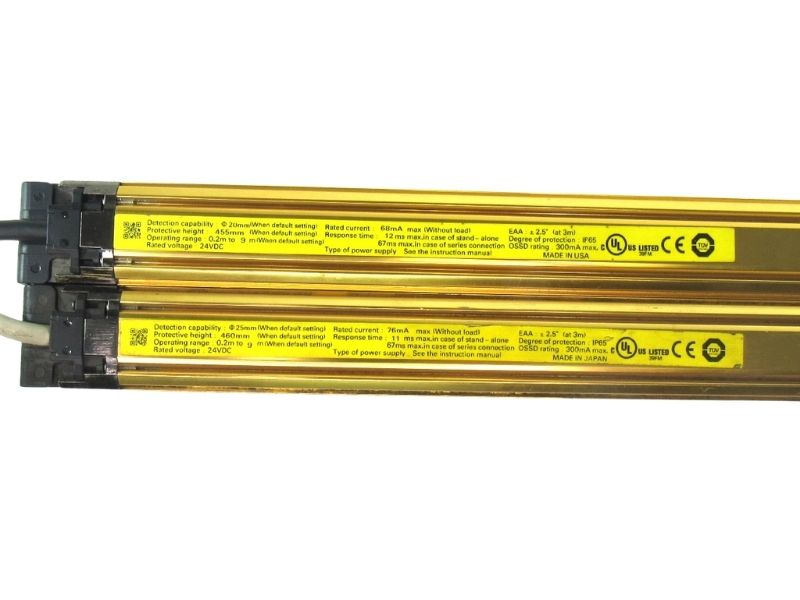

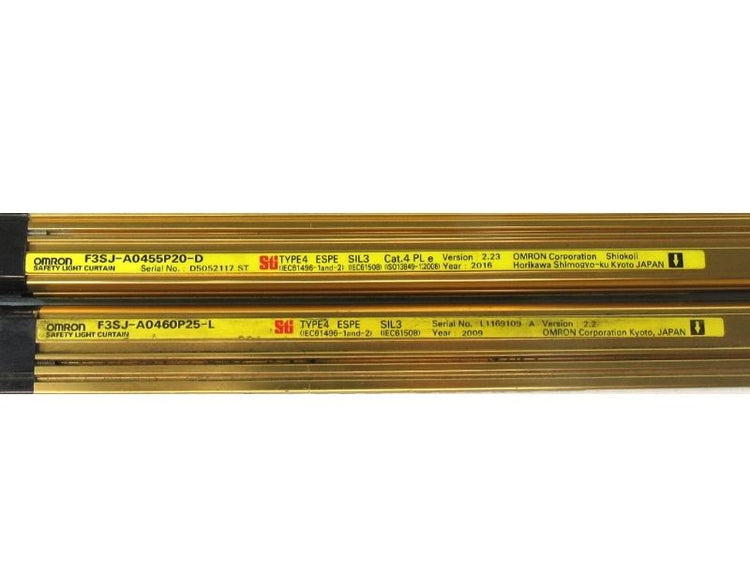

Omron F3SJ-A0455P20 Safety Light Curtain 455mm 30 Beam 20mm Detection IP65
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F3SJ-A0455P20
Description
The Omron F3SJ-A0455P20 is a safety light curtain designed for hand protection in industrial machinery and automated systems. It provides a protective height of 455 mm with 30 beams and a 20 mm detection capability. This device is used to detect intrusion into hazardous zones and ensure operator safety.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Systems |
| Part Number | F3SJ-A0455P20 |
| Subcategory | Safety Light Curtains |
| Series | F3SJ-A |
| Detection Capability | 20 mm |
| Protective Height | 455 mm |
| Number of Beams | 30 |
| Beam Pitch | 15 mm |
| Operating Range | 0.2 to 9 m |
| Light Source | Infrared LED (870 nm) |
| Response Time | 12 ms (ON→OFF) |
| Output Type | PNP (OSSD) |
| Supply Voltage | 24 VDC |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 55°C |
| Connection Type | M12 Connector (8-pin) |
| Weight | 0.9 kg |
Information About F3SJ-A0455P20
The F3SJ-A0455P20 is part of Omron’s F3SJ-A series of safety light curtains, developed for advanced machine safeguarding applications. It uses infrared LED technology to create a protective sensing field that detects object interruption. The unit supports safety functions such as muting, blanking, and restart interlock for flexible integration into safety systems. Its rugged construction with IP65 protection allows reliable operation in industrial environments with dust and water exposure.
Key Features:
- 20 mm detection capability: Designed for hand protection applications.
- 455 mm protective height: Covers a defined safety area with multiple beams.
- 30-beam configuration: Provides accurate and consistent detection across the sensing field.
- Infrared LED sensing: Ensures reliable object detection using 870 nm light source.
- High-speed response: 12 ms ON→OFF response time for rapid safety reaction.
- Advanced safety functions: Supports muting, blanking, and interlock features.
- PNP safety outputs: Dual OSSD outputs for integration with safety circuits.
- IP65 protection rating: Suitable for harsh industrial environments.
The F3SJ-A0455P20 delivers the reliability and precision required for machine safeguarding and operator protection in industrial automation systems.
