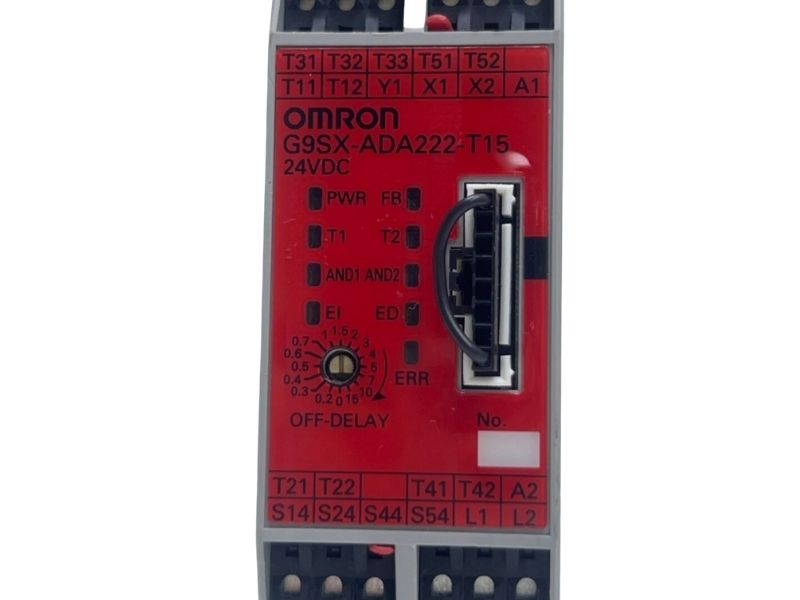

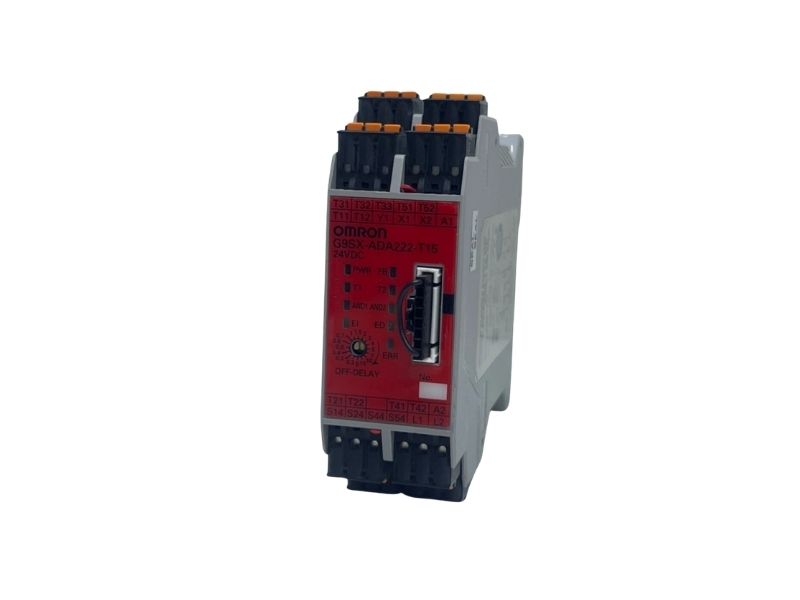

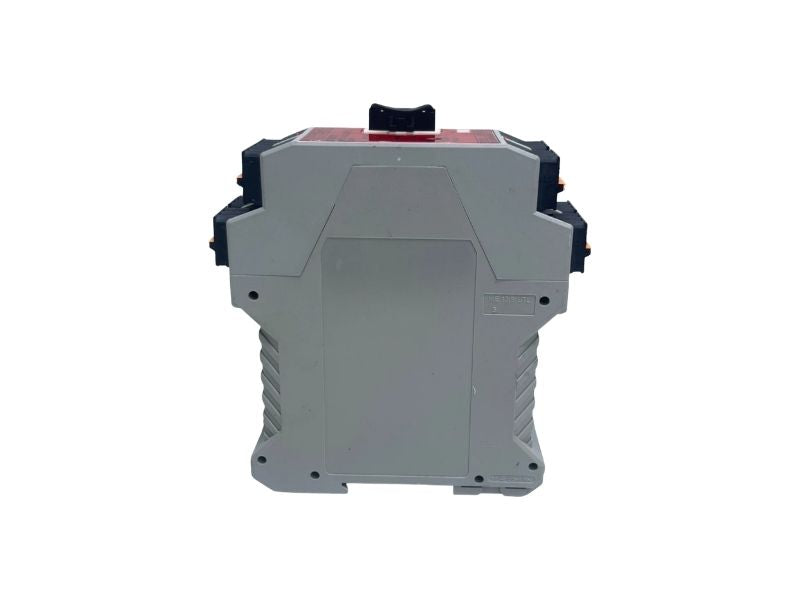

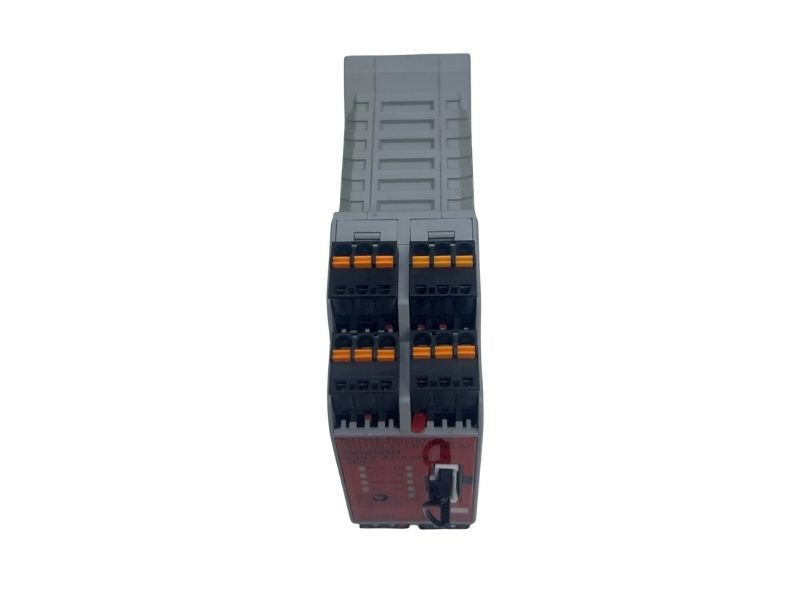

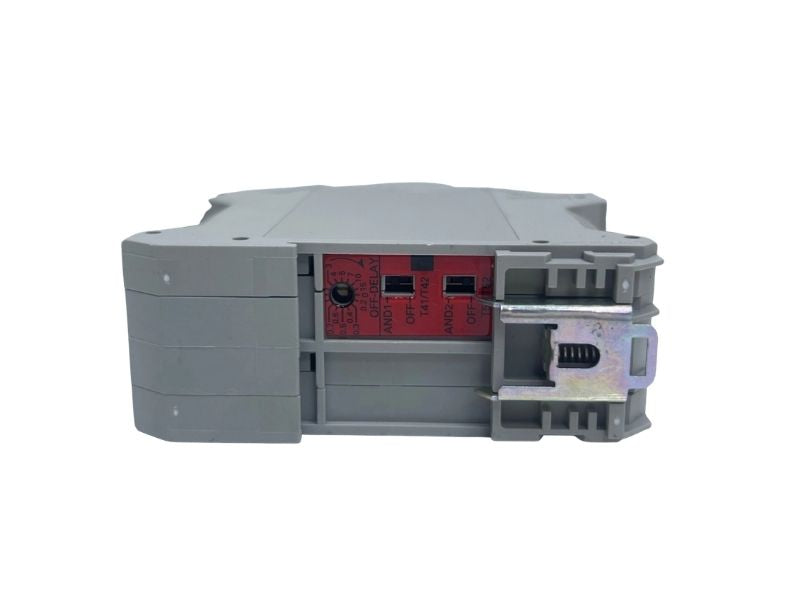

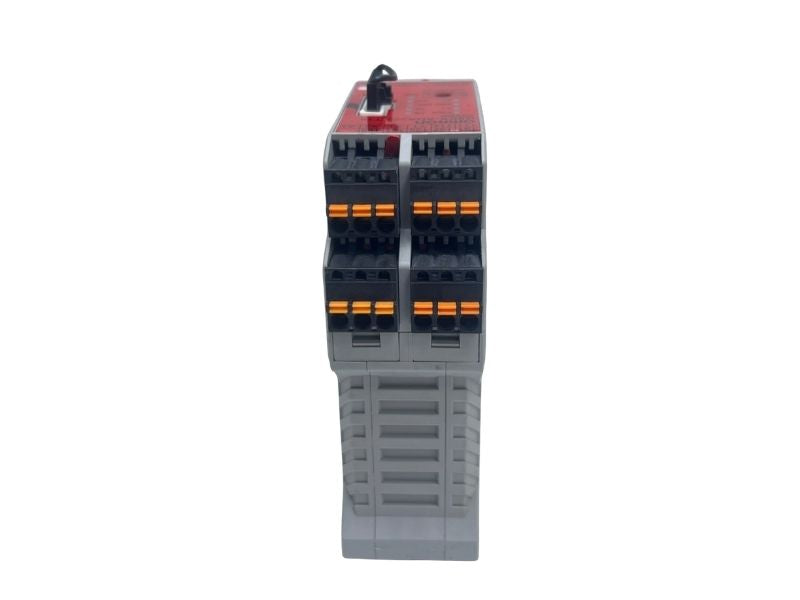

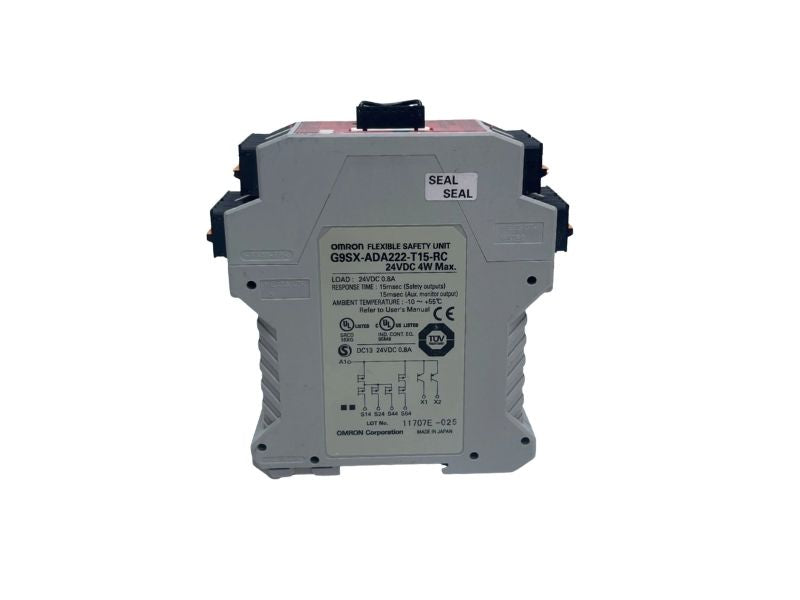

Omron G9SX-ADA222-T15-RC Safety Controller 24VDC DIN Rail SIL3 PLe
- Regular price
- $798.00
- Sale price
- $798.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: G9SX-ADA222-T15-RC
Description
The Omron G9SX-ADA222-T15-RC is a flexible safety controller designed for monitoring and controlling safety circuits in industrial automation systems. It operates on a 24 VDC supply and supports advanced safety functions with configurable delayed and instantaneous outputs. This unit is commonly used in machinery safety applications requiring high-performance protection and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | G9SX-ADA222-T15-RC |
| Subcategory | Safety Controllers |
| Product Type | Flexible Safety Unit |
| Series | G9SX |
| Supply Voltage | 24 V DC |
| Safety Category | Category 4, PLe, SIL3 |
| Controller Type | General Purpose Safety Controller |
| Safety Inputs | 2 Digital |
| Instantaneous Safety Outputs | 2 Solid State Outputs |
| OFF-Delayed Safety Outputs | 2 Solid State Outputs |
| Auxiliary Outputs | 2 PNP Transistor Outputs |
| Maximum OFF-Delay Time | 15 Seconds |
| Mounting Type | DIN Rail |
| Termination Style | Spring Terminal |
| Power Consumption | 4 W Max |
| Operating Temperature | -10°C to +55°C |
| Weight | 0.44 lbs |
Information About G9SX-ADA222-T15-RC
The G9SX-ADA222-T15-RC is part of Omron’s G9SX series of machine safety controllers, engineered for Category 4, PLe, and SIL3 safety applications. It features advanced logic processing with configurable OFF-delay timing up to 15 seconds for controlled machine stopping functions. The controller includes solid-state safety outputs and auxiliary outputs for integration into complex safety systems. Designed for DIN rail mounting, it uses spring-cage terminals for secure wiring and reliable operation in industrial environments.
Key Features:
- Advanced Safety Controller: Designed for industrial machine safety systems
- Category 4 / PLe / SIL3: Supports high-level safety compliance requirements
- Configurable OFF-Delay: Adjustable delay timing up to 15 seconds
- Solid-State Safety Outputs: Provides reliable and fast switching performance
- Auxiliary Outputs Included: Supports status monitoring and control integration
- Logical AND Functionality: Enables flexible safety logic configuration
- DIN Rail Mounting: Simplifies installation in control cabinets
- Spring-Cage Terminals: Ensures secure and vibration-resistant wiring
The G9SX-ADA222-T15-RC delivers the reliability and precision required for advanced machine safety control in industrial automation systems.
Description
The Omron G9SX-ADA222-T15-RC is a flexible safety controller designed for monitoring and controlling safety circuits in industrial automation systems. It operates on a 24 VDC supply and supports advanced safety functions with configurable delayed and instantaneous outputs. This unit is commonly used in machinery safety applications requiring high-performance protection and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | G9SX-ADA222-T15-RC |
| Subcategory | Safety Controllers |
| Product Type | Flexible Safety Unit |
| Series | G9SX |
| Supply Voltage | 24 V DC |
| Safety Category | Category 4, PLe, SIL3 |
| Controller Type | General Purpose Safety Controller |
| Safety Inputs | 2 Digital |
| Instantaneous Safety Outputs | 2 Solid State Outputs |
| OFF-Delayed Safety Outputs | 2 Solid State Outputs |
| Auxiliary Outputs | 2 PNP Transistor Outputs |
| Maximum OFF-Delay Time | 15 Seconds |
| Mounting Type | DIN Rail |
| Termination Style | Spring Terminal |
| Power Consumption | 4 W Max |
| Operating Temperature | -10°C to +55°C |
| Weight | 0.44 lbs |
Information About G9SX-ADA222-T15-RC
The G9SX-ADA222-T15-RC is part of Omron’s G9SX series of machine safety controllers, engineered for Category 4, PLe, and SIL3 safety applications. It features advanced logic processing with configurable OFF-delay timing up to 15 seconds for controlled machine stopping functions. The controller includes solid-state safety outputs and auxiliary outputs for integration into complex safety systems. Designed for DIN rail mounting, it uses spring-cage terminals for secure wiring and reliable operation in industrial environments.
Key Features:
- Advanced Safety Controller: Designed for industrial machine safety systems
- Category 4 / PLe / SIL3: Supports high-level safety compliance requirements
- Configurable OFF-Delay: Adjustable delay timing up to 15 seconds
- Solid-State Safety Outputs: Provides reliable and fast switching performance
- Auxiliary Outputs Included: Supports status monitoring and control integration
- Logical AND Functionality: Enables flexible safety logic configuration
- DIN Rail Mounting: Simplifies installation in control cabinets
- Spring-Cage Terminals: Ensures secure and vibration-resistant wiring
The G9SX-ADA222-T15-RC delivers the reliability and precision required for advanced machine safety control in industrial automation systems.
