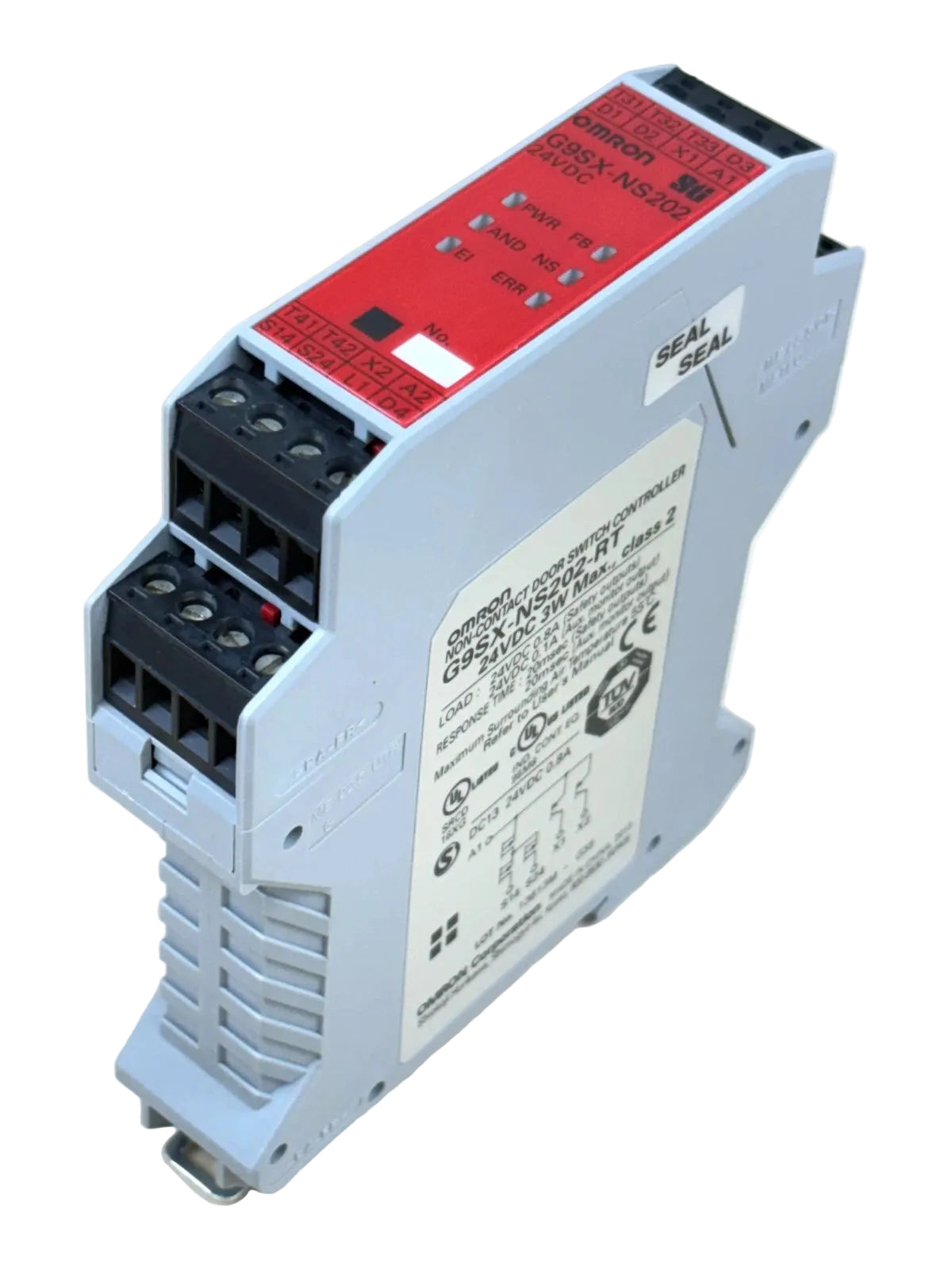

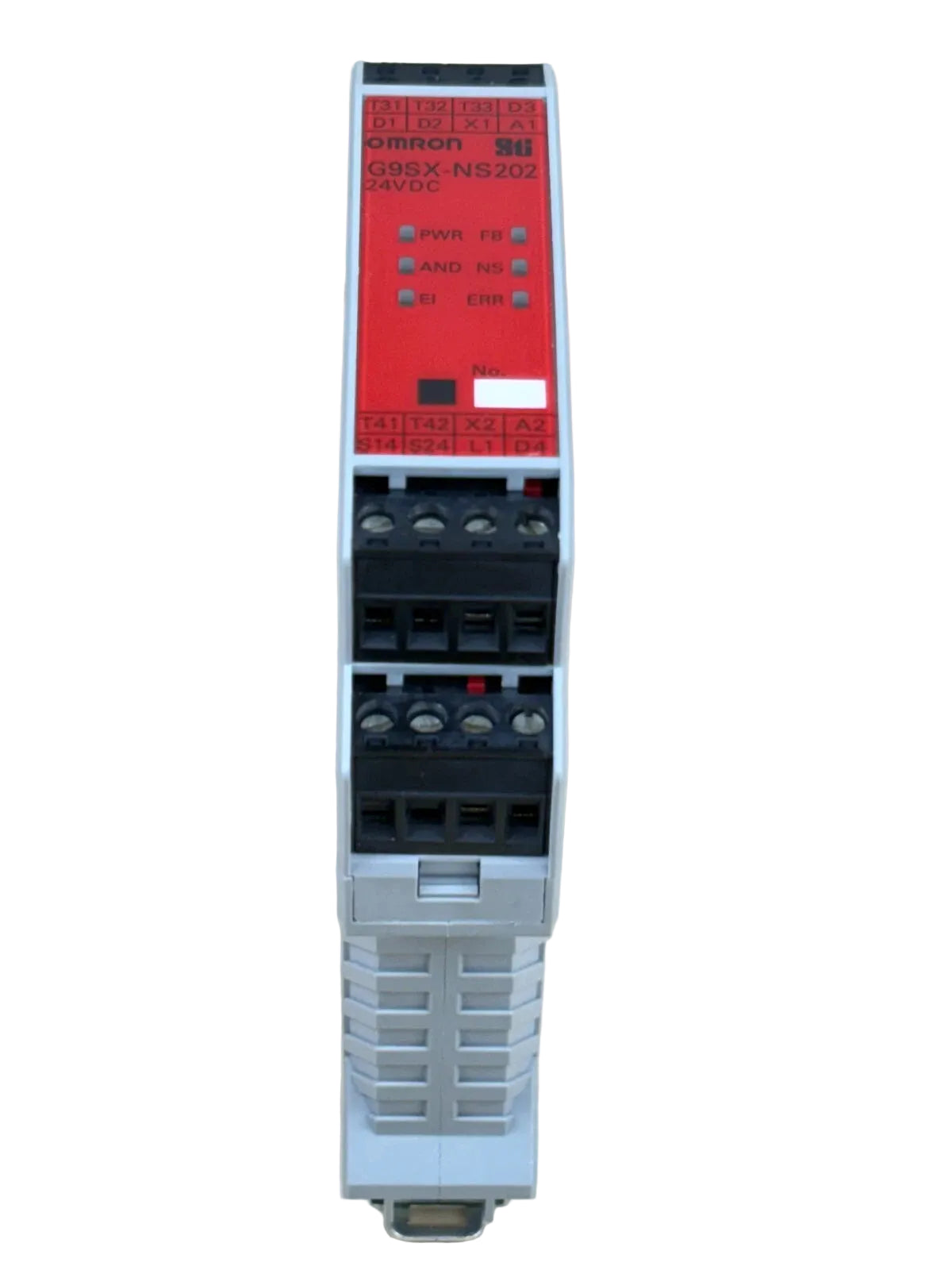

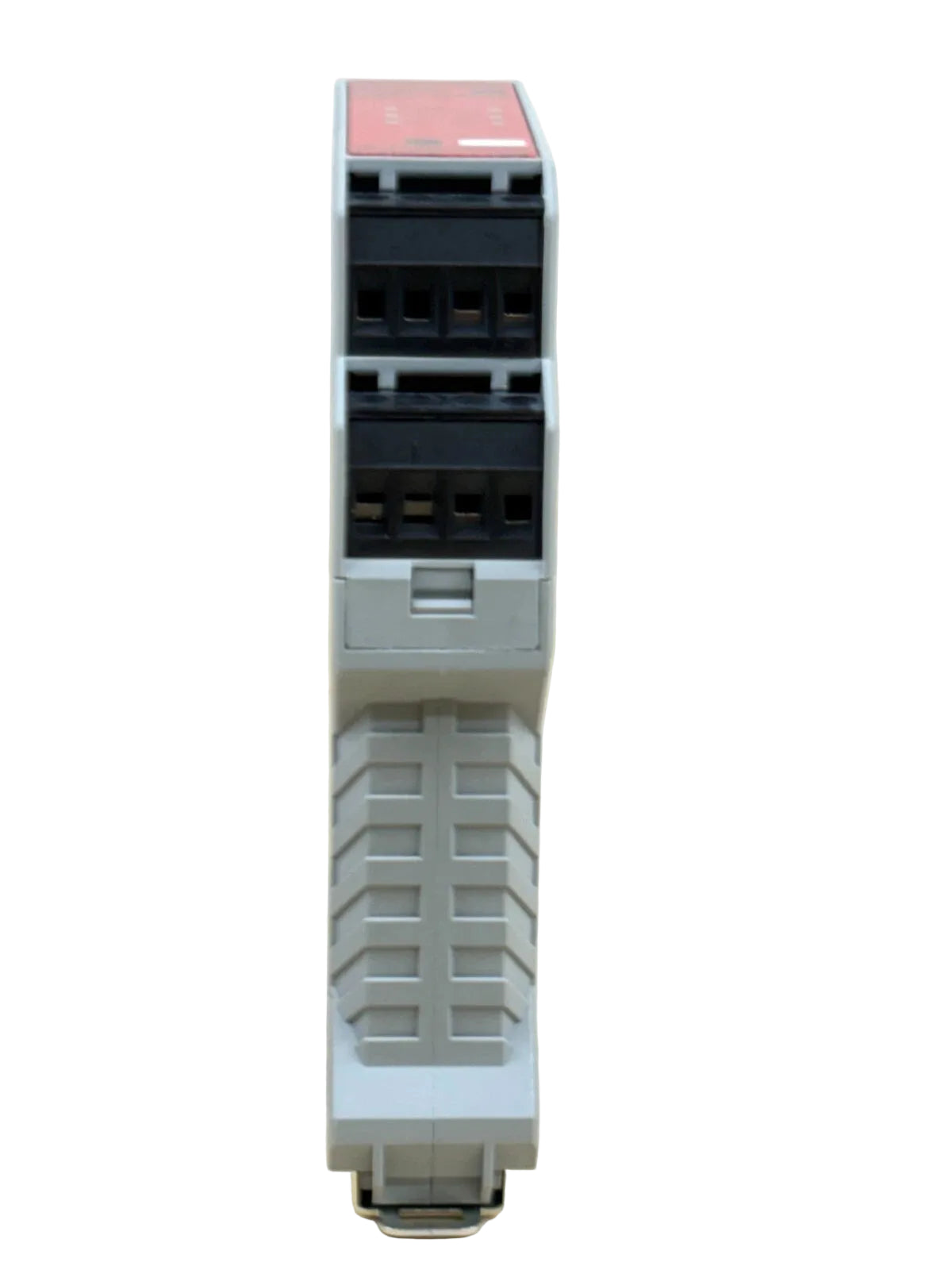

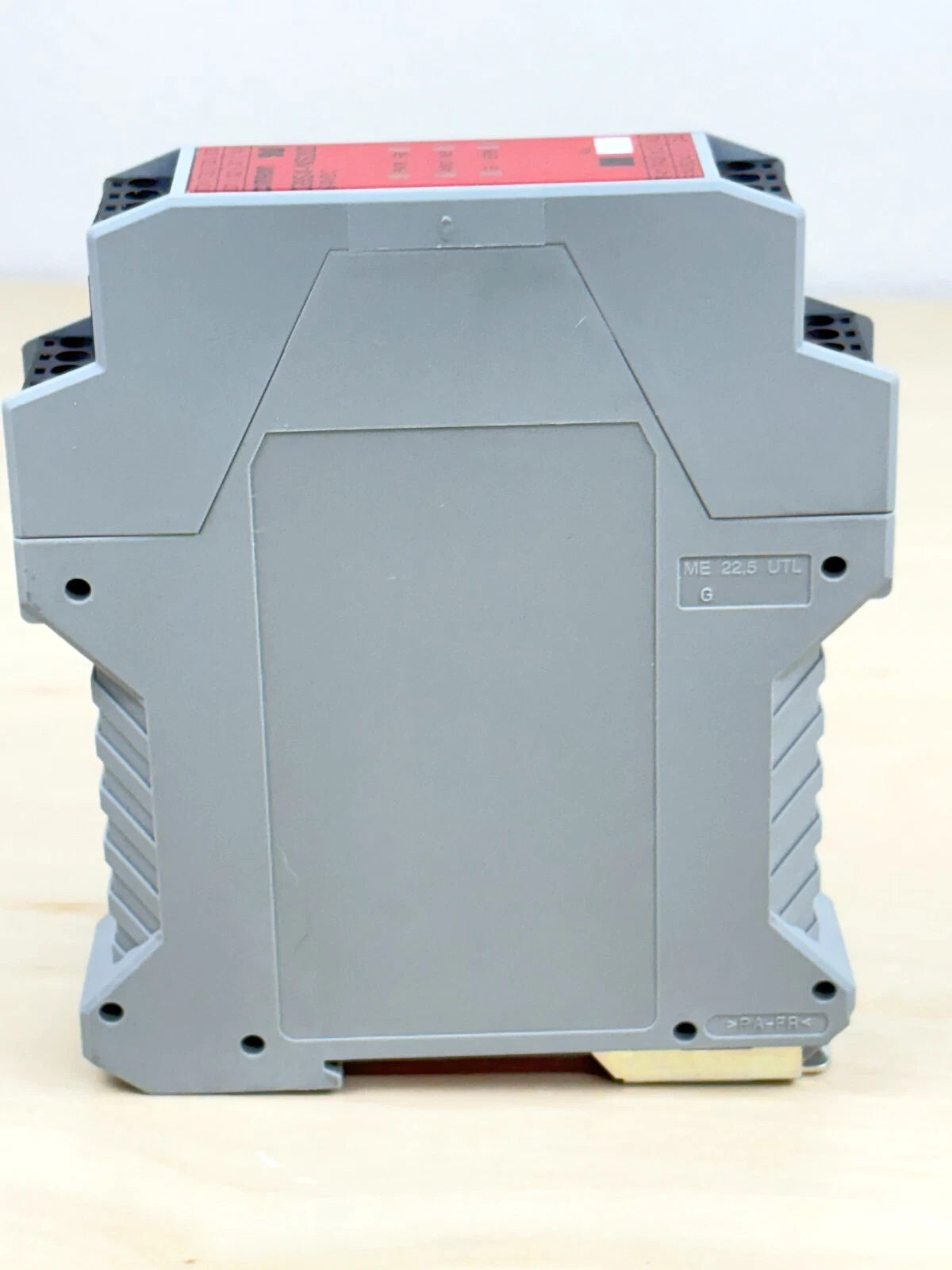

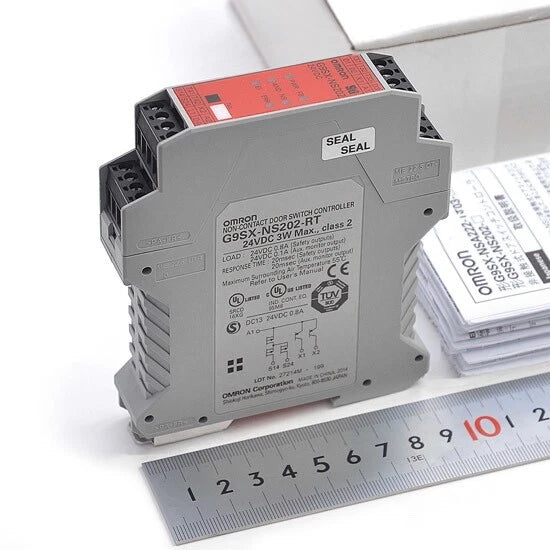

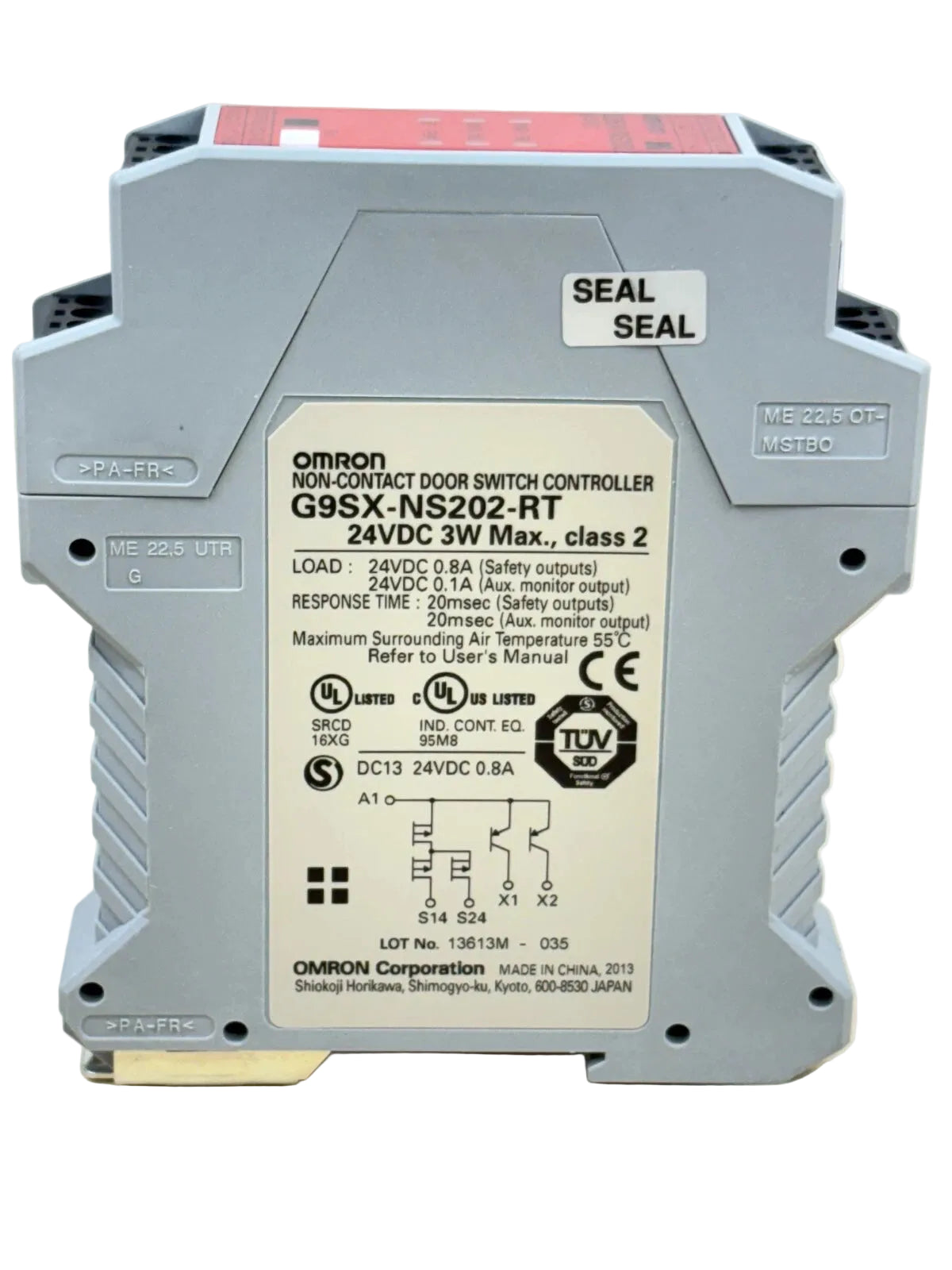

Omron G9SX-NS202-RT DC24 Safety Relay Controller for Machine Safety
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: G9SX-NS202-RT
Description
The Omron G9SX-NS202-RT DC24 is a safety relay controller designed for monitoring non-contact safety door switches in industrial machinery. It provides reliable safety monitoring, fast response times, and secure control of machine access points, helping protect personnel while minimizing production downtime. The controller is ideal for machine guarding, safety doors, automated production lines, and industrial safety systems.
Technical Specifications
| Condition | New / Surplus Available |
| Brand | Omron |
| Part Number | G9SX-NS202-RT DC24 |
| Category | Safety Systems |
| Subcategory | Safety Interlock Switch |
| Product Type | Safety Relay Controller |
| Series | G9SX-NS |
| Safety Category | Category 3, PL d |
| Controller Type | Magnetic Interlock |
| Supply Voltage | 24 VDC |
| Power Consumption | 3 W Maximum |
| Safety Inputs | 2 Digital |
| Safety Outputs | 2 Solid-State (Instantaneous) |
| Auxiliary Outputs | 2 Solid-State |
| Logic Function | Logical AND I/O |
| Operating Time | 100 ms Maximum |
| Response Time | 15 ms Maximum |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Terminal |
| Display | LED Indicators |
| Operating Temperature | -10°C to +55°C |
| Approvals | CE, CSA, cULus, TÜV, UL |
| Part Status | Active |
| Weight | 0.26 lbs |
Information About G9SX-NS202-RT
The G9SX-NS202-RT DC24 is part of Omron's G9SX-NS series of safety controllers, developed for electronic monitoring of non-contact safety interlock switches such as the Omron D40A series. The controller supports logical AND connections, allowing flexible machine safety configurations and partial machine stops. It features two instantaneous solid-state safety outputs, two auxiliary outputs, LED diagnostics for simplified troubleshooting, and fast response times to improve machine safety and system availability. Its compact DIN rail-mounted design enables easy installation in industrial control panels.
Key Features:
- G9SX-NS Series Safety Relay Controller
- Designed for non-contact safety door switch monitoring
- Category 3 / PL d machine safety performance
- Two instantaneous solid-state safety outputs
- Two auxiliary solid-state outputs
- Logical AND function for flexible safety configurations
- LED status indicators for diagnostics and troubleshooting
- Fast response time for enhanced machine safety
- DIN rail mounting with screw terminal connections
- Suitable for machine guarding and industrial safety systems
The G9SX-NS202-RT DC24 delivers reliable safety monitoring and helps reduce machine downtime through advanced diagnostics and dependable operation.
