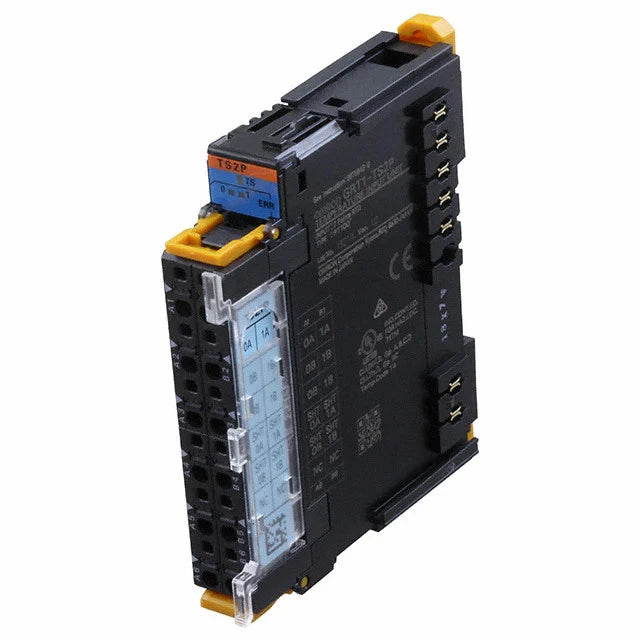

Omron GRT1-TS2P SmartSlice Pt100 Temperature Input Module
- Regular price
- $597.00
- Sale price
- $597.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GRT1-TS2P
Description
The Omron GRT1-TS2P is a SmartSlice temperature input module designed for accurate temperature measurement using Pt100 resistance temperature detectors (RTDs). Featuring two high-resolution analog inputs, compact DIN rail mounting, and seamless integration with SmartSlice distributed I/O systems, it delivers precise temperature monitoring for industrial automation applications.
Technical Specifications
| Condition | New |
| Brand | Omron |
| Part Number | GRT1-TS2P |
| Category | PLCs / Machine Control |
| Subcategory | PLC Module / Rack |
| Product Type | Temperature Input Module |
| Series | SmartSlice GRT1 |
| I/O System | GRT1 I/O Bus |
| Analog Inputs | 2 |
| Temperature Sensor Type | Pt100 RTD |
| Resolution | 13 Bit |
| Supply Voltage | 24 VDC |
| Connection Type | Push-In |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Dimensions (H × W × D) | 84 × 15 × 74.4 mm |
| Compatible Controllers | CJ, CS, NJ Series |
| Part Status | Obsolete |
| Weight | 0.19 lbs |
Information About GRT1-TS2P
The GRT1-TS2P is part of Omron's SmartSlice GRT1 Series modular remote I/O platform. It provides two Pt100 temperature input channels with 13-bit resolution, allowing accurate temperature acquisition for process control and monitoring. The module connects to the GRT1 I/O Bus and is compatible with Omron CJ, CS, and NJ Series controllers. Its compact 15 mm-wide housing, push-in wiring technology, and DIN rail mounting simplify installation while minimizing panel space. Although discontinued, it remains widely used in existing SmartSlice systems.
Key Features:
- SmartSlice GRT1 Series temperature input module
- Two Pt100 analog temperature inputs
- 13-bit analog input resolution
- Compact 15 mm-wide design
- GRT1 I/O Bus communication
- Push-in wiring terminals
- DIN rail mounting
- IP20 protection rating
- Compatible with CJ, CS, and NJ Series controllers
- Designed for industrial temperature monitoring and process control
The GRT1-TS2P provides reliable and accurate temperature acquisition for distributed industrial automation systems.
