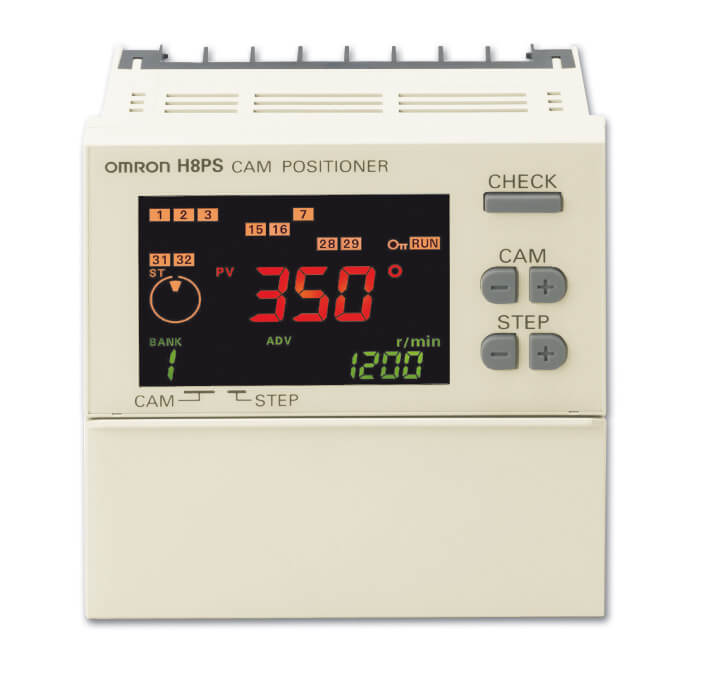

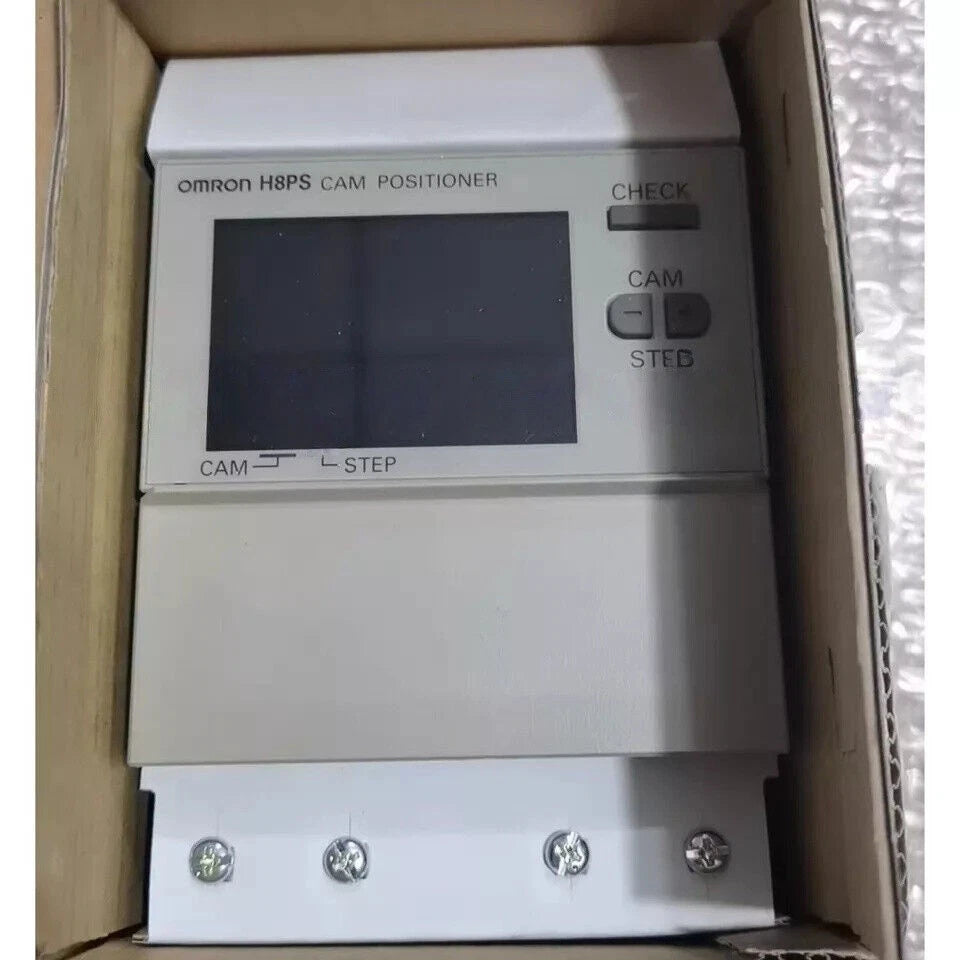

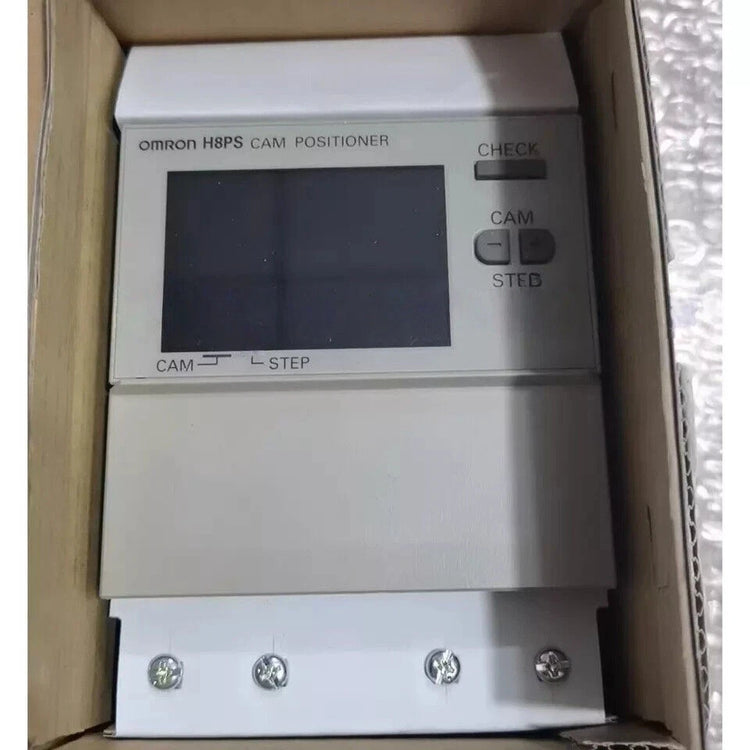

H8PS-16BP | Omron H8PS Series 16 Output Programmable Cam Positioner 24VDC
- Regular price
- $1,897.00
- Sale price
- $1,897.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: H8PS-16BP
Description
The Omron H8PS-16BP is a programmable cam positioner designed for precise position-based control in industrial automation systems. It features 16 PNP outputs and encoder input capability to control machine operations based on shaft position. This unit enables accurate synchronization of machine processes such as packaging, cutting, and indexing applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Controls & Indicators |
| Part Number | H8PS-16BP |
| Subcategory | Control |
| Series | H8PS |
| Device Type | Programmable cam positioner |
| Number of Outputs | 16 |
| Output Type | PNP |
| Input Type | Encoder |
| Supply Voltage | 24 VDC |
| Display Type | LCD |
| Programming Method | Front keypad |
| Mounting Type | DIN rail or panel mount |
| Protection Rating | IP20 / IP40 |
| Operating Temperature | -10°C to 55°C |
| Dimensions | 96 × 121.2 × 58 mm |
| Weight | 0.44 lbs |
Information About H8PS-16BP
The H8PS-16BP belongs to the Omron H8PS series of cam positioners used for position control and timing management in automated machinery. It receives encoder signals and generates output signals at specific rotational positions to control machine events. The unit includes a backlit LCD display and keypad programming interface, allowing operators to configure output timing and position parameters directly from the front panel. Its compact housing supports DIN rail or panel mounting, making it suitable for integration into industrial control cabinets.
Key Features:
-
Programmable Cam Positioner: Controls machine operations based on encoder shaft position.
-
Sixteen PNP Outputs: Provides multiple outputs for triggering events in automated equipment.
-
Encoder Input Interface: Accepts encoder signals for precise position-based control.
-
High-Speed Operation: Supports shaft speeds up to 1600 RPM for dynamic applications.
-
High Resolution Control: Position settings adjustable with precision up to 0.5 degrees.
-
Integrated LCD Display: Backlit LCD allows monitoring of parameters and system status.
-
Front Panel Keypad Programming: Five-button interface for easy configuration and setup.
-
Flexible Mounting Options: Supports both DIN rail and panel mounting installations.
The H8PS-16BP delivers the reliability and precision required for position-based machine control in industrial automation systems.
