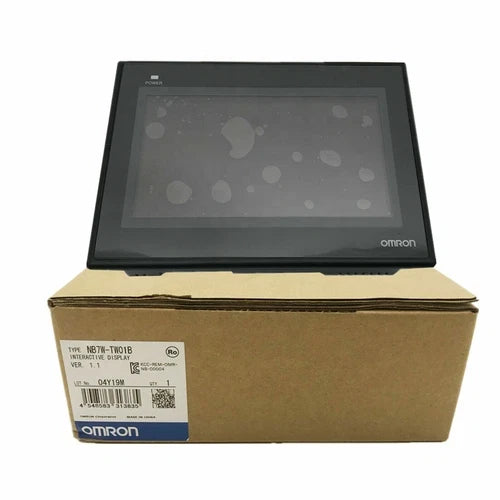

Omron NB7W-TW01B-V1 7" TFT HMI Touchscreen Operator Interface 800×480
- Regular price
- $1,219.00
- Sale price
- $1,219.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NB7W-TW01B-V1
Description
The Omron NB7W-TW01B-V1 is a 7-inch touchscreen human-machine interface (HMI) designed for monitoring and controlling industrial automation systems. It features an 800 × 480 TFT color display with 65,536 colors for clear visualization of machine data and process status. The unit supports Ethernet, USB, and serial communication interfaces for integration with PLCs and automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | HMI / MMI / OIT |
| Part Number | NB7W-TW01B-V1 |
| Subcategory | Operator Interface |
| Series | NB Series |
| Display Size | 7 inches |
| Display Type | TFT Color LCD |
| Display Resolution | 800 × 480 pixels |
| Number of Colors | 65,536 |
| Communication Ports | Ethernet, RS-232, RS-422, RS-485 |
| USB Ports | 2 |
| Ethernet Ports | 1 |
| Supply Voltage | 24 VDC |
| Front Panel Protection | IP65 |
| Operating Temperature | 0°C to 50°C |
| Panel Cutout Size | 191 × 137 mm |
| Dimensions (Front) | 202 × 148 mm |
| Built-In Depth | 46 mm |
| Internal Memory | 128 MB |
| Weight | 2.20 lbs |
Information About NB7W-TW01B-V1
The NB7W-TW01B-V1 is part of the Omron NB Series of programmable operator terminals used for machine control and process visualization. It provides an intuitive touchscreen interface that allows operators to interact with PLC-controlled machinery and automation systems. The device includes multiple communication ports such as Ethernet, RS-232, RS-422, and RS-485 to support connectivity with a wide range of industrial controllers. Its IP65-rated front panel and compact panel-mount design make it suitable for installation in industrial control cabinets and operator stations.
Key Features:
-
7-Inch TFT Color Display: Provides clear visualization of machine status and process data.
-
High Resolution Screen: 800 × 480 pixel resolution supports detailed graphics and interface layouts.
-
Touchscreen Operation: Enables intuitive operator interaction with automation systems.
-
Multiple Communication Interfaces: Includes Ethernet, RS-232, RS-422, and RS-485 ports for flexible connectivity.
-
USB Connectivity: Two USB ports allow external device connection and data transfer.
-
Large Color Depth: Supports 65,536 display colors for improved visualization.
-
Industrial Protection: IP65-rated front panel protects against dust and water ingress.
-
NB Series Compatibility: Designed for integration with Omron PLCs and industrial automation platforms.
The NB7W-TW01B-V1 delivers the reliability and precision required for operator interface and machine control in industrial automation systems.
