Omron NS5-TQ10B-V2 HMI Panel 5.7 Inch TFT 320x240 RS232 USB 24VDC Operator Interface
- Regular price
- $2,174.00
- Sale price
- $2,174.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NS5-TQ10B-V2
Description

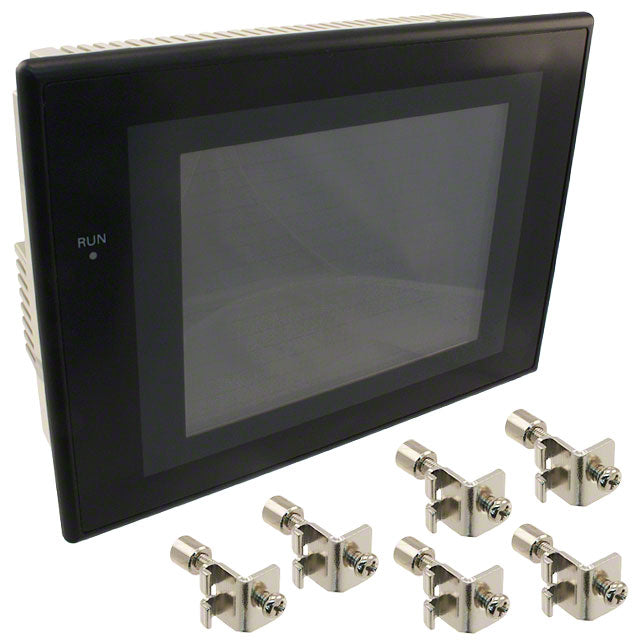

The Omron NS5-TQ10B-V2 is a 5.7-inch human-machine interface designed for industrial control and monitoring applications. It features a TFT color display with 320 × 240 resolution and supports up to 32,768 colors for clear visualization of process data. This HMI provides reliable operator interaction and system control in automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | NS5-TQ10B-V2 |
| Subcategory | HMI Panels |
| Series | NS |
| Display Size | 5.7 inch |
| Display Type | TFT Color |
| Resolution | 320 × 240 |
| Number of Colors | 32,768 |
| Memory Capacity | 60 MB |
| Supply Voltage | 24 VDC |
| Communication Ports | RS-232 ×2, USB |
| Protection Rating | IP65 (Front Panel) |
| Mounting Type | Panel Mount |
| Dimensions | 195 × 142 × 49 mm |
| Cutout Dimensions | 184 × 131 mm |
| Operating Temperature | 0°C to 50°C |
| Weight | 1.002 kg |
Information About NS5-TQ10B-V2
The NS5-TQ10B-V2 is an HMI panel from Omron’s NS series, developed for use in industrial automation systems requiring intuitive operator interfaces. It is equipped with a high-luminance TFT display that ensures visibility in various lighting conditions. The unit supports communication through dual RS-232 ports and USB, allowing integration with PLCs and other control devices. Its IP65-rated front panel and flush-mount design make it suitable for installation in control panels operating in demanding industrial environments.
Key Features:
-
5.7-inch TFT display: Provides clear visualization with 320 × 240 resolution for process monitoring.
-
32,768 color support: Enables detailed graphical interface and image display.
-
Dual RS-232 communication ports: Allows connection to multiple industrial devices and controllers.
-
USB interface: Supports data transfer and configuration tasks.
-
60 MB memory capacity: Provides storage for application programs and graphical data.
-
IP65 front protection: Ensures resistance to dust and water ingress in industrial environments.
-
Flush panel mounting: Designed for secure installation in control cabinets.
-
24 VDC power supply: Compatible with standard industrial power systems.
The NS5-TQ10B-V2 delivers the reliability and precision required for operator interface control and monitoring in industrial automation systems.
Description
The Omron NS5-TQ10B-V2 is a 5.7-inch human-machine interface designed for industrial control and monitoring applications. It features a TFT color display with 320 × 240 resolution and supports up to 32,768 colors for clear visualization of process data. This HMI provides reliable operator interaction and system control in automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | NS5-TQ10B-V2 |
| Subcategory | HMI Panels |
| Series | NS |
| Display Size | 5.7 inch |
| Display Type | TFT Color |
| Resolution | 320 × 240 |
| Number of Colors | 32,768 |
| Memory Capacity | 60 MB |
| Supply Voltage | 24 VDC |
| Communication Ports | RS-232 ×2, USB |
| Protection Rating | IP65 (Front Panel) |
| Mounting Type | Panel Mount |
| Dimensions | 195 × 142 × 49 mm |
| Cutout Dimensions | 184 × 131 mm |
| Operating Temperature | 0°C to 50°C |
| Weight | 1.002 kg |
Information About NS5-TQ10B-V2
The NS5-TQ10B-V2 is an HMI panel from Omron’s NS series, developed for use in industrial automation systems requiring intuitive operator interfaces. It is equipped with a high-luminance TFT display that ensures visibility in various lighting conditions. The unit supports communication through dual RS-232 ports and USB, allowing integration with PLCs and other control devices. Its IP65-rated front panel and flush-mount design make it suitable for installation in control panels operating in demanding industrial environments.
Key Features:
-
5.7-inch TFT display: Provides clear visualization with 320 × 240 resolution for process monitoring.
-
32,768 color support: Enables detailed graphical interface and image display.
-
Dual RS-232 communication ports: Allows connection to multiple industrial devices and controllers.
-
USB interface: Supports data transfer and configuration tasks.
-
60 MB memory capacity: Provides storage for application programs and graphical data.
-
IP65 front protection: Ensures resistance to dust and water ingress in industrial environments.
-
Flush panel mounting: Designed for secure installation in control cabinets.
-
24 VDC power supply: Compatible with standard industrial power systems.
The NS5-TQ10B-V2 delivers the reliability and precision required for operator interface control and monitoring in industrial automation systems.
