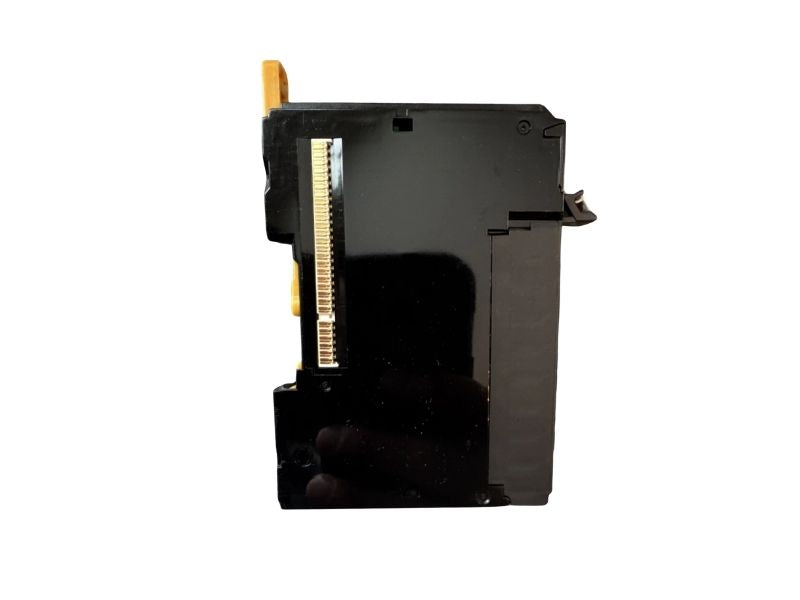

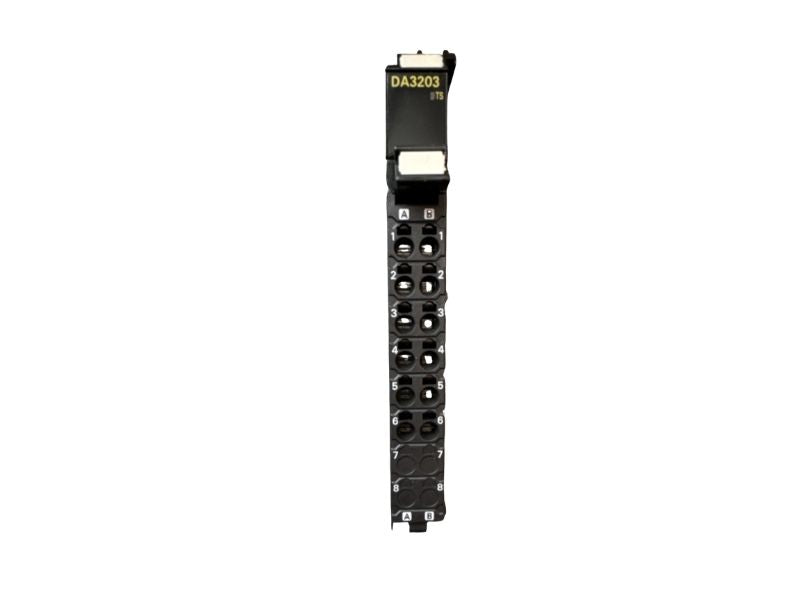

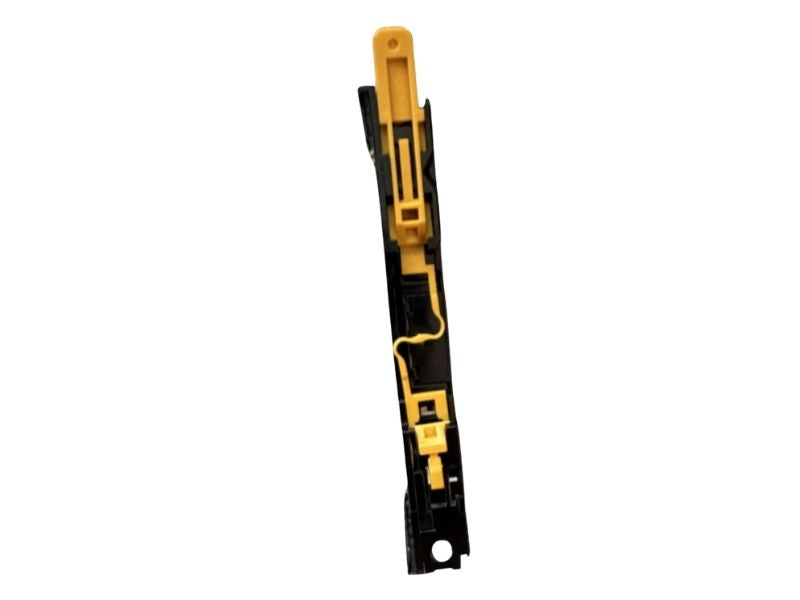

Omron NX-DA3203 NX Series PLC Analog Output Module 4× 4–20mA
- Regular price
- $787.00
- Sale price
- $787.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX-DA3203
Description
The Omron NX-DA3203 is a PLC analog output module designed to provide precise current outputs for industrial control systems. It features four analog output channels with 4–20 mA signal capability for accurate control of field devices. The module integrates with the NX Series automation platform and is commonly used for process control applications requiring reliable analog signal output.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | NX-DA3203 |
| Subcategory | VDC Logic I/O Module |
| Series | NX Series |
| Module Type | Analog Output Module |
| Number of Analog Outputs | 4 |
| Output Signal Type | 4–20 mA |
| Output Resolution | 13 Bit |
| Conversion Time | 1 ms per unit |
| Signal Processing | Free Running |
| I/O System | NX I/O Bus |
| Connection Type | Push-In Terminal |
| Mounting Type | DIN Rail |
| Ingress Protection | IP20 |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 104.5 × 12 × 80.1 mm |
| Country of Origin | Netherlands |
| Weight | 0.30 lbs |
Information About NX-DA3203
The NX-DA3203 is part of the Omron NX Series of modular I/O units used within Sysmac automation platforms. It functions as an analog output module that converts control signals from the PLC into current signals suitable for external equipment such as valves, drives, and controllers. The module communicates through the NX I/O Bus and provides four independent 4–20 mA analog outputs with 13-bit resolution. Its compact DIN rail design and push-in terminal connections allow efficient installation in industrial control panels.
Key Features:
-
Four Analog Output Channels: Provides four independent 4–20 mA outputs for process control.
-
High Resolution Output: 13-bit resolution ensures accurate analog signal generation.
-
NX Series Compatibility: Designed for integration with Omron NX Series PLC systems.
-
Fast Conversion Time: Processes signals with a conversion time of approximately 1 ms per unit.
-
Free-Running Signal Processing: Supports continuous analog signal generation.
-
Compact DIN Rail Module: Narrow housing allows efficient use of panel space.
-
Push-In Terminal Connections: Enables quick and secure wiring without screw terminals.
-
Industrial Automation Integration: Suitable for controlling actuators, drives, and process equipment.
The NX-DA3203 delivers the reliability and precision required for analog output control in PLC-based industrial automation systems.
