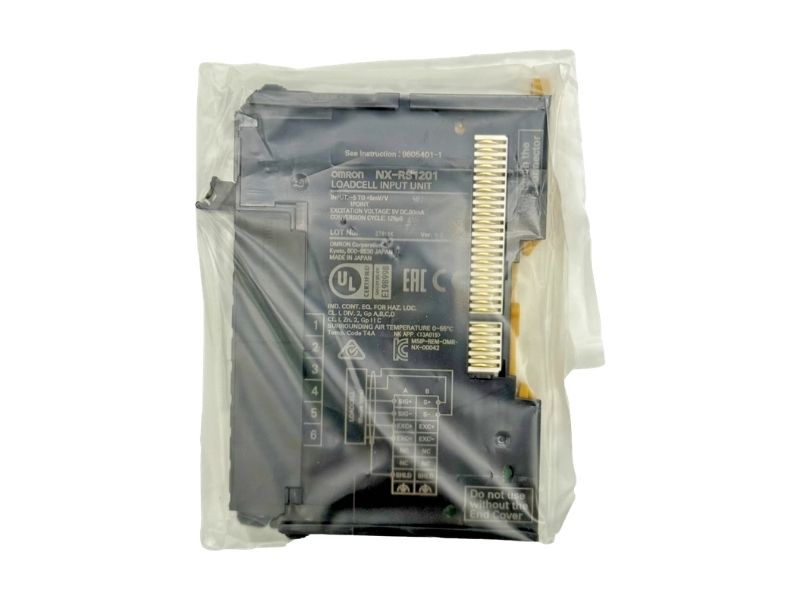

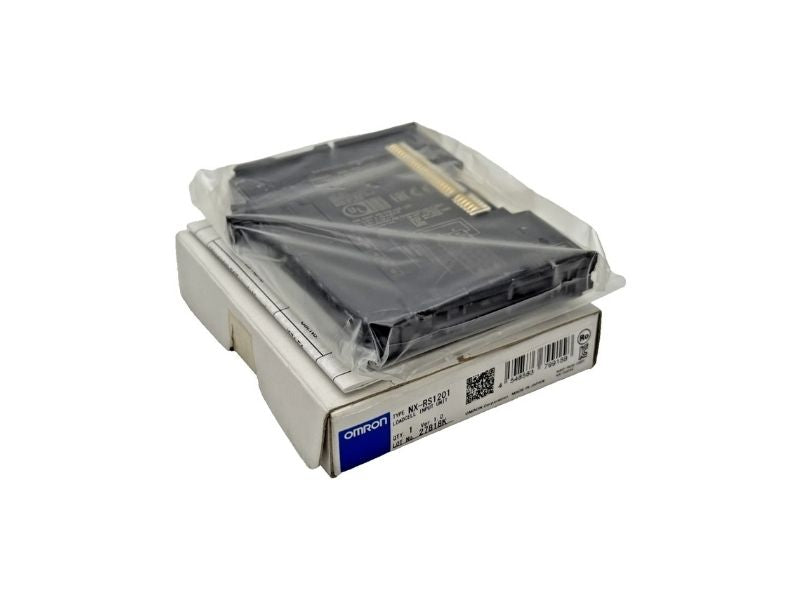

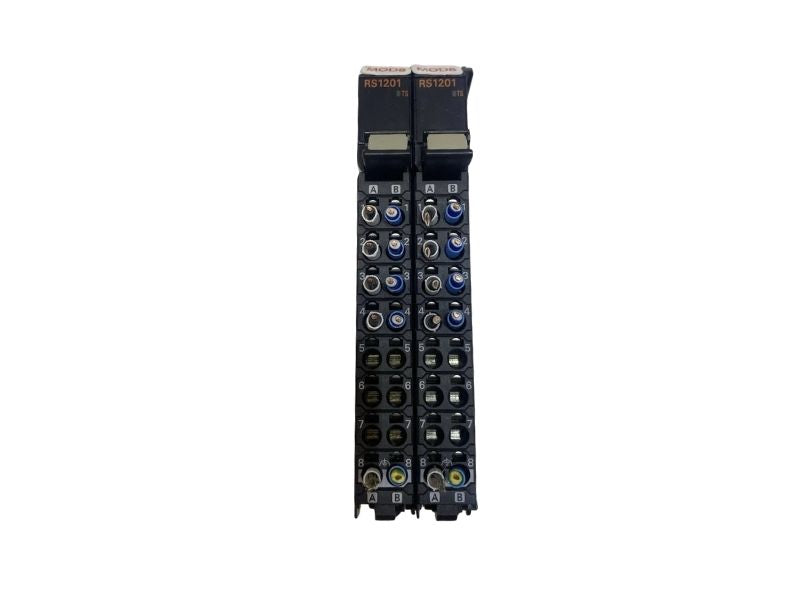

Omron NX-RS1201 Load Cell Input Module 24 Bit NX Series Sysmac
- Regular price
- $697.00
- Sale price
- $697.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX-RS1201
Description
The Omron NX-RS1201 is a load cell input module designed for high-precision measurement of force and weight signals in industrial automation systems. It provides a single high-resolution analog input optimized for load cell applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | NX-RS1201 |
| Subcategory | Load Cell Input Modules |
| Series | NX |
| Module Type | Load Cell Input Module |
| Number of Inputs | 1 (Analog) |
| Input Type | Load Cell (Differential) |
| Resolution | 24 Bit |
| Conversion Time | 0.125 ms/unit |
| Signal Processing | Free running, Synchronous |
| I/O System | NX I/O Bus |
| Connection Type | Push-in |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 100 × 12 × 80 mm |
| Weight | 70 g |
Information About NX-RS1201
The NX-RS1201 is part of Omron’s NX series I/O modules, intended for use within Sysmac automation platforms. It connects via the NX I/O bus and is specifically designed to process signals from load cells with high accuracy. The module features a 24-bit resolution and differential input circuit, ensuring precise measurement and noise resistance. Its compact design and push-in terminal connection make it suitable for modern control panels and distributed I/O systems.
Key Features:
- Load cell input module: Designed for force and weight measurement applications.
- High resolution: 24-bit analog input for precise signal processing.
- Fast conversion time: 0.125 ms per unit for real-time measurement.
- Differential input circuit: Improves noise immunity and measurement stability.
- NX I/O bus compatibility: Integrates with Sysmac automation systems.
- Compact design: 12 mm width for space-saving installations.
- Push-in terminal connection: Enables quick and secure wiring.
- Flexible signal processing: Supports free running and synchronous modes.
The NX-RS1201 delivers accurate and reliable load cell signal acquisition for industrial measurement and control systems.
