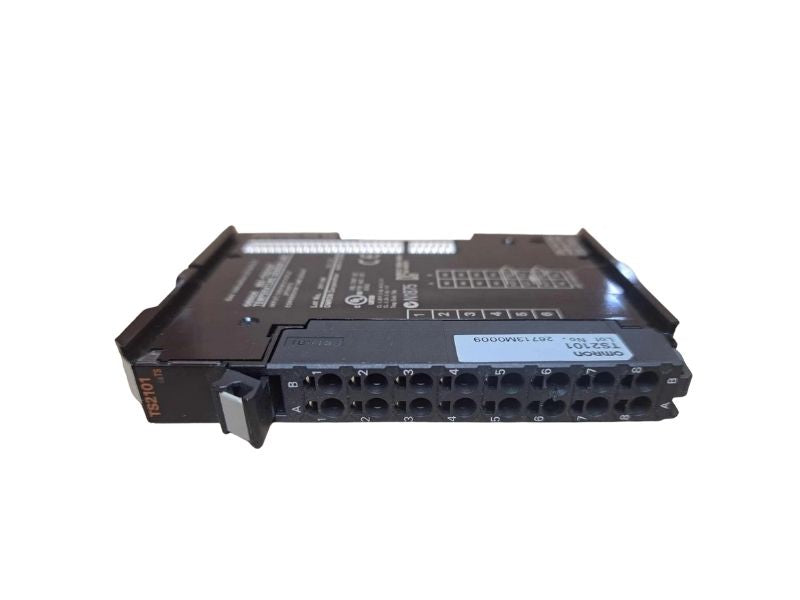

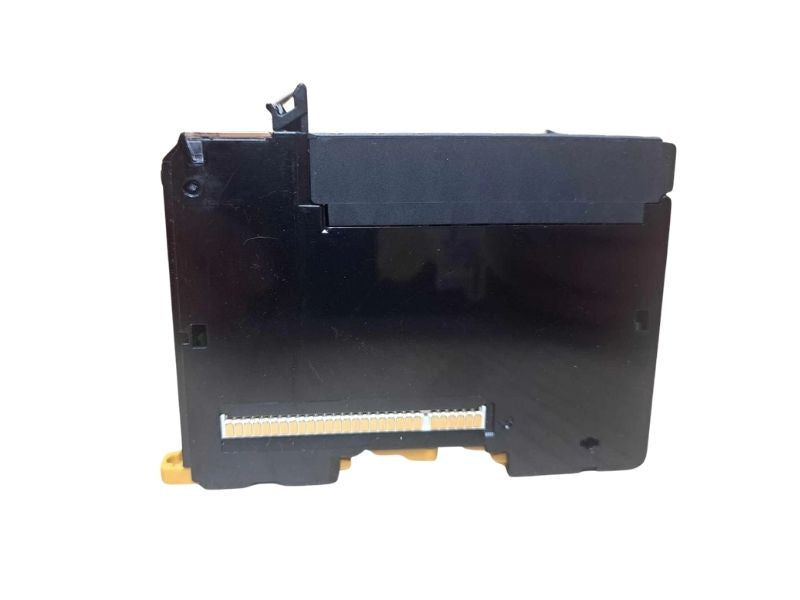

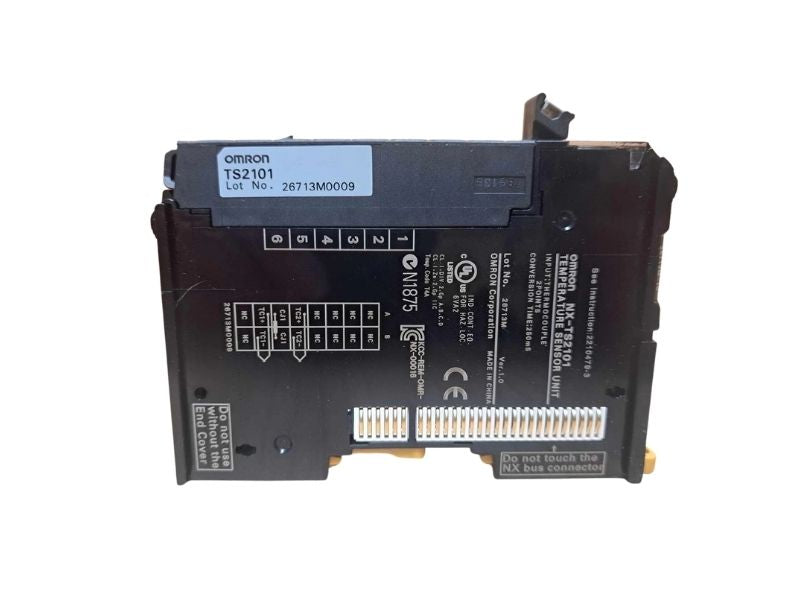

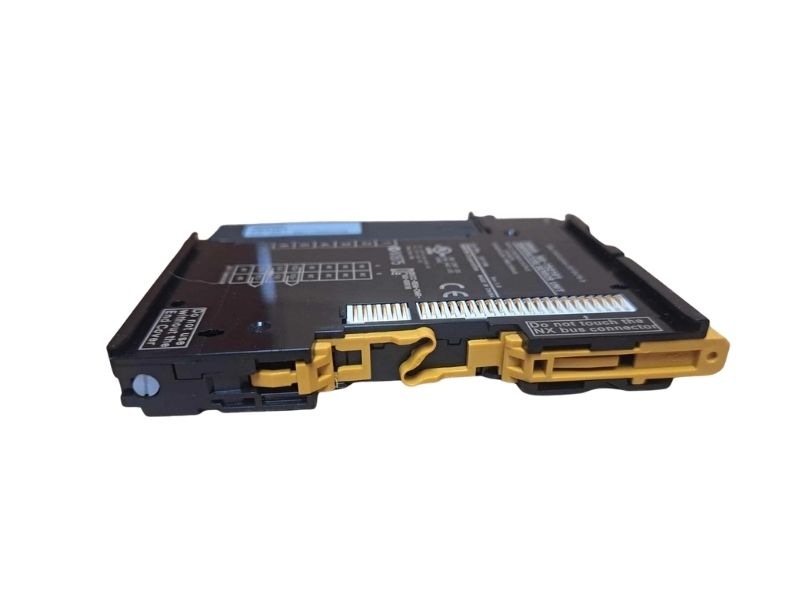

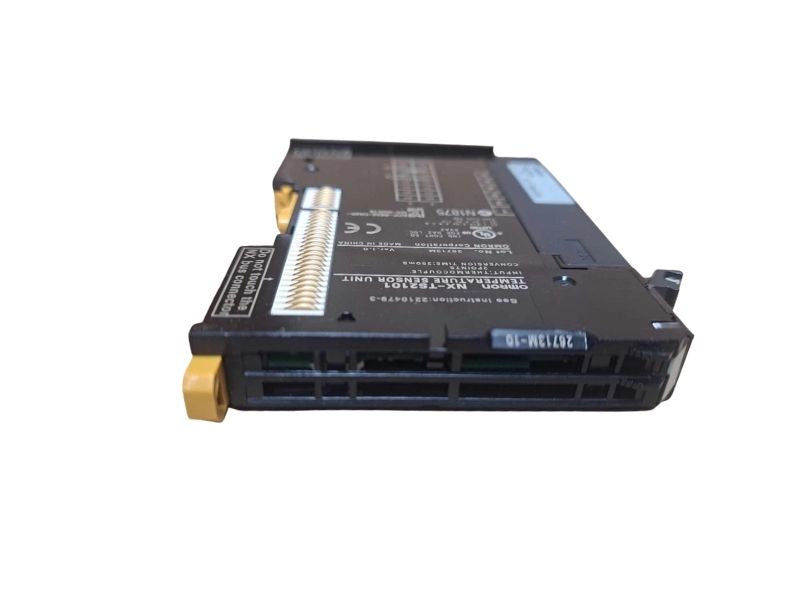

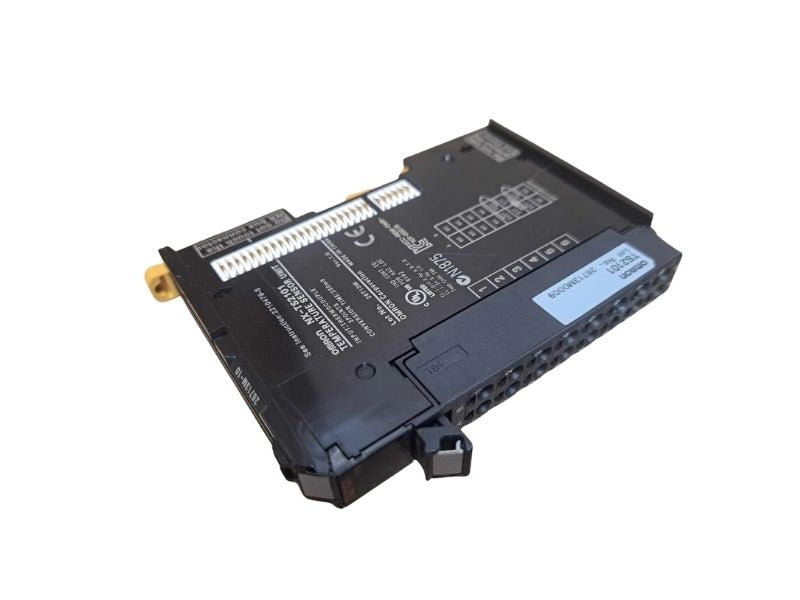

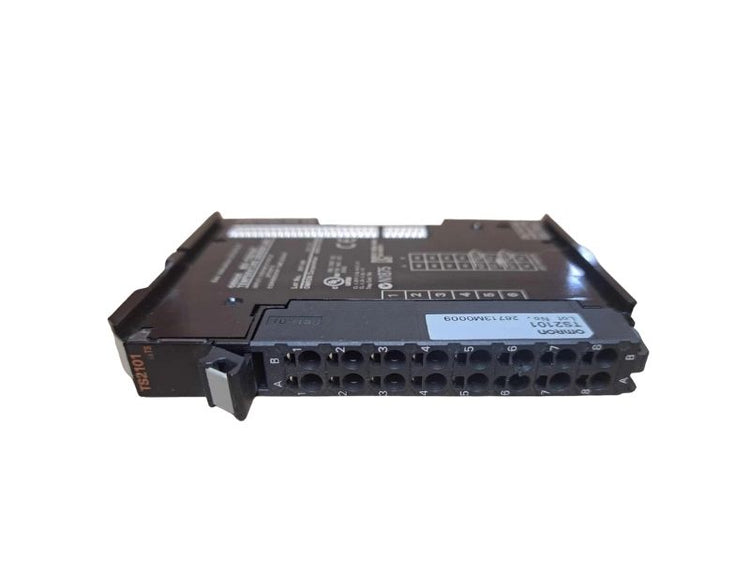

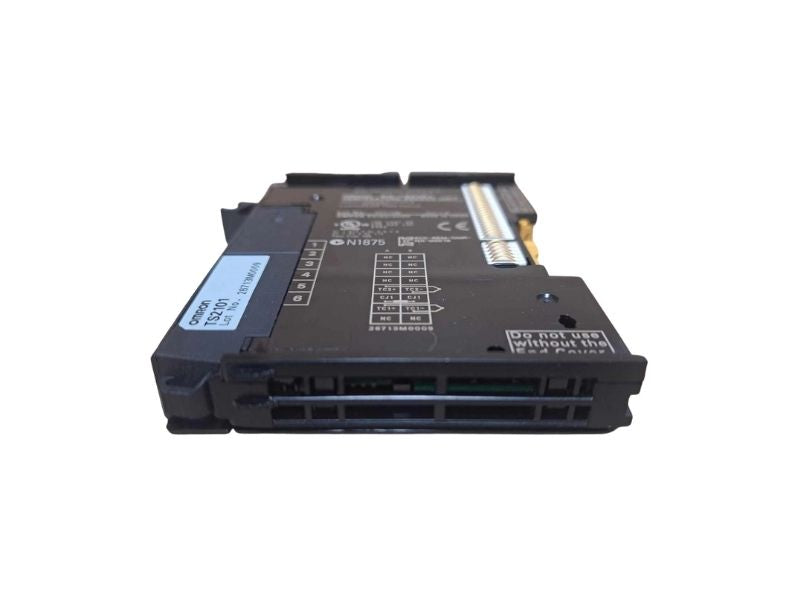

Omron NX-TS2101 Temperature Input Module 2 Channel Thermocouple 14-bit NX I/O PLC
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX-TS2101
Description
The Omron NX-TS2101 is a temperature input module designed for accurate thermocouple signal acquisition in industrial automation systems. It provides two analog inputs with 14-bit resolution for precise temperature measurement. This module is used in NX-series control systems for monitoring and processing temperature data.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Business & Industrial |
| Part Number | NX-TS2101 |
| Subcategory | Temperature Input Modules |
| Series | NX |
| Module Type | Analog Temperature Input Module |
| Number of Inputs | 2 Analog Inputs |
| Input Type | Thermocouple |
| Supported Sensor Types | B, C, E, J, K, L, N, P, R, S, T, U |
| Input Resolution | 14 Bit |
| Input Circuit Type | Differential |
| Conversion Time | 250 ms |
| Signal Processing | Free Running |
| I/O System | NX I/O Bus |
| Connection Type | Push-in Terminal |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 |
| Dimensions | 100 × 12 × 80 mm |
| Weight | 70 g |
Information About NX-TS2101
The NX-TS2101 is part of Omron’s NX series of modular I/O units, designed for distributed automation and high-precision data acquisition. It connects via the NX I/O Bus and supports a wide range of thermocouple input types, enabling flexible use across various industrial applications. The module features differential input circuits for improved noise immunity and stable signal processing. Its compact 12 mm width and push-in terminal connections allow efficient installation and wiring within control panels.
Key Features:
-
Dual thermocouple inputs: Supports two independent temperature measurement channels.
-
Wide sensor compatibility: Accepts multiple thermocouple types including B, E, J, K, R, S, and T.
-
14-bit resolution: Provides accurate and reliable temperature measurement data.
-
Differential input design: Reduces noise and improves signal stability.
-
NX I/O Bus connectivity: Enables integration with Omron NX-series automation systems.
-
Compact 12 mm width: Optimizes space in control panel installations.
-
Push-in terminal connection: Simplifies wiring and reduces installation time.
-
Stable signal processing: Uses free-running conversion with 250 ms cycle time.
The NX-TS2101 delivers the reliability and precision required for temperature measurement and monitoring in industrial automation systems.
