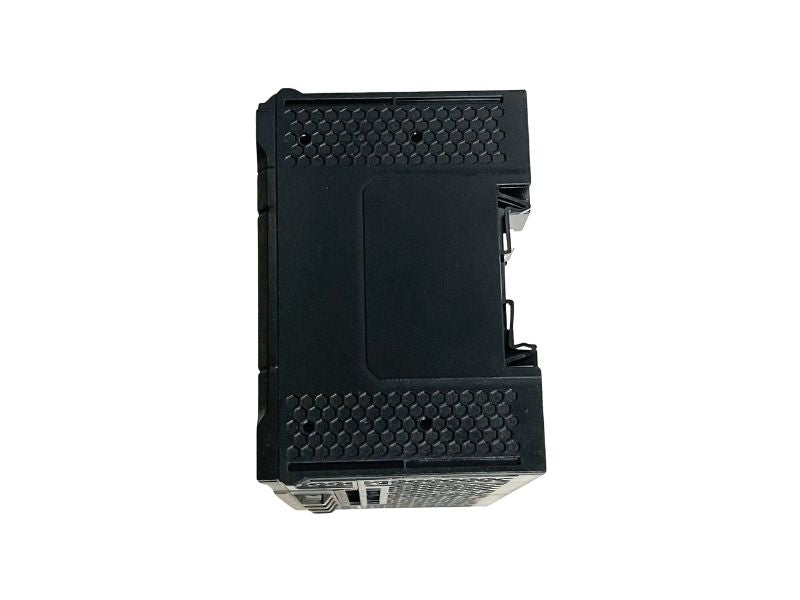

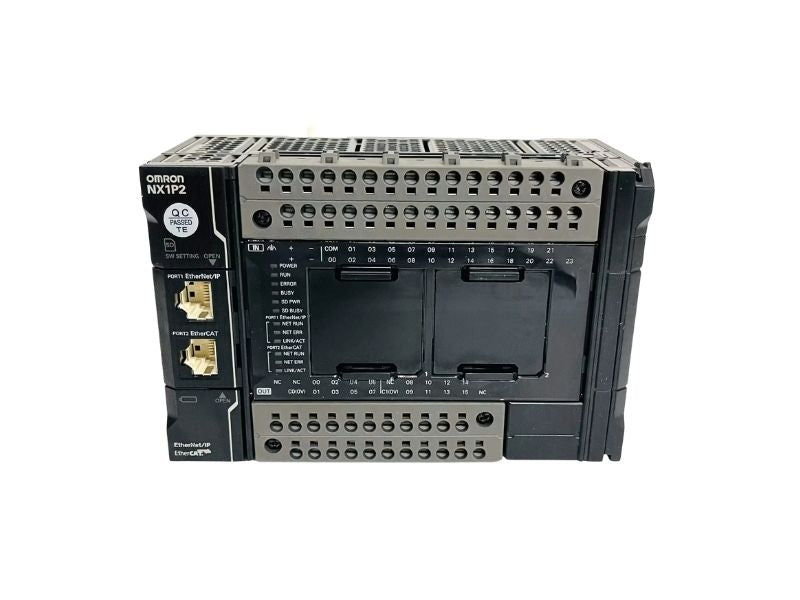

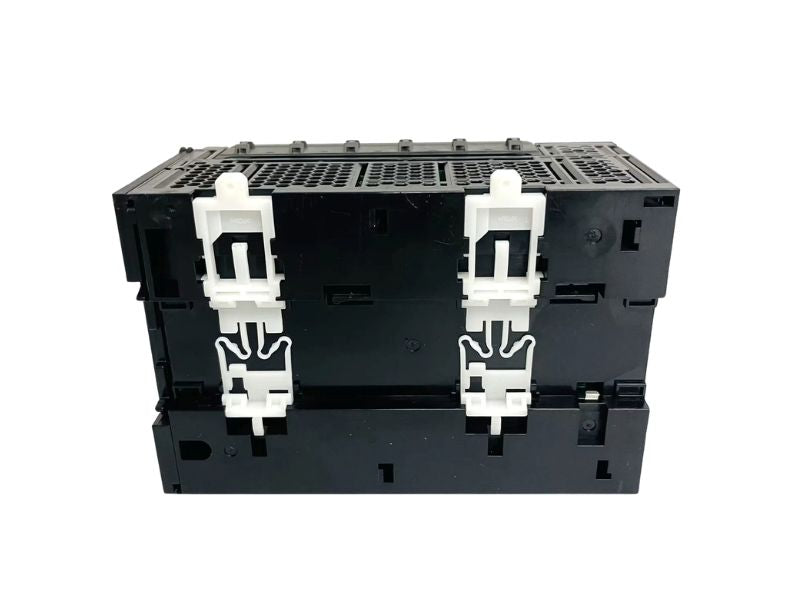

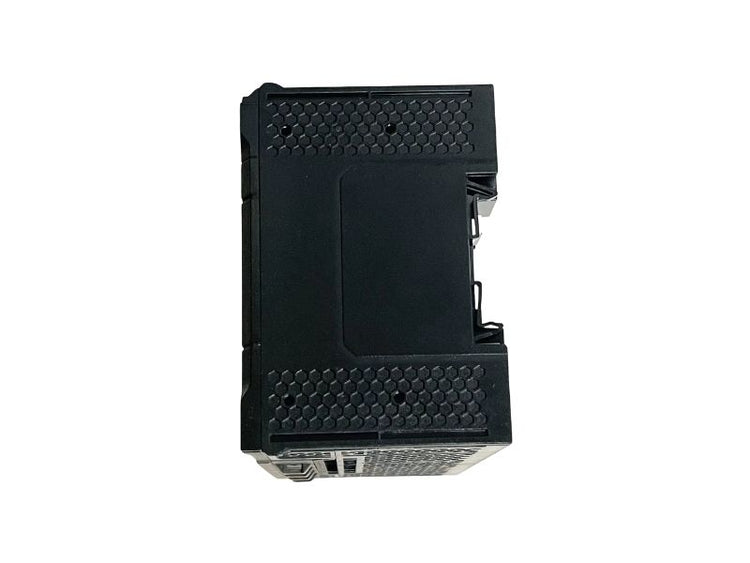

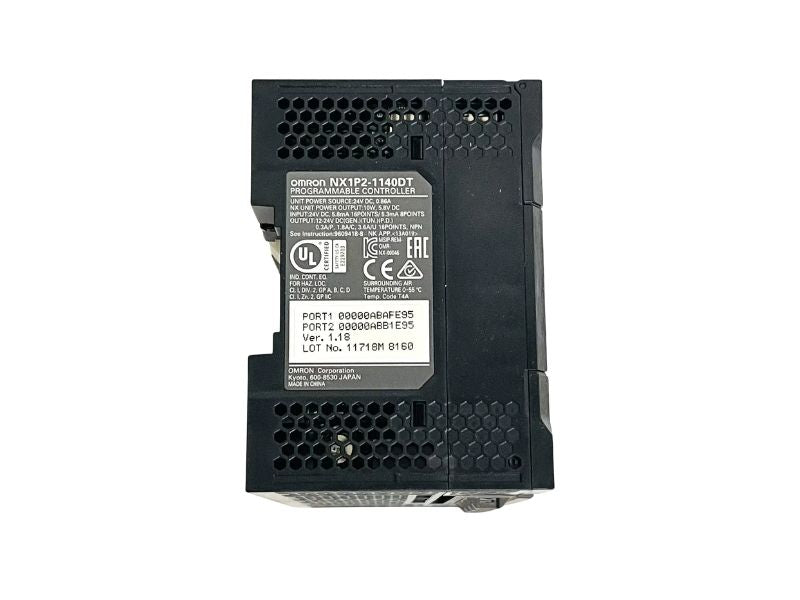

Omron NX1P2-1140DT NX Series PLC CPU Controller 24 Inputs 16 NPN Outputs EtherCAT EtherNet/IP
- Regular price
- $3,119.00
- Sale price
- $3,119.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX1P2-1140DT
Description
The Omron NX1P2-1140DT is a compact machine automation CPU controller designed for integrated motion, logic, and network control in industrial systems. It features 24 digital inputs and 16 NPN digital outputs along with built-in EtherCAT and EtherNet/IP communication. The controller is engineered for high-speed control tasks and supports advanced automation functions within the Omron NX1P series platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | NX1P2-1140DT |
| Subcategory | PLC Controllers |
| Series | NX1P |
| Module Type | CPU Unit |
| Digital Inputs | 24 |
| Digital Outputs | 16 NPN |
| Communication Protocols | EtherCAT Master, EtherNet/IP, EtherNet TCP/IP |
| Motion Control Network | EtherCAT |
| Total Motion Axes | 8 (4 Point-to-Point, 4 Coordinated) |
| Program Memory | 1.5 MB |
| Maximum Local I/O Units | 8 |
| Maximum Total Units per CPU | 24 |
| Flash Memory Port | SD |
| Programming Languages | Ladder, Structured Text, Function Block |
| Minimum Cycle Time | 2 ms |
| Mounting Type | DIN Rail |
| Weight | 740 g |
Information About NX1P2-1140DT
The NX1P2-1140DT is a CPU unit from Omron’s NX1P series designed for machine automation and motion control applications. It integrates multiple industrial communication protocols including EtherCAT master, EtherNet/IP, and EtherNet TCP/IP to support networked automation architectures. The controller supports up to eight local I/O expansion units and can manage distributed I/O systems through NX couplers. With support for ladder, structured text, and function block programming languages, it is suitable for complex control, motion synchronization, and high-speed automation processes.
Key Features:
-
Integrated digital I/O configuration: Includes 24 digital inputs and 16 NPN transistor outputs for direct field device control.
-
Built-in EtherCAT master capability: Supports high-speed motion control and synchronization across EtherCAT networks.
-
EtherNet/IP communication: Enables integration with industrial Ethernet automation systems and PLC networks.
-
Motion control support: Manages up to 8 axes with coordinated and point-to-point control capabilities.
-
1.5 MB program memory: Provides sufficient capacity for complex machine automation programs.
-
Flexible programming languages: Supports ladder logic, structured text, and function block programming methods.
-
NX Local Bus architecture: Allows expansion with additional NX series I/O modules.
-
DIN rail mounting design: Suitable for installation in standard industrial control cabinets.
The NX1P2-1140DT delivers the reliability and precision required for advanced machine control, motion automation, and integrated PLC operations.
