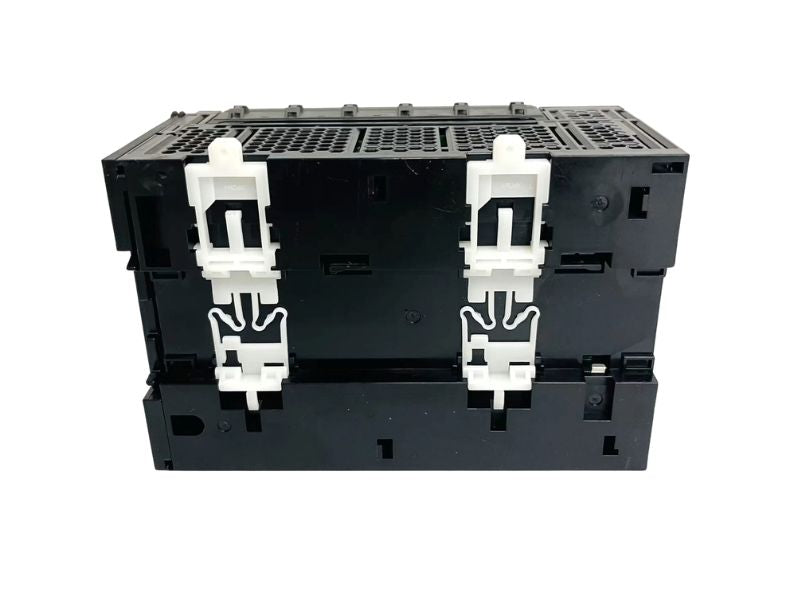

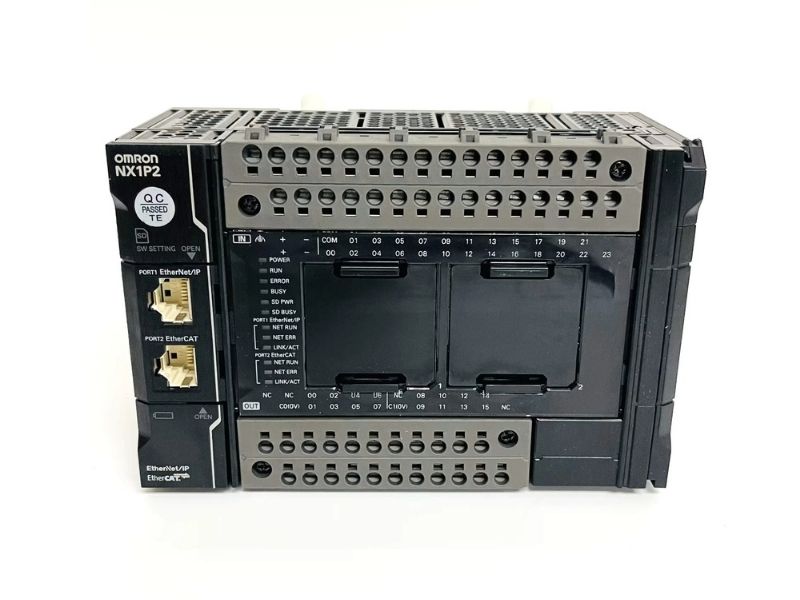

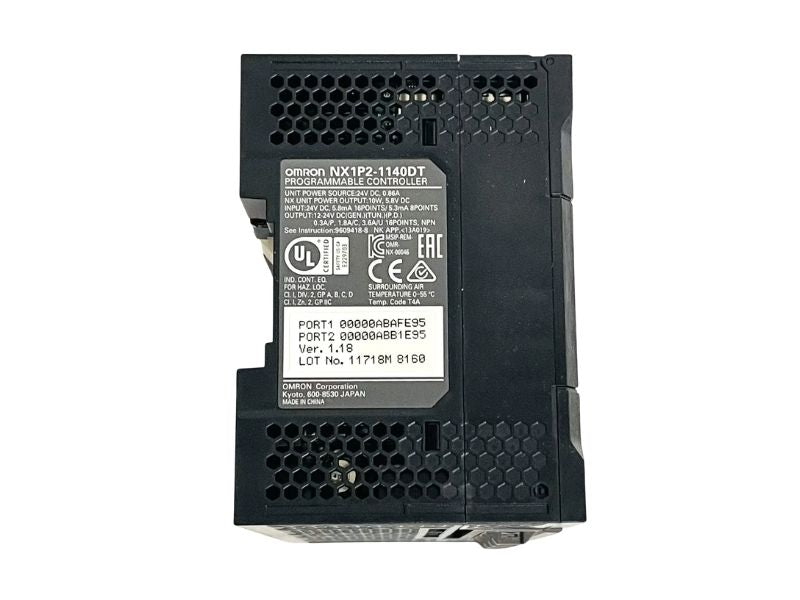

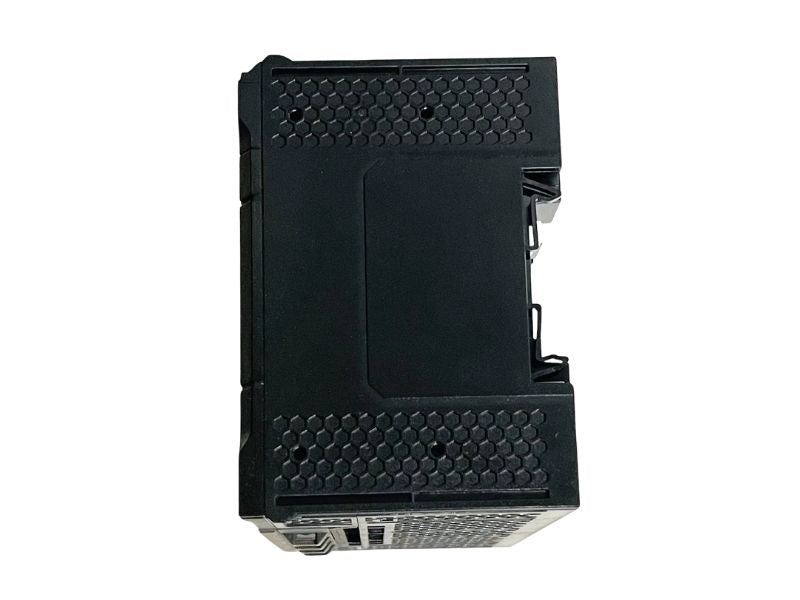

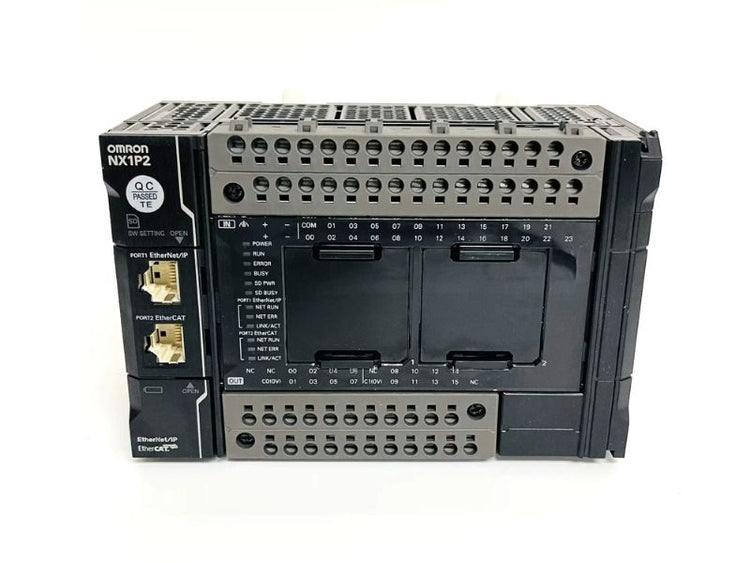

Omron NX1P2-1140DT NX Series PLC CPU with 24 Inputs 16 NPN Outputs EtherCAT
- Regular price
- $2,567.00
- Sale price
- $2,567.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX1P2-1140DT
Description
The Omron NX1P2-1140DT is a compact PLC CPU unit designed for machine automation, motion control, and sequence control applications. It features 24 digital inputs and 16 NPN transistor outputs, enabling integrated control within a single controller. With built-in EtherCAT and EtherNet/IP communication, this controller supports high-speed networking and coordinated machine operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | NX1P2-1140DT |
| Subcategory | PLC Module/Rack |
| Series | NX1P2 |
| Controller Type | PLC CPU Unit |
| Digital Inputs | 24 |
| Digital Outputs | 16 (NPN transistor) |
| Program Memory | 1.5 MB |
| Variable Memory | 2 MB |
| Communication Ports | EtherCAT, EtherNet/IP |
| Programming Languages | Ladder, Structured Text, Function Block |
| Minimum Cycle Time | 2 ms |
| Maximum Local I/O Points | 296 |
| Mounting Type | DIN Rail |
| Operating Temperature | 0°C to 55°C |
| Weight | 12.00 lbs |
Information About NX1P2-1140DT
The NX1P2-1140DT is part of the Omron NX1P2 series within the Sysmac automation platform, designed for compact machine control systems. It combines PLC functionality, motion control, and network communication in a single unit to simplify machine architecture. The controller includes built-in EtherCAT and EtherNet/IP ports for real-time communication with drives, I/O modules, and industrial networks. Designed for DIN rail mounting, it integrates seamlessly with NX series I/O units and expansion modules to create scalable automation solutions.
Key Features:
-
Integrated PLC CPU Unit: Combines sequence control, motion control, and networking in a single device.
-
Built-In Digital I/O: Includes 24 digital inputs and 16 NPN transistor outputs for direct machine control.
-
EtherCAT Motion Network: Supports synchronized motion control and real-time communication with servo drives.
-
EtherNet/IP Connectivity: Enables communication with PLC networks, HMIs, and industrial Ethernet systems.
-
1.5 MB Program Memory: Provides sufficient capacity for machine control applications.
-
High-Speed Processing: Minimum cycle time of 2 ms for responsive machine control.
-
Expansion Capability: Supports up to 8 local I/O expansion units and up to 24 units per CPU system.
-
Flexible Programming Support: Compatible with Ladder, Structured Text, and Function Block programming languages.
The NX1P2-1140DT delivers the reliability and precision required for integrated PLC control and motion automation in modern industrial machinery.
