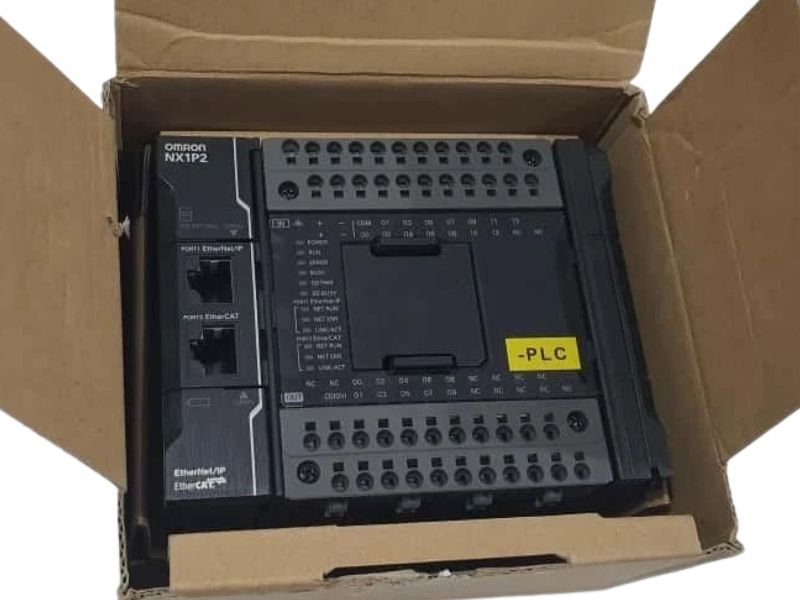

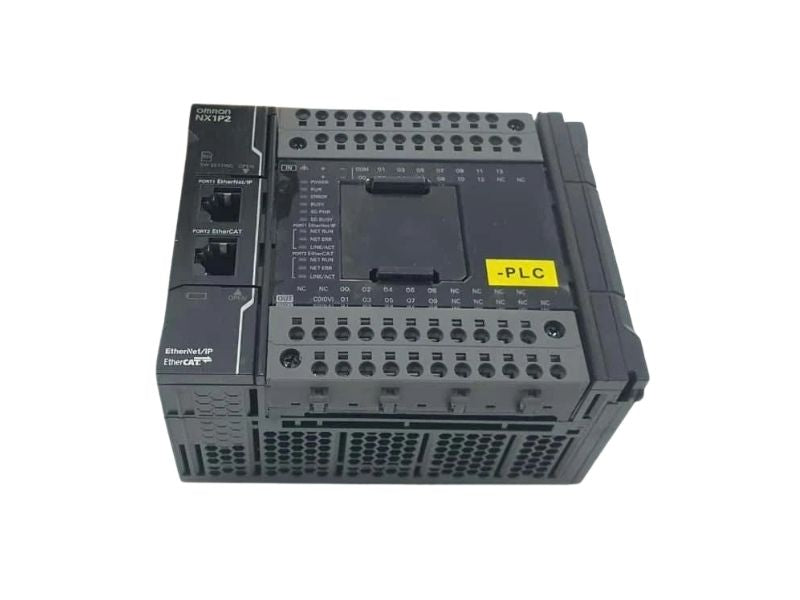

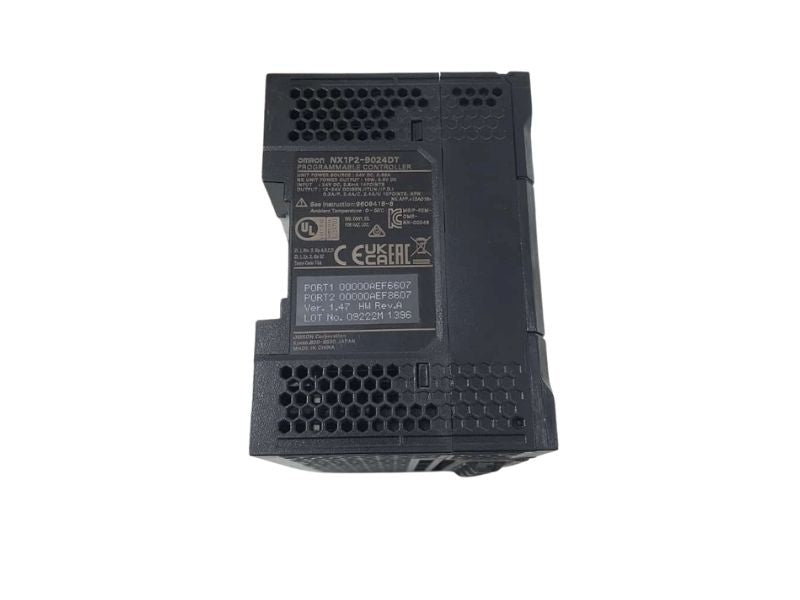

Omron NX1P2-9024DT Compact PLC Controller with 24 Built-In Digital I/O and EtherCAT
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX1P2-9024DT
Description
The Omron NX1P2-9024DT is a compact programmable logic controller (PLC) designed for machine automation and integrated motion control applications. It features 14 digital inputs and 10 transistor outputs with built-in EtherCAT and EtherNet/IP communication capabilities. This controller provides high-speed processing and flexible connectivity for modern industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | NX1P2-9024DT |
| Subcategory | PLC Controller |
| Series | NX1P2 |
| Controller Type | Programmable Logic Controller (PLC) |
| Digital Inputs | 14 |
| Digital Outputs | 10 |
| Output Type | NPN transistor |
| Supply Voltage | 20.4–28.8 VDC |
| Program Memory | 1.5 MB |
| Variable Memory | 2 MB |
| Primary Task Cycle Time | 2 ms |
| Ethernet Ports | 2 |
| Communication Protocols | EtherCAT, EtherNet/IP, Ethernet TCP/IP |
| Max Expansion Units | 8 |
| Max Remote I/O Nodes | 16 |
| Mounting Type | DIN rail |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 100 × 124 × 71 mm |
| Weight | 1.30 lbs |
Information About NX1P2-9024DT
The NX1P2-9024DT is part of the Omron Sysmac NX1P2 series of compact machine controllers designed for integrated automation environments. It combines PLC functionality, motion control capability, and industrial networking within a single DIN-rail-mounted unit. The controller includes built-in digital I/O, EtherCAT master functionality, and EtherNet/IP communication ports for seamless connection with distributed I/O and automation devices. With support for expansion modules, serial communication options, and programming through Sysmac Studio software, it is suitable for machine control, packaging equipment, and production line automation.
Key Features:
-
Integrated PLC Controller: Combines control logic, communication, and motion control functions in one compact unit.
-
Built-In Digital I/O: Includes 14 digital inputs and 10 NPN transistor outputs for machine control applications.
-
EtherCAT Master Capability: Enables high-speed communication with distributed motion devices and remote I/O modules.
-
EtherNet/IP Communication: Supports industrial Ethernet networking for integration with automation systems.
-
High Processing Performance: Provides a primary task cycle time of 2 ms for responsive control operations.
-
Expandable System Architecture: Supports up to eight expansion units and multiple communication options.
-
Flexible Serial Communication: Optional RS-232C, RS-422, or RS-485 serial communication modules can be added.
-
Sysmac Automation Platform Integration: Programmable using Sysmac Studio software for unified machine control development.
The NX1P2-9024DT delivers the reliability and precision required for compact PLC control and machine automation systems.
