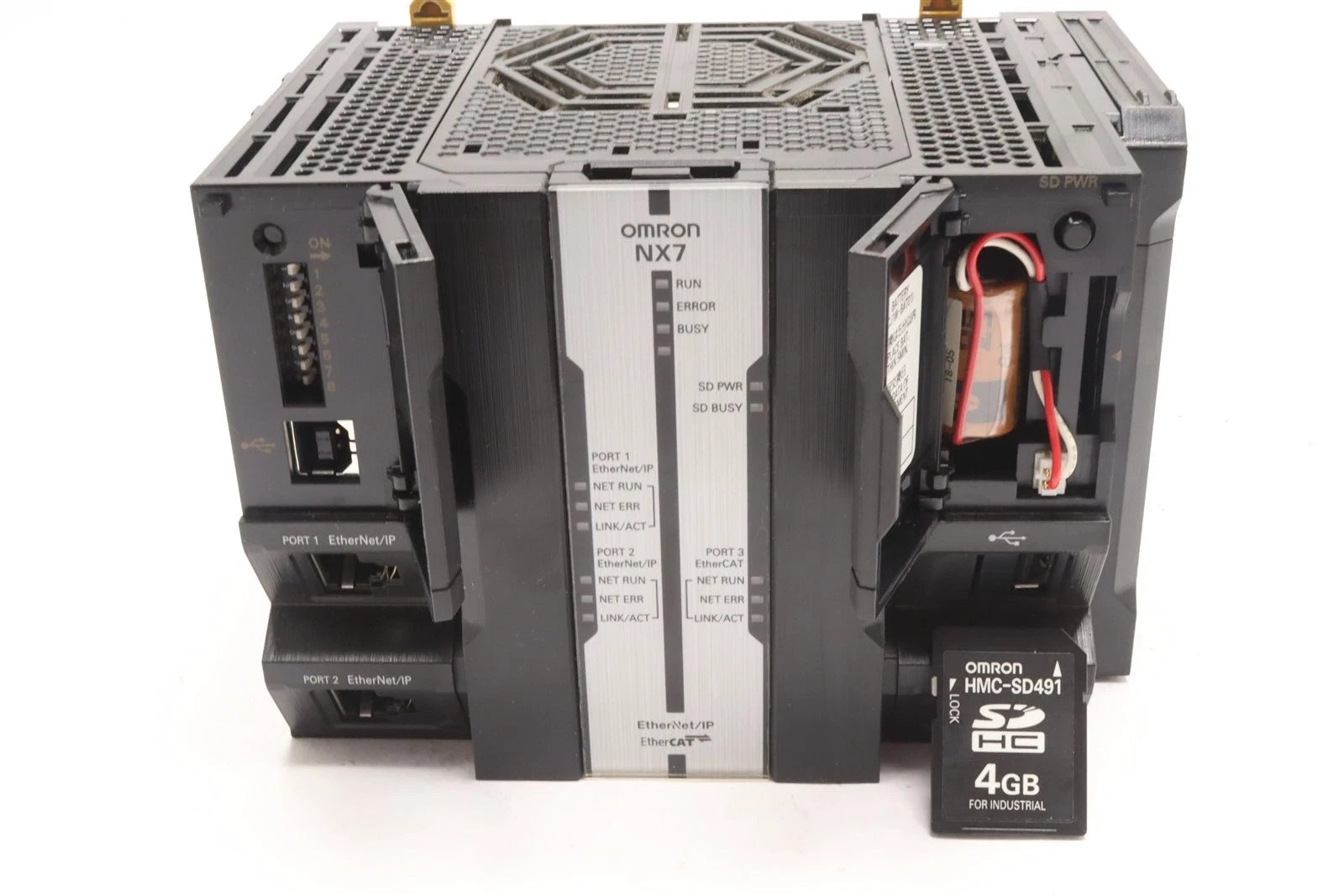

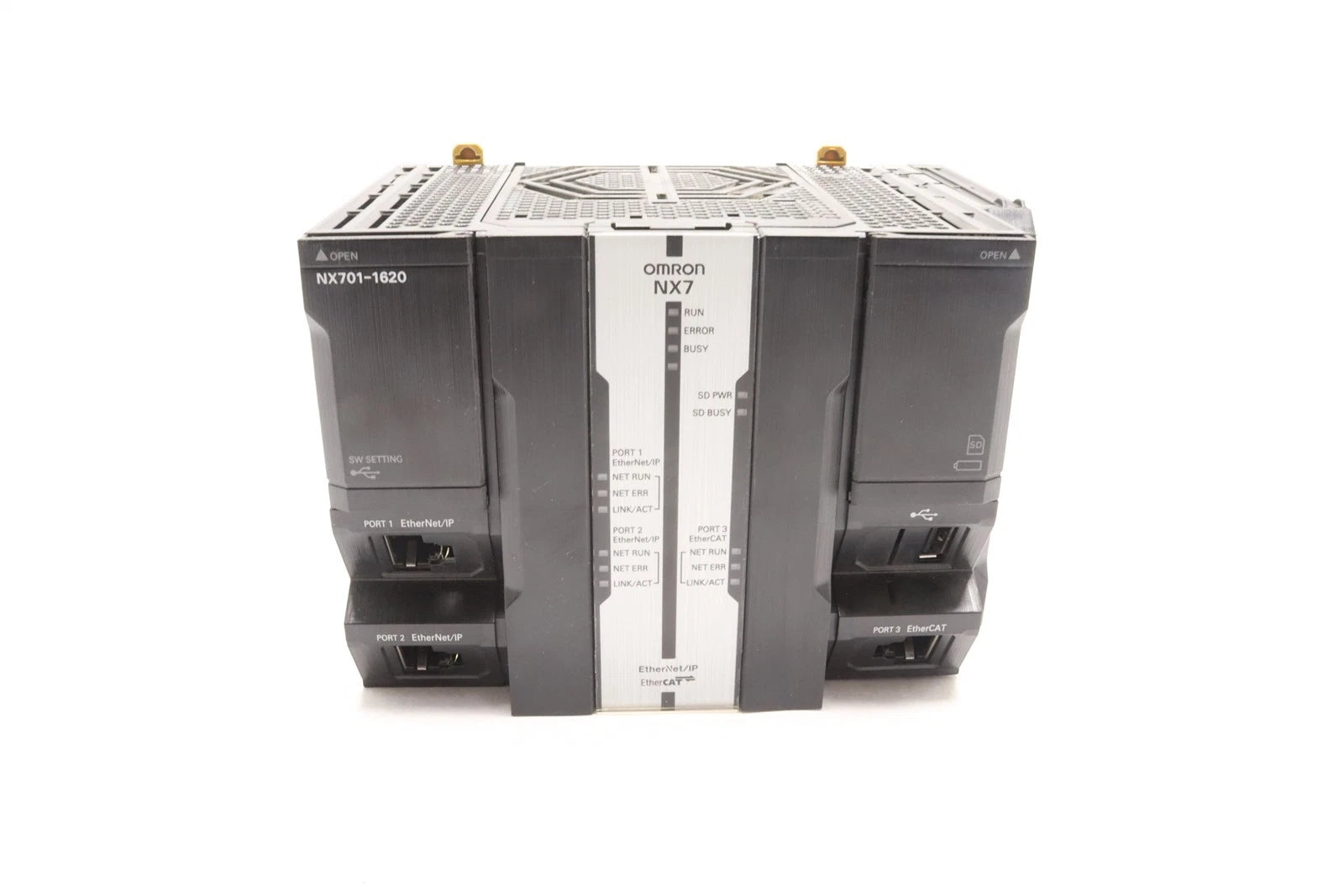

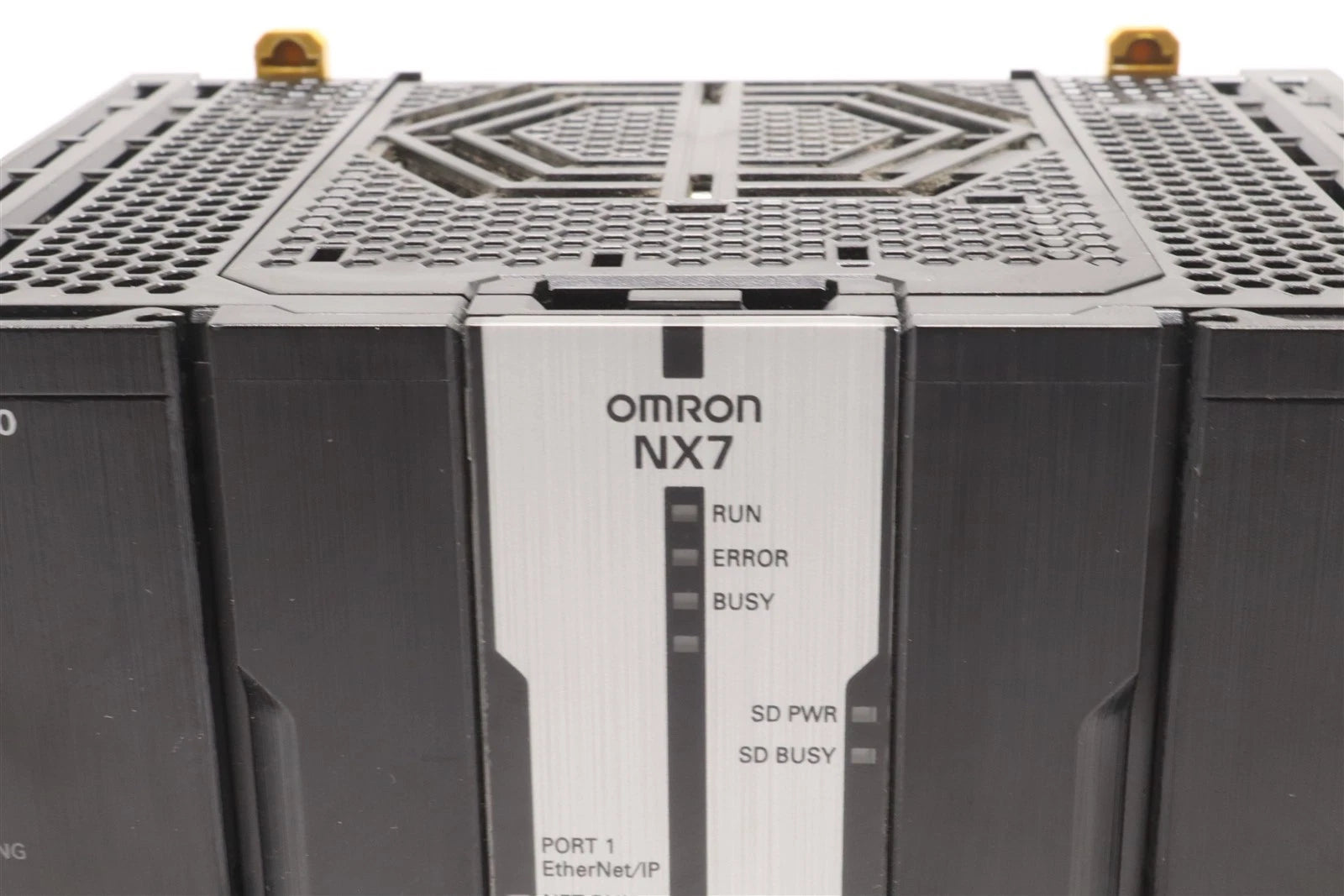

Omron NX701-1620 Machine Automation Controller with EtherCAT
- Regular price
- $10,574.00
- Sale price
- $10,574.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX701-1620
Description
The Omron NX701-1620 is a high-performance machine automation controller (PAC) designed for advanced motion control, sequence control, database connectivity, and OPC UA communication. With support for up to 128 synchronized motion axes and an ultra-fast 0.125 ms task cycle, it provides exceptional performance for robotics, packaging, manufacturing, and complex industrial automation systems.
Technical Specifications
| Condition | New / Surplus Available |
| Brand | Omron |
| Part Number | NX701-1620 |
| Category | Controls & Indicators |
| Subcategory | CPU / Control Board |
| Product Type | Machine Automation Controller (PAC) |
| Series | NX701 |
| Controller Functions | Motion Control, Sequence Control, DB Connection, OPC UA |
| Program Memory | 80 MB |
| Variable Memory | 260 MB |
| Primary Task Cycle Time | 0.125 ms |
| Maximum Synchronous Axes | 128 |
| Maximum Total Axes | 128 |
| Motion Control Network | EtherCAT |
| Communication Ports | EtherCAT Master, Dual Gigabit EtherNet/IP, Ethernet TCP/IP |
| Programming Languages | Ladder, Structured Text, Function Block |
| Programming Connection | USB, Ethernet |
| Flash Memory Port | SD Card, USB Host |
| I/O System | NX I/O Bus |
| Maximum Remote I/O Nodes | 512 |
| Expansion Units | 0 |
| Mounting Type | DIN Rail |
| Dimensions (H × W × D) | 100 × 132 × 100 mm |
| Weight | 2.00 lbs |
Information About NX701-1620
The NX701-1620 is part of Omron's Sysmac NX Series machine automation platform, engineered for high-speed, integrated machine control. It combines PLC functionality, motion control, SQL database connectivity, OPC UA communication, and industrial networking into a single controller. Featuring 80 MB of program memory, 260 MB of variable memory, and integrated EtherCAT Master with dual Gigabit EtherNet/IP ports, the controller supports up to 128 synchronized axes and 512 remote I/O nodes. Its compact DIN rail-mounted design makes it ideal for high-performance automation systems requiring deterministic control and real-time communication.
Key Features:
- NX Series Machine Automation Controller (PAC)
- Supports motion, sequence, database, and OPC UA control
- Up to 128 synchronized motion axes
- Ultra-fast 0.125 ms primary task cycle
- Built-in EtherCAT Master and dual Gigabit EtherNet/IP ports
- 80 MB program memory and 260 MB variable memory
- Supports up to 512 remote NX I/O nodes
- USB Host, USB programming, and Ethernet connectivity
- DIN rail-mounted industrial design
- Designed for advanced machine automation and Industry 4.0 applications
The NX701-1620 delivers powerful real-time machine control, high-speed networking, and scalable automation performance for demanding industrial environments.
