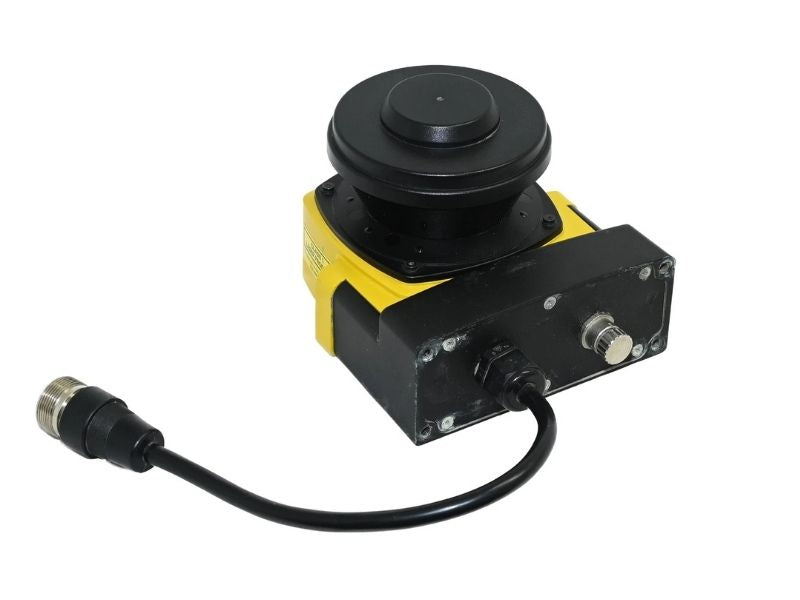

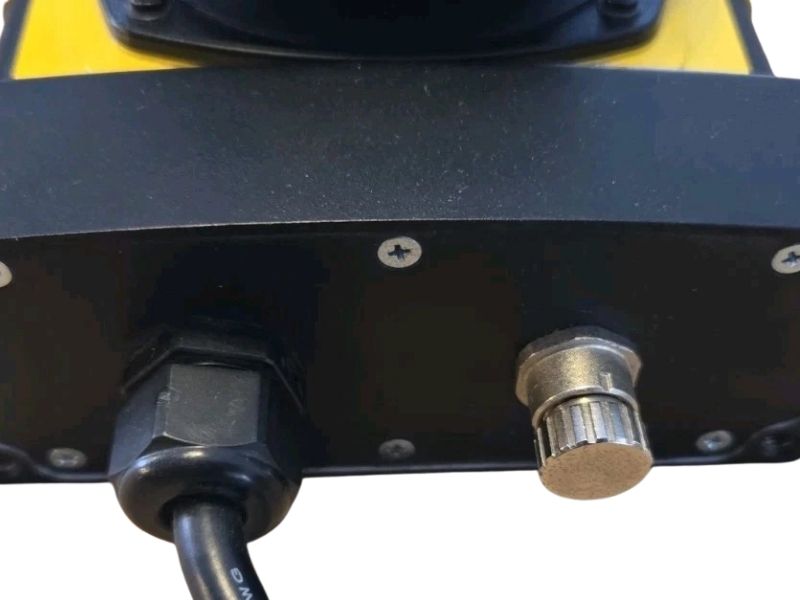

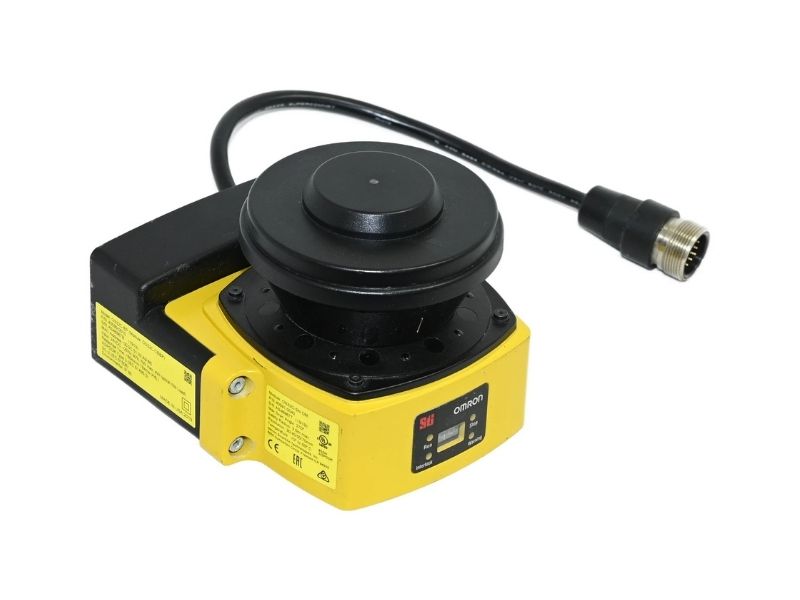

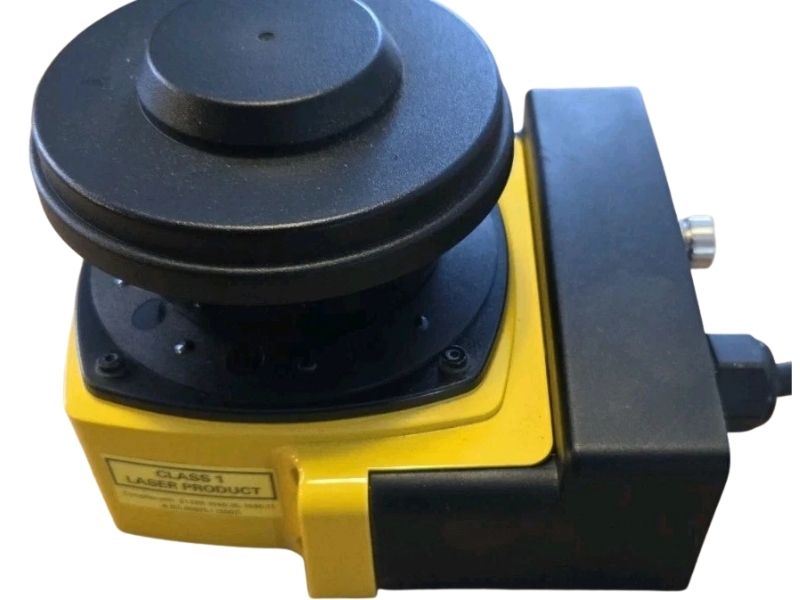

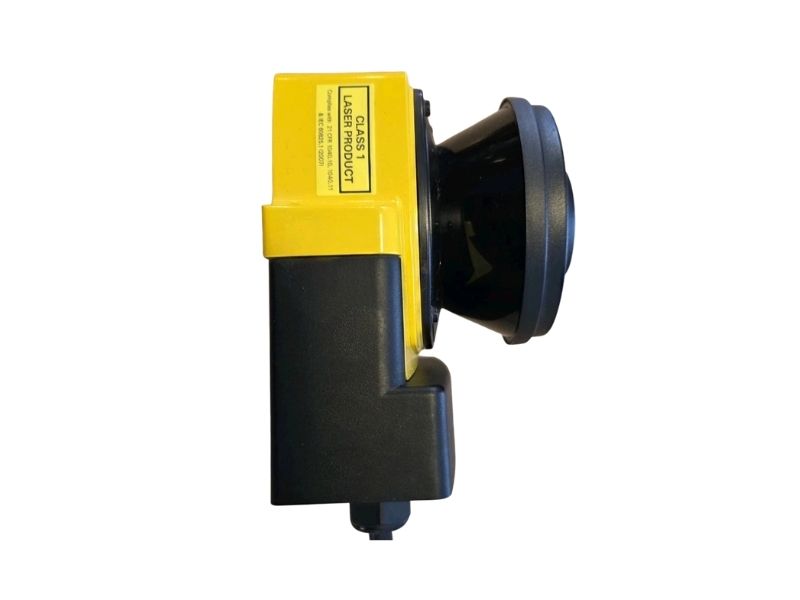

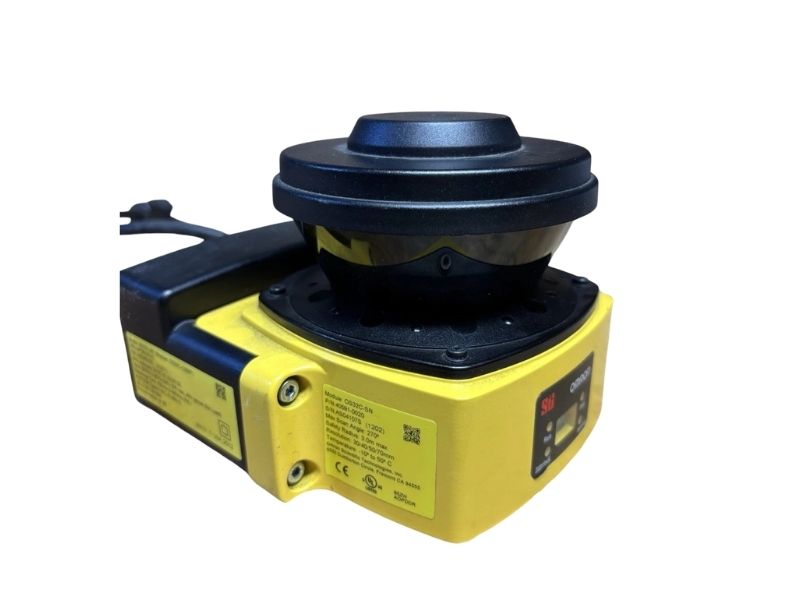

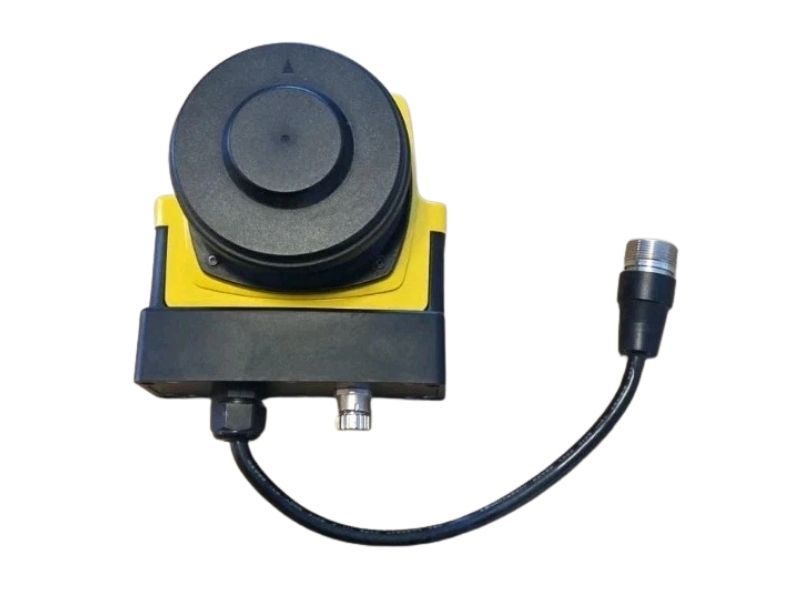

Omron OS32C-BP Safety Laser Scanner 3m Range 270° IP65
- Regular price
- $5,977.00
- Sale price
- $5,977.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OS32C-BP
Description
The Omron OS32C-BP is a safety laser scanner designed for area protection and intrusion detection in industrial automation systems. It provides a 3-meter safety range with a 270° scanning angle and supports configurable detection zones. This device is used to enhance operator safety by monitoring hazardous areas and controlling machine operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Systems |
| Part Number | OS32C-BP |
| Subcategory | Safety Laser Scanner |
| Device Type | Safety Laser Scanner |
| Safety Standard | IEC 61496-1 Type 3 |
| Safety Range | 3 m |
| Warning Range | 10 m |
| Scan Angle | 270° |
| Response Time | 80 ms |
| Detection Capability | 30 / 40 / 50 / 70 mm selectable |
| Output Type | PNP (OSSD) |
| Supply Voltage | 16.8–30 VDC |
| Max Output Current | 250 mA |
| Ingress Protection | IP65 |
| Operating Temperature | -10°C to 50°C |
| Dimensions | Approx. 143 × 105 × 105 mm |
| Weight | Approx. 1.72 kg |
Information About OS32C-BP
The OS32C-BP is part of Omron’s OS32C series of safety laser scanners, developed to meet IEC 61496-1 Type 3 safety standards. It uses laser scanning technology to detect objects within defined safety and warning zones, enabling reliable area monitoring. The unit features configurable resolution settings and multiple safety fields for flexible application design. It is commonly used in automated machinery, AGVs, and production lines where personnel protection and collision avoidance are required.
Key Features:
- Type 3 safety scanner: Complies with IEC 61496-1/-3 safety standards
- 3 m safety range: Provides reliable protection for machine access areas
- 270° scanning angle: Enables wide-area coverage with a single device
- Configurable detection zones: Supports multiple safety and warning field settings
- High resolution detection: Adjustable object resolution (30–70 mm)
- Fast response time: 80 ms response for rapid hazard detection
- PNP safety outputs: Provides reliable OSSD output signals
- IP65 protection: Suitable for industrial environments with dust and water exposure
The OS32C-BP delivers the reliability and precision required for machine safety and area monitoring applications.
