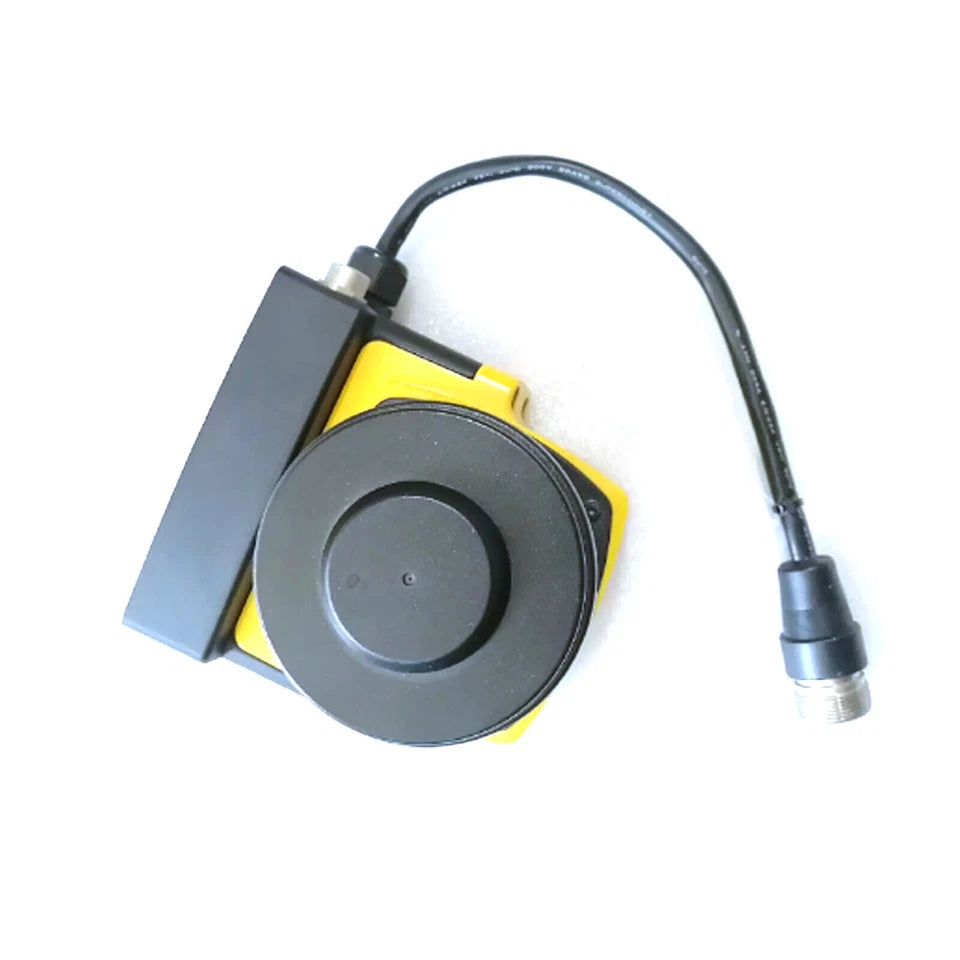

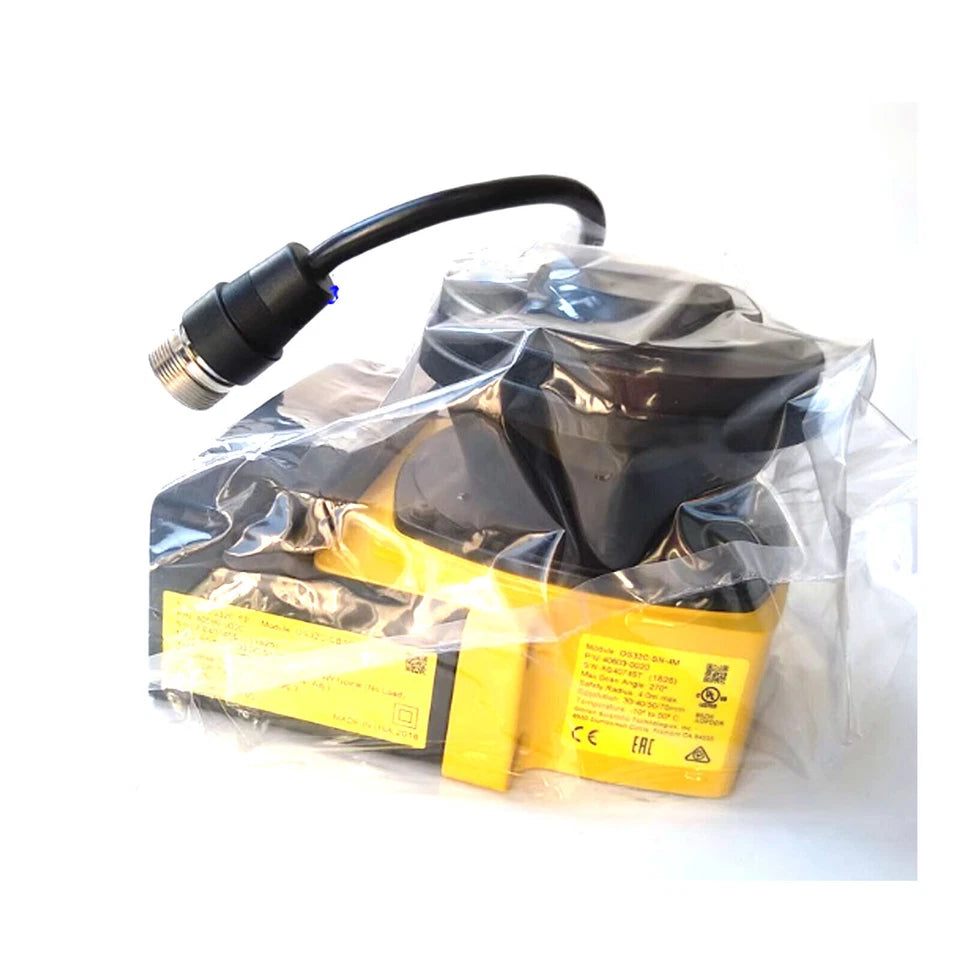

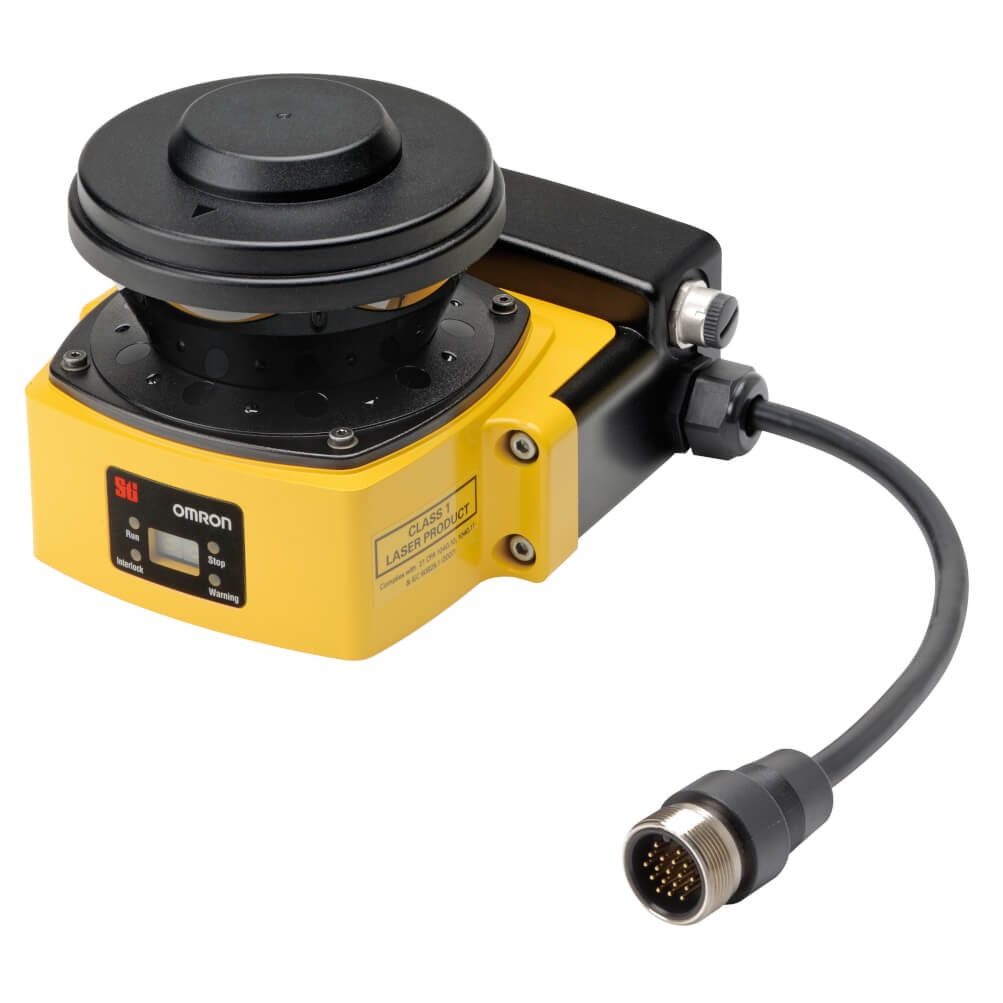

Omron OS32C-SP1-DM-4M Safety Laser Scanner 4m Range 270° EtherNet/IP IP65
- Regular price
- $6,779.00
- Sale price
- $6,779.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OS32C-SP1-DM-4M
Description
The Omron OS32C-SP1-DM-4M is a safety laser scanner designed for area protection and hazard detection in industrial environments. It provides a maximum safety range of 4 meters and a warning range of up to 15 meters with a 270° scanning angle. This device is used for safeguarding personnel and equipment in automated machinery and robotic systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Business & Industrial |
| Part Number | OS32C-SP1-DM-4M |
| Subcategory | Safety Laser Scanners |
| Series | OS32C |
| Safety Category | Category 3, PLd, SIL2 |
| Safety Range | 4 m |
| Warning Range | 15 m |
| Scanning Angle | 270° |
| Detection Capability | 30 / 40 / 50 / 70 mm |
| Response Time | 80 ms |
| Number of Outputs | 4 (2 Safety, 1 Warning, 1 Auxiliary) |
| Communication Protocol | EtherNet/IP |
| Supply Voltage | 16.8–30 VDC |
| Max Output Current | 250 mA |
| Laser Class | Class 1 |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 143 × 105 × 105 mm |
| Weight | 1.3 kg |
Information About OS32C-SP1-DM-4M
The OS32C-SP1-DM-4M is part of Omron’s OS32C series of safety laser scanners, developed for machine safety and access protection applications. It operates using a Class 1 laser with configurable detection zones and object resolution settings to suit different safety requirements. The scanner supports EtherNet/IP communication, allowing integration into industrial control systems and safety networks. Its IP65-rated enclosure and compact design enable reliable operation in demanding industrial environments.
Key Features:
-
4 m safety protection range: Provides reliable monitoring of hazardous zones around machinery.
-
15 m warning zone: Enables early detection of approaching objects or personnel.
-
270° scanning angle: Covers a wide detection area for comprehensive safety coverage.
-
Configurable object resolution: Adjustable detection capability (30, 40, 50, 70 mm) for different applications.
-
EtherNet/IP communication: Supports integration with industrial automation and safety systems.
-
Dual safety outputs (OSSD): Ensures reliable signal output for safety control systems.
-
IP65 protection rating: Suitable for use in harsh industrial environments.
-
Class 1 laser safety: Provides safe operation without additional protective measures.
The OS32C-SP1-DM-4M delivers the reliability and precision required for machine safety and area protection in industrial automation systems.
