OS32C-SP1 | Omron OS32C Series Safety Laser Scanner 3 m Range 270° Scan
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OS32C-SP1
Description

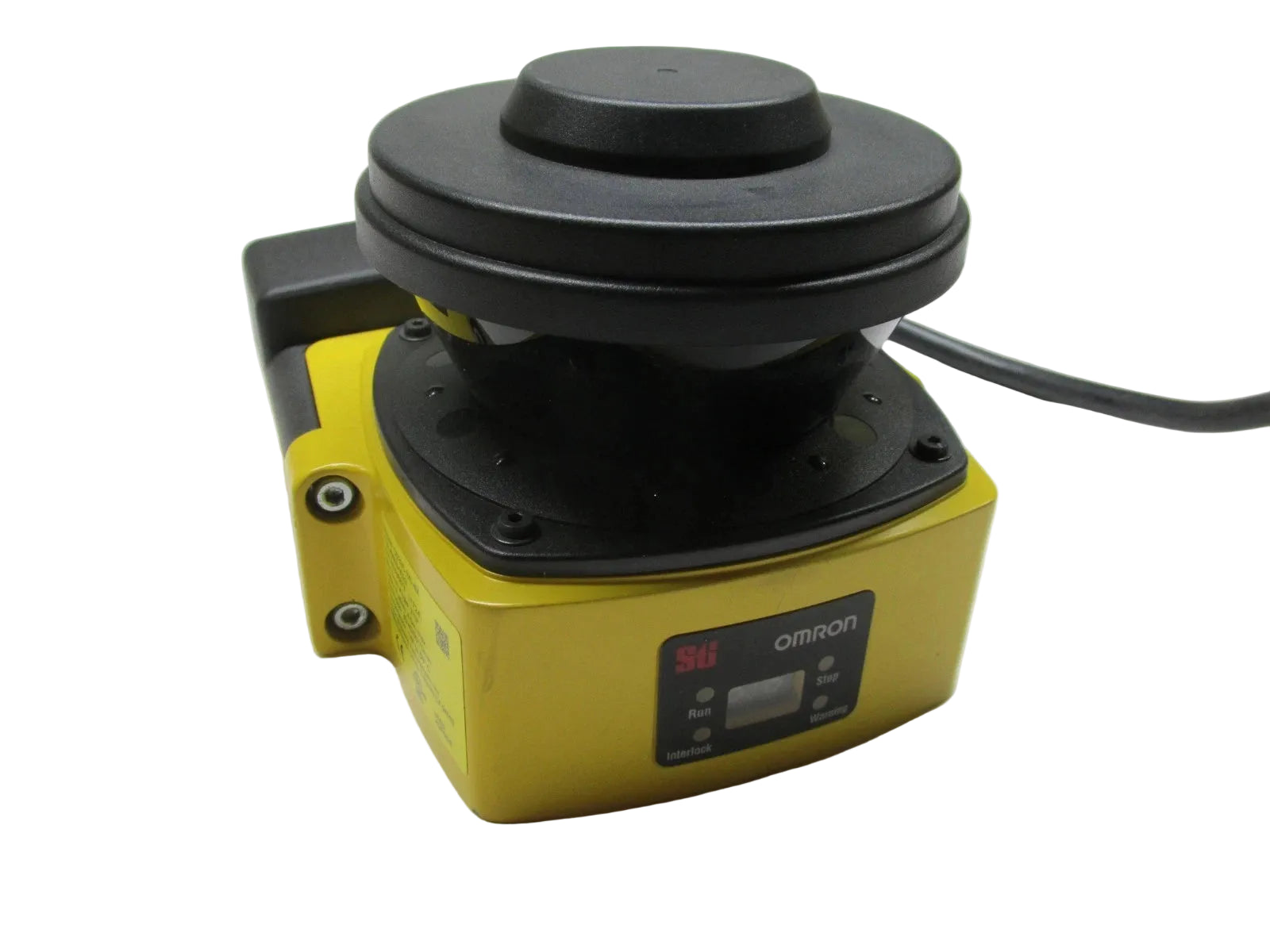

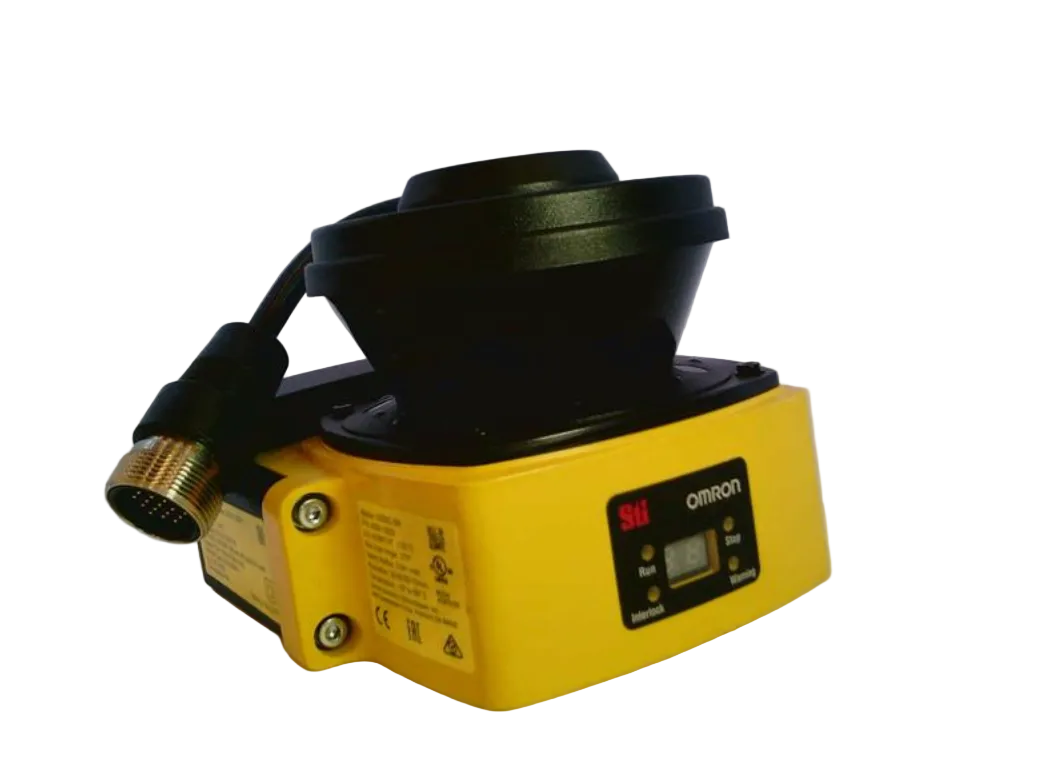

The Omron OS32C-SP1 is a compact safety laser scanner designed to provide reliable area and access protection in industrial environments. With a 270-degree scanning angle and up to a 3-meter operating range, it continuously monitors hazardous zones to detect personnel or objects. This device is commonly used in machine safeguarding applications where precise, non-contact safety monitoring is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Systems |
| Part Number | OS32C-SP1 |
| Subcategory | Safety Laser Scanner |
| Series | OS32C Series |
| Device Type | Safety Laser Scanner |
| Operating Range | Up to 3 m |
| Scan Angle | 270° |
| Response Time | 80–680 ms |
| Supply Voltage | 24 VDC |
| Power Consumption | 5 W max |
| Cable Entry | Side entry |
| Technology | Laser time-of-flight scanning |
| Reference Code | 40589-0021 |
| Weight | 2.58 lbs |
Information About OS32C-SP1
The OS32C-SP1 is part of Omron’s OS32C Series safety laser scanners, engineered for robust performance in industrial safety systems. It features a rugged housing with side cable entry, making it suitable for space-constrained installations. The scanner operates on 24 VDC power and uses time-of-flight laser technology to accurately detect intrusions within defined safety zones. It is compatible with safety controllers and safety relays for integration into machine safety architectures.
Key Features:
- OS32C Series Safety Scanner: Designed for industrial machine safety and area monitoring.
- 270-Degree Scan Angle: Provides wide-area coverage for effective hazard detection.
- 3 m Operating Range: Suitable for short- to medium-range safety applications.
- Fast Response Time: Adjustable response time from 80 to 680 ms for safety compliance.
- Side Cable Entry: Simplifies wiring in compact or panel-mounted installations.
- 24 VDC Power Supply: Compatible with standard industrial control voltages.
- Low Power Consumption: Rated at 5 W maximum for efficient operation.
The OS32C-SP1 delivers the reliability and precision required for industrial safety laser scanning and machine protection applications.
