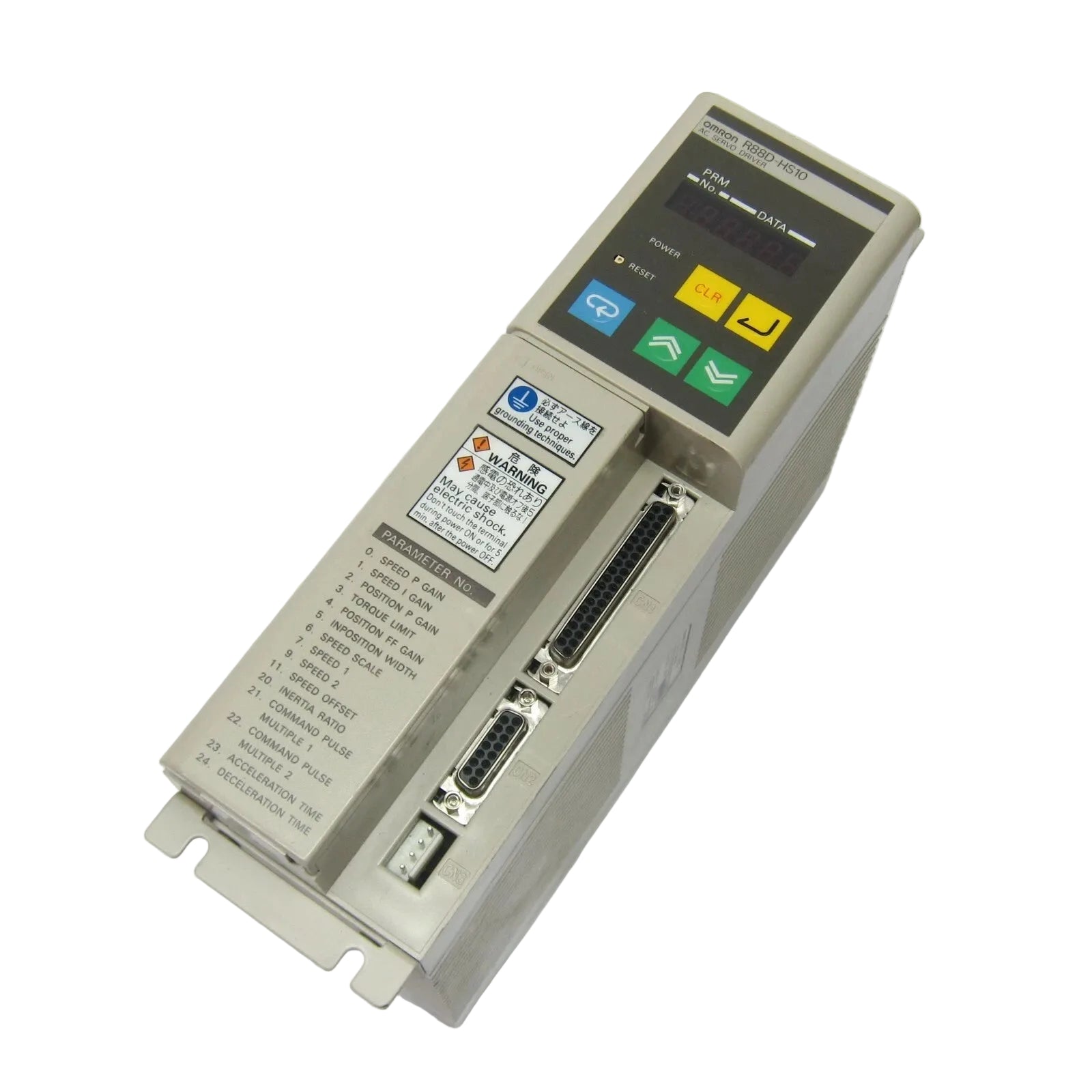

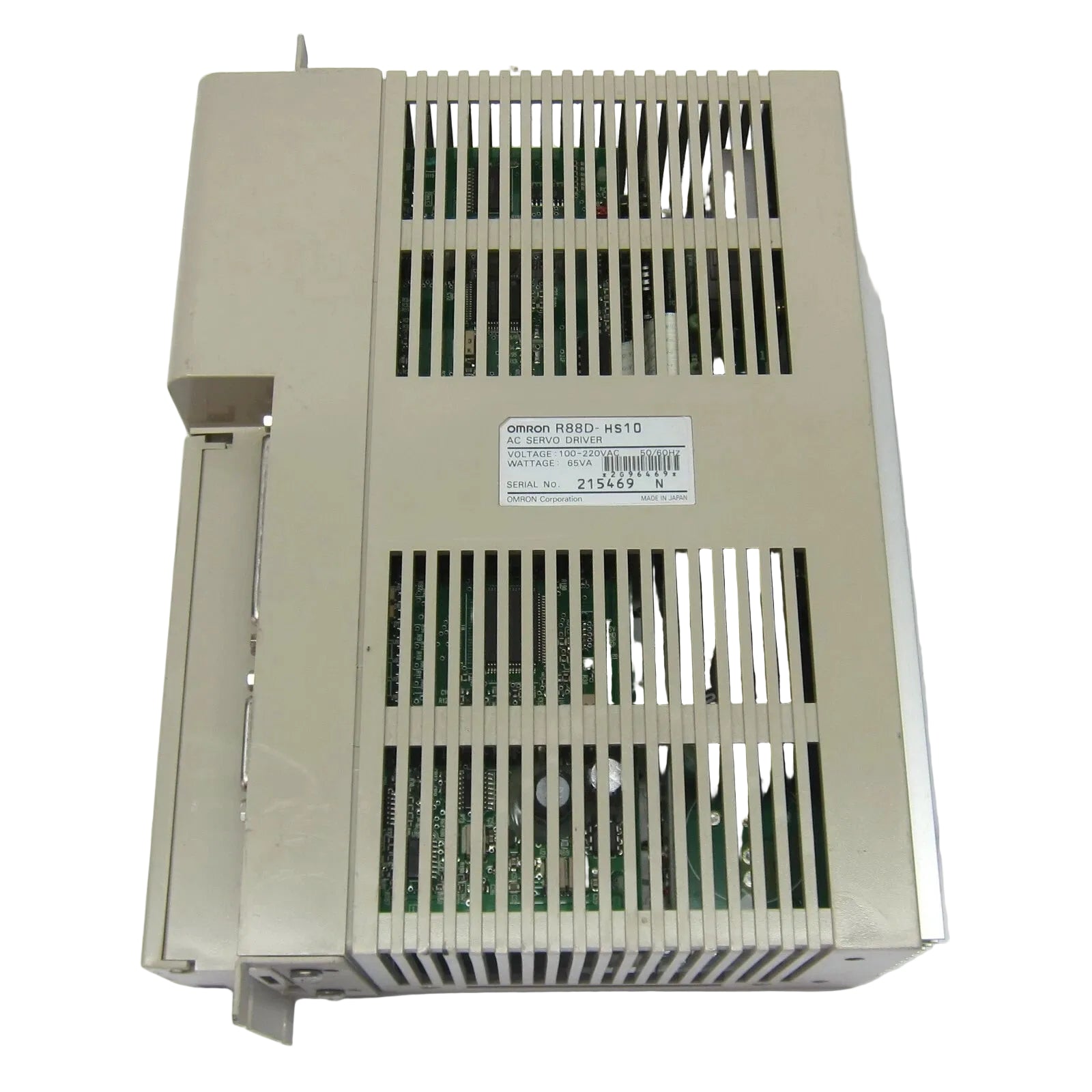

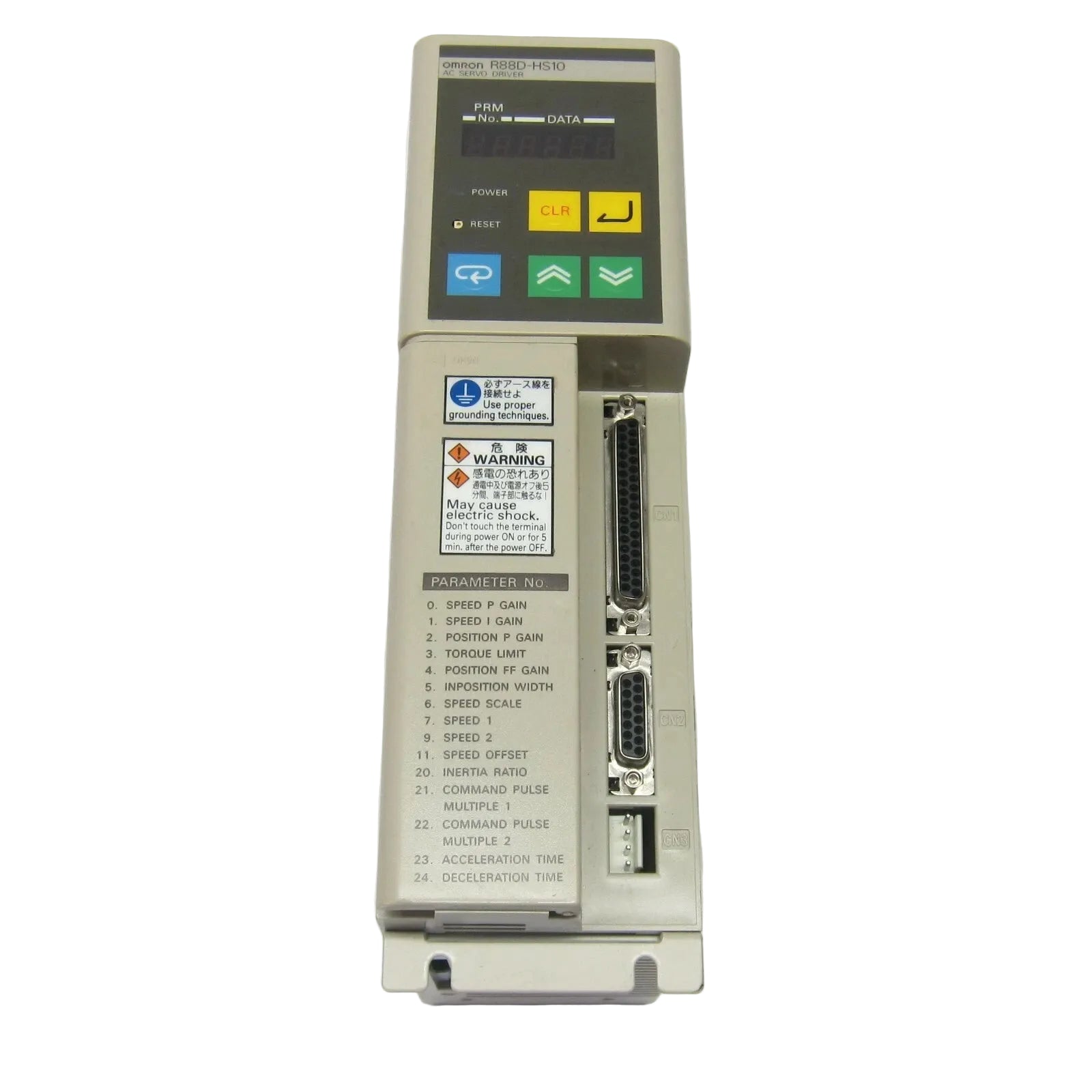

R88D-HS10 | Omron R88D AC Servo Drive Magnetic Encoder Power-Separated Design
- Regular price
- $2,217.00
- Sale price
- $2,217.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88D-HS10
Description
The Omron R88D-HS10 is an AC servo drive designed for precise motor control in industrial motion applications. It features a power-unit-separated architecture and supports magnetic encoder feedback for accurate speed and position control. The R88D-HS10 is engineered for stable operation across a wide control power range and demanding operating conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | R88D-HS10 |
| Subcategory | Servo Drives |
| Product Type | AC Servo Drive |
| Product Line | R88D |
| Drive Type | Power unit separated servo drive |
| Encoder Type | Magnetic encoder |
| Encoder Resolution | 2,000 pulses per revolution |
| Rated Output Current | 2.5 A |
| Maximum Output Current | 9.5 A |
| Rated Control Power | 85–263 VAC |
| Speed Control Range | 17:40 |
| Applicable Load Inertia | ≤10× rotor inertia |
| Insulation Resistance | 5 MΩ at 1,000 VDC |
| Ambient Operating Temperature | 0 to 55°C (non-condensing) |
| Storage Temperature | -10 to 75°C (non-condensing) |
| Humidity Tolerance | 35–85% RH (non-condensing) |
| Protective Features | Overvoltage, overload, overcurrent, abnormal speed |
| Weight | 4.75 lbs (2.15 kg) |
Information About R88D-HS10
The R88D-HS10 is part of Omron’s R88D servo drive series, developed for high-reliability motion control systems. It is designed to operate with magnetic encoders and supports applications where the load inertia does not exceed ten times the rotor inertia. The drive incorporates multiple protective functions to safeguard against abnormal electrical and operational conditions. Its environmental tolerance and insulation characteristics make it suitable for long-term use in industrial automation environments.
Key Features:
- Power Unit Separated Design: Allows flexible system layout and improved thermal management.
- Magnetic Encoder Compatibility: Supports accurate feedback using a 2,000 P/R magnetic encoder.
- Wide Control Power Range: Operates with rated control power from 85 to 263 VAC.
- Robust Output Performance: Provides 2.5 A rated output current with up to 9.5 A maximum output.
- Advanced Protection Functions: Includes overvoltage, overload, overcurrent, and abnormal speed protection.
- Load Inertia Support: Handles applications with load inertia up to ten times the rotor inertia.
- Industrial Environmental Tolerance: Designed for operation in non-condensing temperature and humidity ranges.
The R88D-HS10 delivers the reliability and precision required for industrial servo motion control applications.
