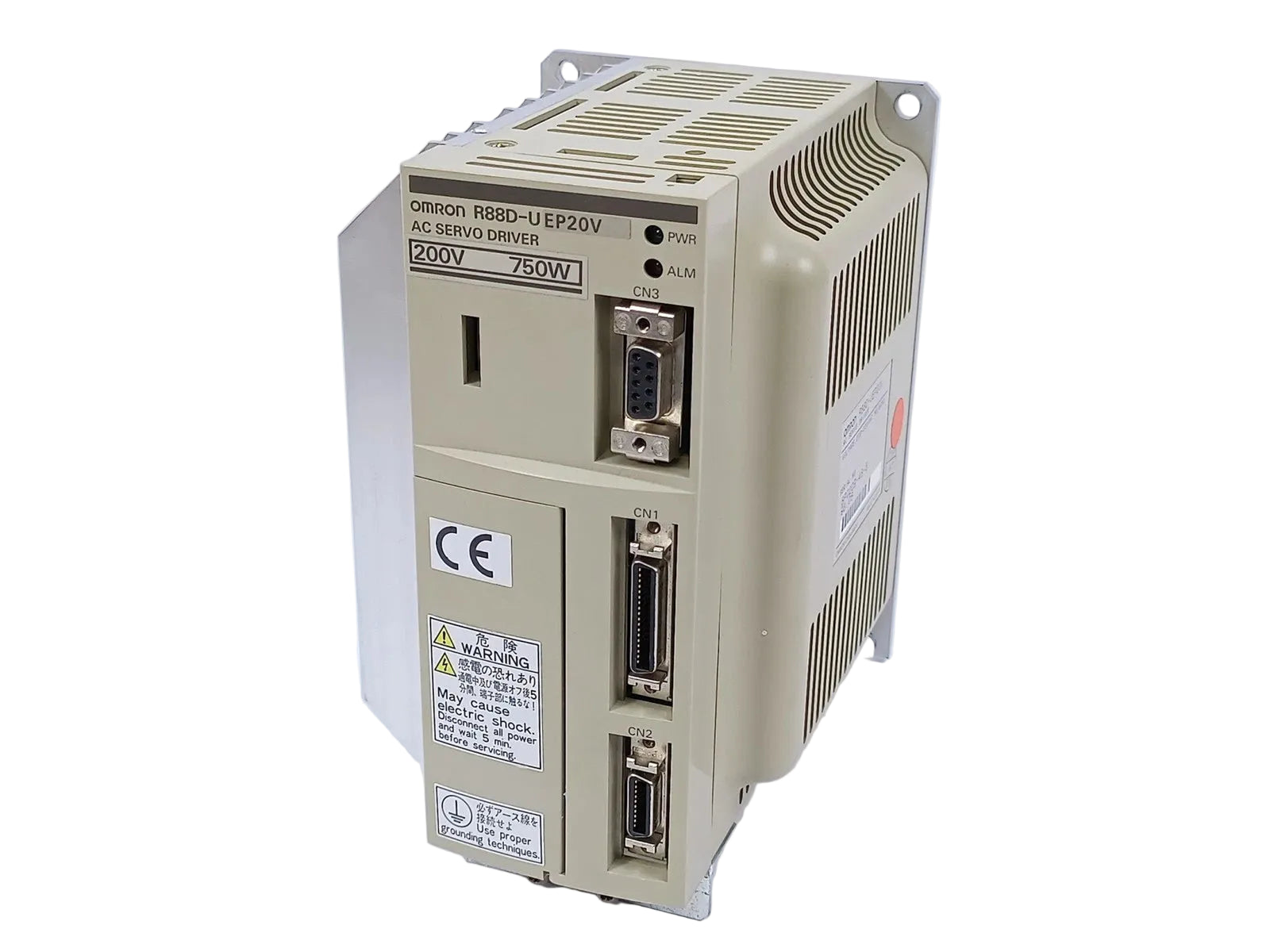

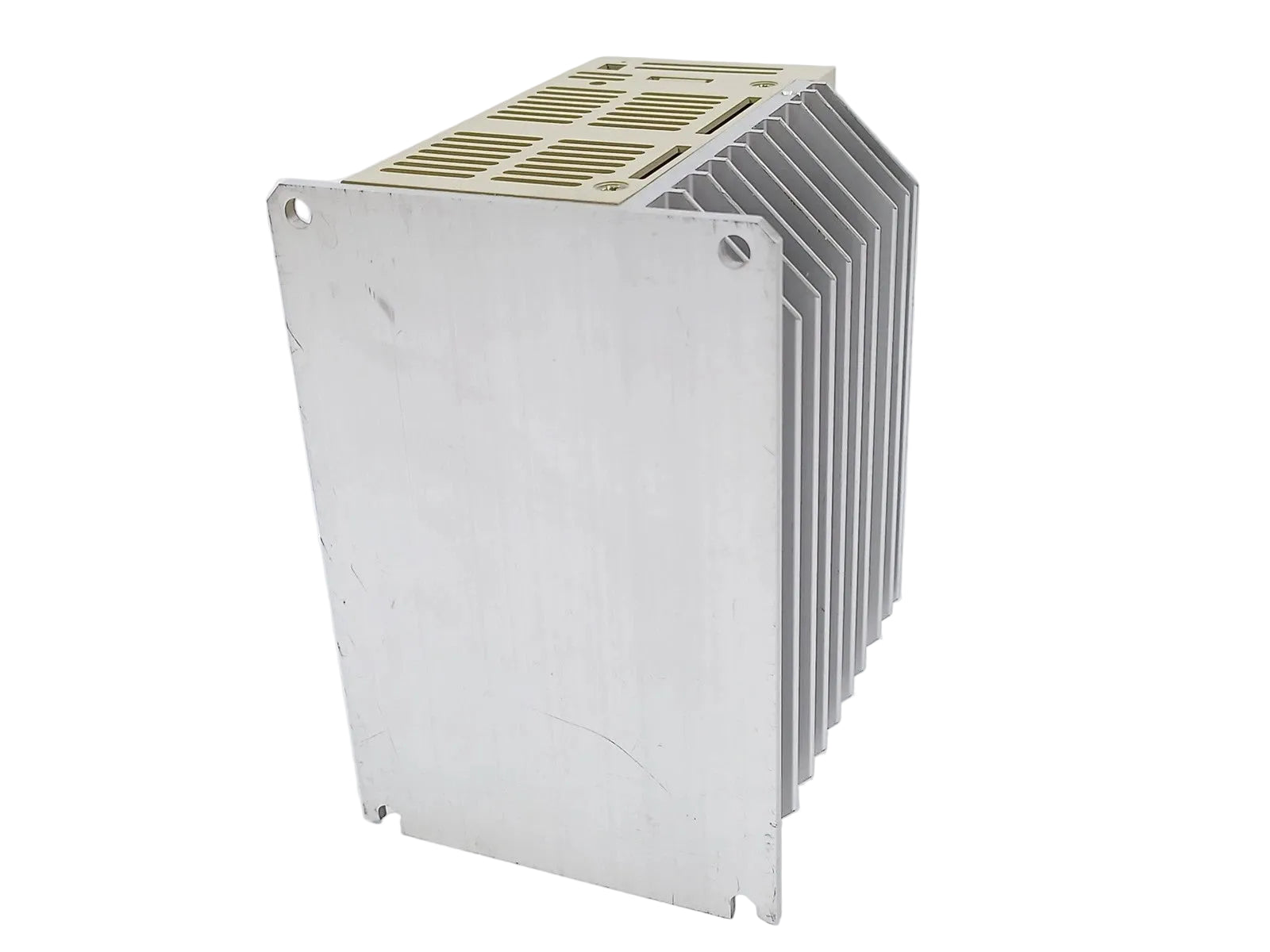

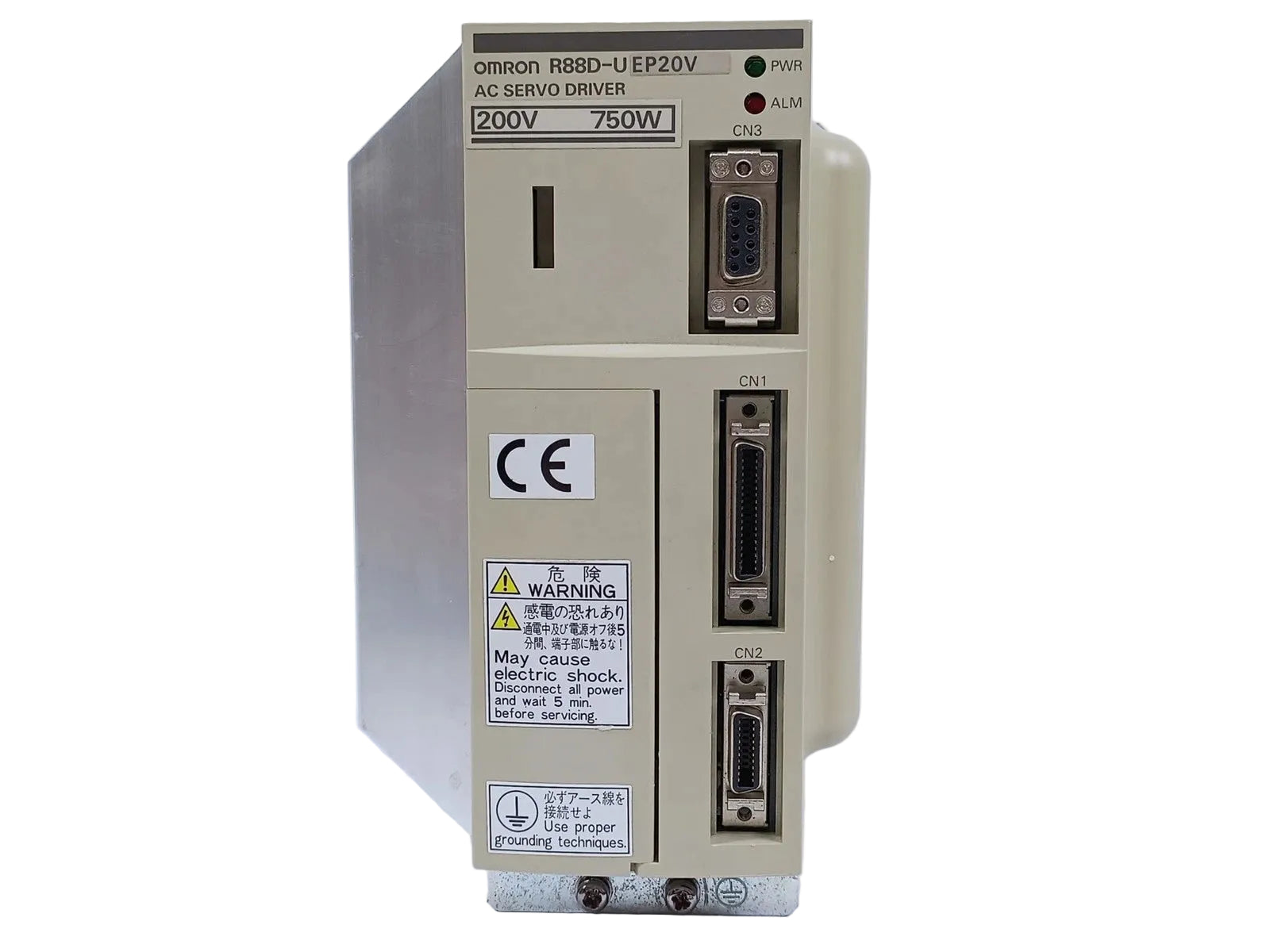

R88D-UEP20V | Omron 750 W AC Servo Driver, 200 VAC Single-Phase
- Regular price
- $2,789.00
- Sale price
- $2,789.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88D-UEP20V
Description
The Omron R88D-UEP20V AC servo driver is a compact drive unit designed to control compatible Omron servo motors up to 750 W. It operates on a 200 VAC single-phase input and processes pulse train command signals for accurate speed and position control. This servo driver is suitable for precision motion applications in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | R88D-UEP20V |
| Subcategory | AC Servo Drives |
| Product Line | R88D |
| Product Type | AC Servo Driver |
| Supported Motor Capacity | Up to 750 W |
| Input Voltage | 200 VAC |
| Input Frequency | 50/60 Hz |
| Input Phases | Single-Phase |
| Maximum Output Current | 19.7 A |
| Command Signal Type | Pulse Train Input |
| Ambient Operating Temperature | 0°C to 55°C |
| Ambient Storage Temperature | -10°C to 75°C |
| Ambient Operating Humidity | 35% to 85% RH, non-condensing |
| Ambient Storage Humidity | 35% to 85% RH, non-condensing |
| Operating Environment | No corrosive gases |
| Weight | 2.31 lbs (1.05 kg) |
Information About R88D-UEP20V
The R88D-UEP20V is part of Omron’s R88D servo drive series, developed to pair with R88M-series AC servo motors. It is engineered to deliver stable motor control using pulse train input commands, supporting precise positioning and motion profiles. The drive accommodates single-phase AC power and provides controlled output current to match supported motor capacities. Designed for industrial environments, it operates reliably within specified temperature and humidity ranges and is intended for use in non-corrosive atmospheres.
Key Features:
- 750 W Motor Support: Designed to drive AC servo motors with capacities up to 750 watts.
- Pulse Train Command Input: Enables accurate motion control using high-speed pulse signals.
- Single-Phase AC Input: Operates on 200 VAC, simplifying power integration in control panels.
- High Output Current Capability: Supports up to 19.7 A maximum output current for dynamic motor control.
- R88D Series Compatibility: Optimized for use with Omron R88M-series AC servo motors.
- Industrial Temperature Range: Rated for continuous operation from 0°C to 55°C.
- Compact Drive Design: Suitable for installation in space-constrained automation cabinets.
The R88D-UEP20V delivers the reliability and precision required for servo motor control in industrial motion and positioning systems.
