R88M-1M2K020C-S2 | Omron 1S Series 2kW AC Servo Motor 2000RPM Absolute Encoder
- Regular price
- $2,067.00
- Sale price
- $2,067.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-1M2K020C-S2
Description

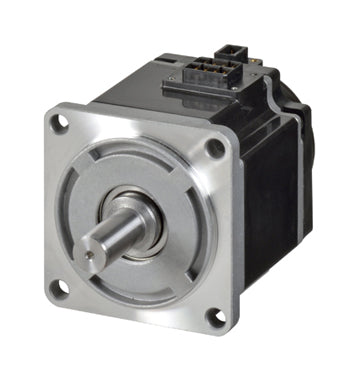

The Omron R88M-1M2K020C-S2 is a 2 kW AC servo motor designed for high-performance motion control in industrial automation systems. It operates at a rated speed of 2000 RPM and features an integrated absolute encoder for precise position feedback. This servo motor is commonly used in machinery requiring accurate torque control and reliable motion performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Servo Products |
| Part Number | R88M-1M2K020C-S2 |
| Subcategory | Servo Motor |
| Series | 1S Series |
| Motor Type | AC servo motor |
| Rated Power | 2 kW |
| Rated Voltage | 400–480 VAC |
| Rated Speed | 2000 RPM |
| Rated Torque | 9.55 Nm |
| Stall Torque | 28.7 Nm |
| Encoder Type | Absolute encoder |
| Shaft Type | Straight shaft with key and tap |
| Shaft Diameter | 22 mm |
| Shaft Length | 51 mm |
| Mounting Type | Flange mount |
| Current Rating | 5.7 A |
| Rotor Inertia | 12.2 kg·m² |
| Dimensions | 215 × 130 × 183 mm |
| Weight | 10.00 lbs |
Information About R88M-1M2K020C-S2
The R88M-1M2K020C-S2 belongs to the Omron 1S series of advanced servo motors engineered for industrial motion control applications. It is designed to operate with compatible Omron servo drives, delivering stable torque output and precise positioning in automated machinery. The motor incorporates an absolute encoder that allows accurate position detection without requiring homing after power-up. Its flange-mounted design and keyed shaft with tap enable secure mechanical coupling and easy integration into automation equipment.
Key Features:
-
High Power Servo Motor: Provides 2 kW rated output suitable for demanding motion control applications.
-
Absolute Encoder Feedback: Integrated encoder ensures precise position detection and accurate motion control.
-
High Torque Performance: Rated torque of 9.55 Nm with stall torque up to 28.7 Nm for dynamic load conditions.
-
Industrial Voltage Rating: Operates with a 400–480 VAC power supply used in industrial environments.
-
Robust Mechanical Construction: Designed with a keyed shaft and center tap for secure coupling to drive mechanisms.
-
Flange Mount Design: Allows installation in industrial machinery and automation equipment.
-
Stable Speed Operation: Rated speed of 2000 RPM supports controlled and efficient motion performance.
-
Compatible with Omron Servo Systems: Designed for use with Omron servo drive platforms for integrated motion solutions.
The R88M-1M2K020C-S2 delivers the reliability and precision required for high-performance motion control in industrial automation systems.
