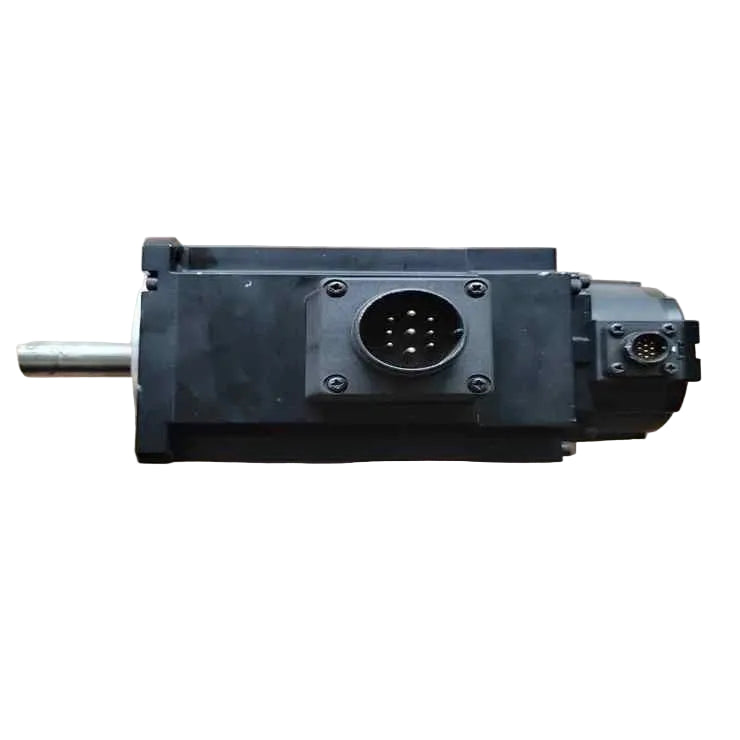

R88M-K1K530H-BS2-Z | Omron Accurax G5 AC Servo Motor 1.5kW 200VAC with Brake
- Regular price
- $2,122.00
- Sale price
- $2,122.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-K1K530H-BS2-Z
Description
The Omron R88M-K1K530H-BS2-Z is a high-performance AC servo motor from the Accurax G5 series, designed for precise and dynamic motion control in industrial automation systems. With a rated output of 1.5 kW and 200 VAC operation, it delivers high torque density and smooth rotation for demanding applications. This motor includes an absolute encoder and integrated brake for accurate positioning and safe stopping.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Servo Motors |
| Part Number | R88M-K1K530H-BS2-Z |
| Subcategory | AC Servo Motors |
| Series | Accurax G5 |
| Motor Type | AC servo motor |
| Rated Output Power | 1.5 kW |
| Rated Voltage | 200 VAC |
| Rated Speed | 3000 rpm |
| Rated Torque | Approx. 4.8 Nm |
| Peak Torque | Approx. 14.3 Nm |
| Encoder Type | Absolute encoder |
| Encoder Resolution | High-resolution (17-bit class) |
| Brake | Integrated holding brake |
| Ingress Protection | IP67 |
| Flange Size | 130 mm square |
| Shaft Type | Straight shaft with key |
| Operating Temperature | 0°C to 40°C |
| Weight | Approx. 6.5 kg |
Information About ![]()
R88M-K1K530H-BS2-Z
The R88M-K1K530H-BS2-Z is part of Omron’s Accurax G5 servo motor family, engineered for advanced motion control with low cogging and high efficiency. It incorporates Omron’s patented motor design technologies to reduce torque ripple and improve responsiveness. The motor is designed to work seamlessly with Accurax G5 servo drives and supports multiple control networks depending on the drive used. With an IP67-rated construction, it is suitable for harsh industrial environments requiring durability and reliability.
Key Features:
- Accurax G5 Series Motor: Designed for high-precision and high-speed servo applications.
- 1.5 kW Rated Output: Provides strong performance for medium to heavy-duty motion control tasks.
- 200 VAC Operation: Compatible with standard industrial servo drive power systems.
- High Rated Speed: Optimized for fast positioning and smooth continuous motion.
- Absolute Encoder Equipped: Ensures precise position feedback without homing after power loss.
- Integrated Holding Brake: Supports load holding and safe stop functionality.
- IP67 Protection Rating: Dust-tight and water-resistant for demanding environments.
- Low Torque Ripple Design: Minimizes vibration and improves motion accuracy.
- Robust Mechanical Construction: Built for long service life in continuous-duty automation systems.
The R88M-K1K530H-BS2-Z delivers the reliability and precision required for high-performance servo motion control in industrial automation.
