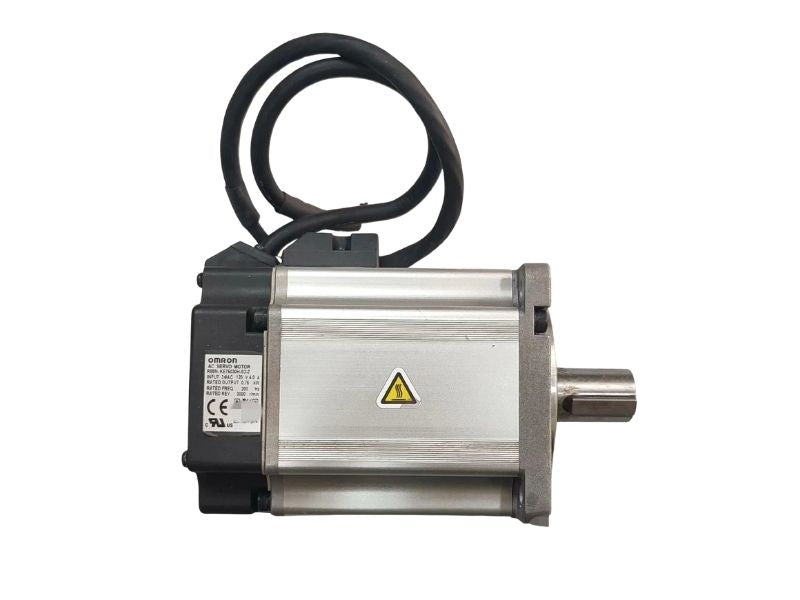

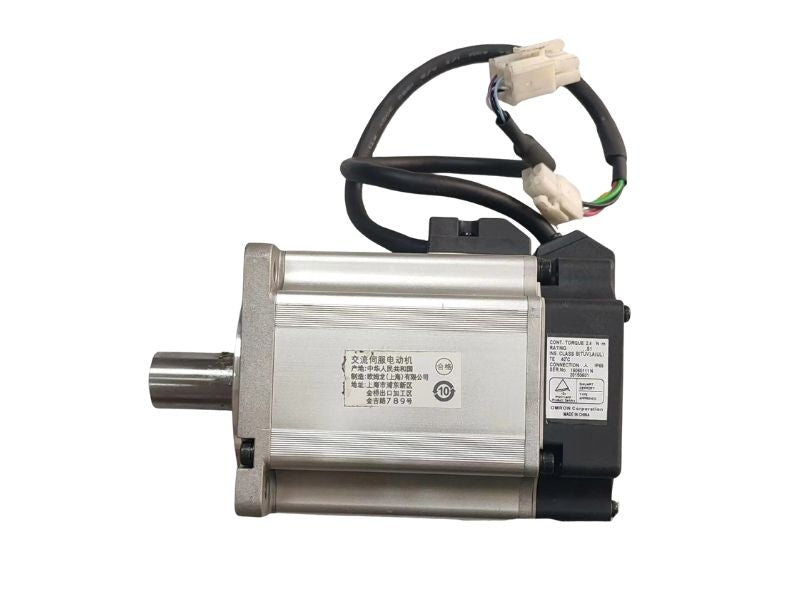

Omron R88M-K3K030T Servo Motor 3kW 3000RPM 230VAC Absolute Encoder G5 Series
- Regular price
- $3,877.00
- Sale price
- $3,877.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-K3K030T
Description
The Omron R88M-K3K030T is an AC servo motor designed for high-performance motion control in industrial automation systems. It provides 3 kW rated power with a speed of 3000 RPM and operates on a 230 VAC supply. This motor is used for applications requiring precise positioning, high torque, and stable operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Business & Industrial |
| Part Number | R88M-K3K030T |
| Subcategory | Servo Motors |
| Series | Accurax G5 (R88M-K) |
| Motor Type | AC Servo Motor |
| Rated Power | 3 kW |
| Rated Voltage | 230 VAC |
| Rated Speed | 3000 RPM |
| Rated Torque | 9.55 Nm |
| Peak Torque | 28.6 Nm |
| Encoder Type | Absolute |
| Shaft Diameter | 22 mm |
| Shaft Type | Straight (No Key) |
| Frame Size | 120 mm |
| Mounting Type | Flange Mount |
| Operating Temperature | 0°C to 40°C |
| Weight | 8.2 kg |
Information About R88M-K3K030T
The R88M-K3K030T is part of Omron’s Accurax G5 (R88M-K series) servo motor lineup, developed for advanced motion control and synchronization tasks. It features an absolute encoder for accurate position feedback and retention of position data after power loss. The motor is designed for use with compatible servo drives and supports integration into high-speed automation systems. Its square flange construction and straight shaft design enable reliable mechanical coupling in industrial machinery.
Key Features:
- 3 kW rated output: Suitable for demanding motion control applications.
- 3000 RPM rated speed: Enables high-speed and precise positioning performance.
- Absolute encoder: Provides accurate position feedback and retains data after power loss.
- High torque capability: Delivers 9.55 Nm rated torque and up to 28.6 Nm peak torque.
- 230 VAC operation: Compatible with industrial servo drive systems.
- Straight shaft design: Supports direct coupling to mechanical loads.
- Accurax G5 series compatibility: Designed for use with Omron servo drive systems.
- Industrial-grade construction: Suitable for continuous operation in automation environments.
The R88M-K3K030T delivers the reliability and precision required for servo-driven motion control in industrial automation systems.
Description
The Omron R88M-K3K030T is an AC servo motor designed for high-performance motion control in industrial automation systems. It provides 3 kW rated power with a speed of 3000 RPM and operates on a 230 VAC supply. This motor is used for applications requiring precise positioning, high torque, and stable operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Business & Industrial |
| Part Number | R88M-K3K030T |
| Subcategory | Servo Motors |
| Series | Accurax G5 (R88M-K) |
| Motor Type | AC Servo Motor |
| Rated Power | 3 kW |
| Rated Voltage | 230 VAC |
| Rated Speed | 3000 RPM |
| Rated Torque | 9.55 Nm |
| Peak Torque | 28.6 Nm |
| Encoder Type | Absolute |
| Shaft Diameter | 22 mm |
| Shaft Type | Straight (No Key) |
| Frame Size | 120 mm |
| Mounting Type | Flange Mount |
| Operating Temperature | 0°C to 40°C |
| Weight | 8.2 kg |
Information About R88M-K3K030T
The R88M-K3K030T is part of Omron’s Accurax G5 (R88M-K series) servo motor lineup, developed for advanced motion control and synchronization tasks. It features an absolute encoder for accurate position feedback and retention of position data after power loss. The motor is designed for use with compatible servo drives and supports integration into high-speed automation systems. Its square flange construction and straight shaft design enable reliable mechanical coupling in industrial machinery.
Key Features:
- 3 kW rated output: Suitable for demanding motion control applications.
- 3000 RPM rated speed: Enables high-speed and precise positioning performance.
- Absolute encoder: Provides accurate position feedback and retains data after power loss.
- High torque capability: Delivers 9.55 Nm rated torque and up to 28.6 Nm peak torque.
- 230 VAC operation: Compatible with industrial servo drive systems.
- Straight shaft design: Supports direct coupling to mechanical loads.
- Accurax G5 series compatibility: Designed for use with Omron servo drive systems.
- Industrial-grade construction: Suitable for continuous operation in automation environments.
The R88M-K3K030T delivers the reliability and precision required for servo-driven motion control in industrial automation systems.
