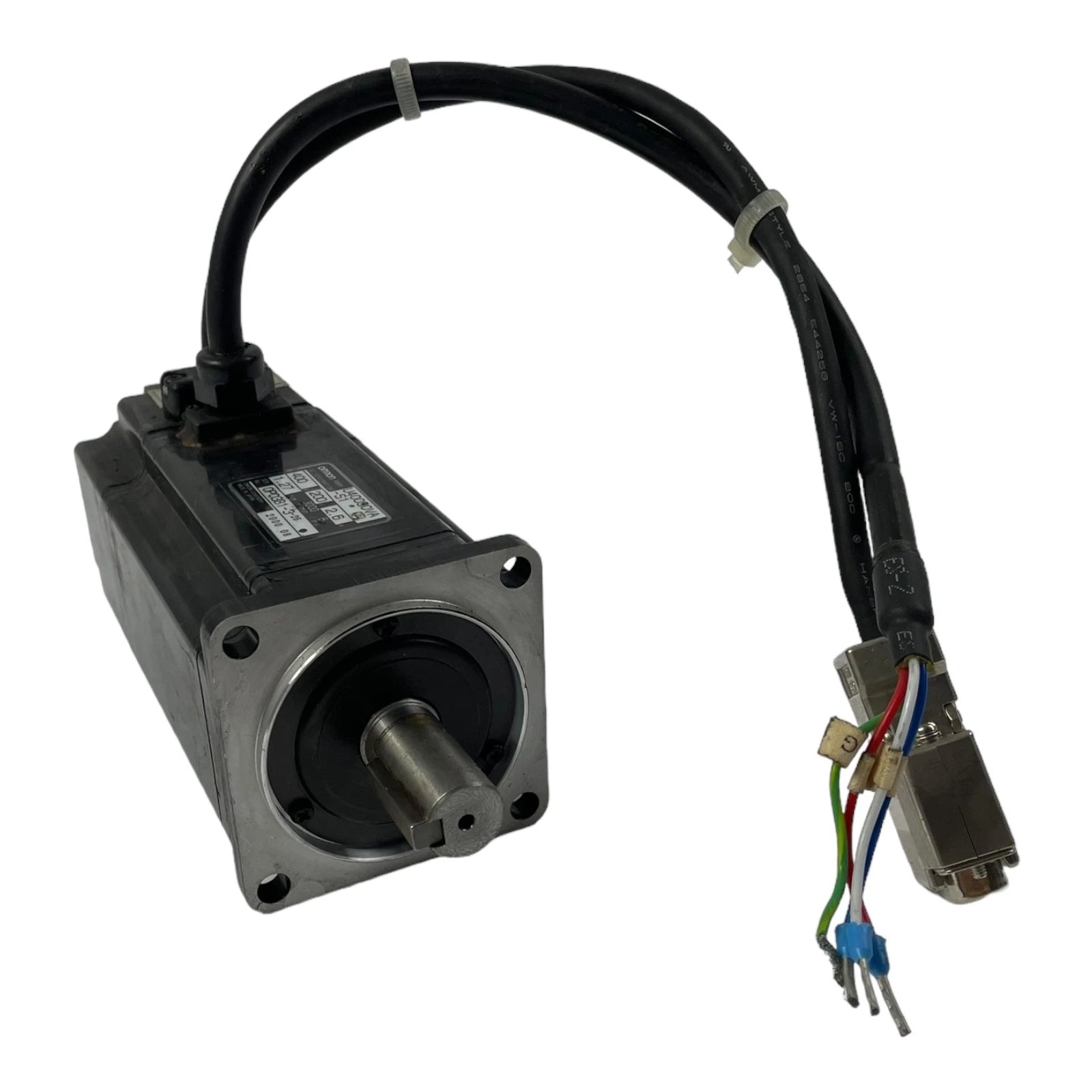

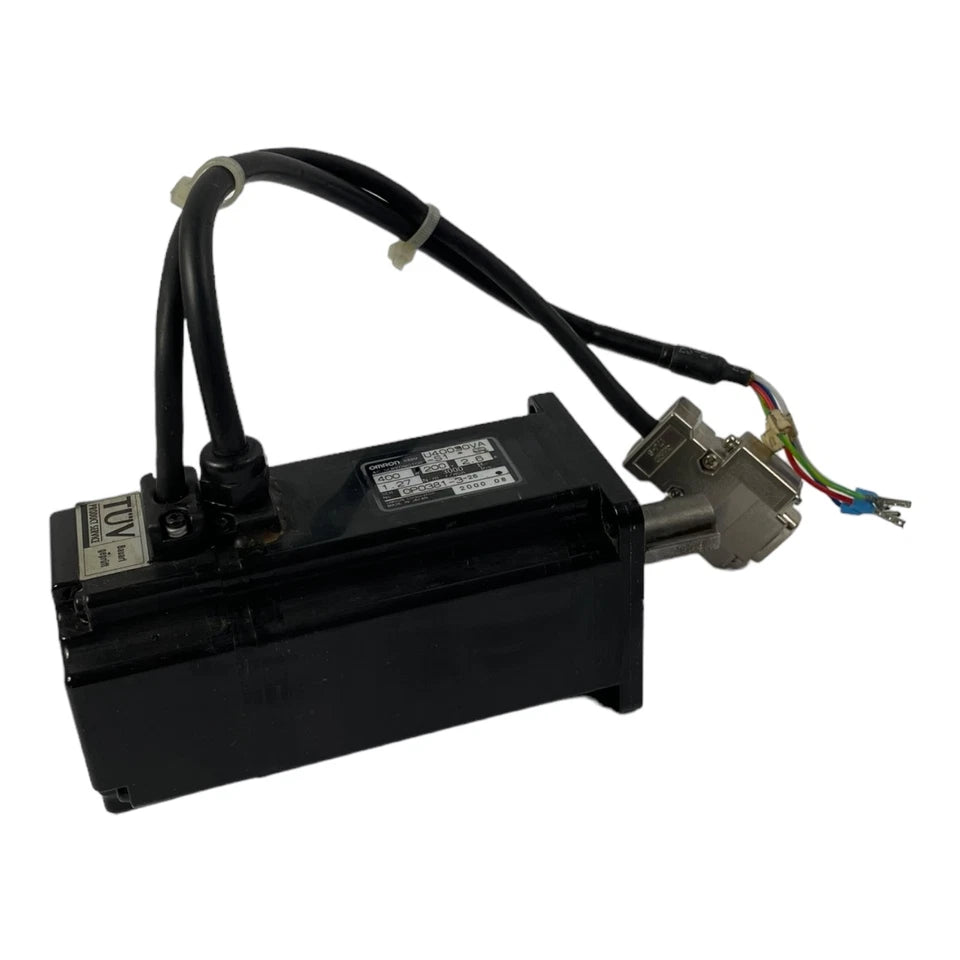

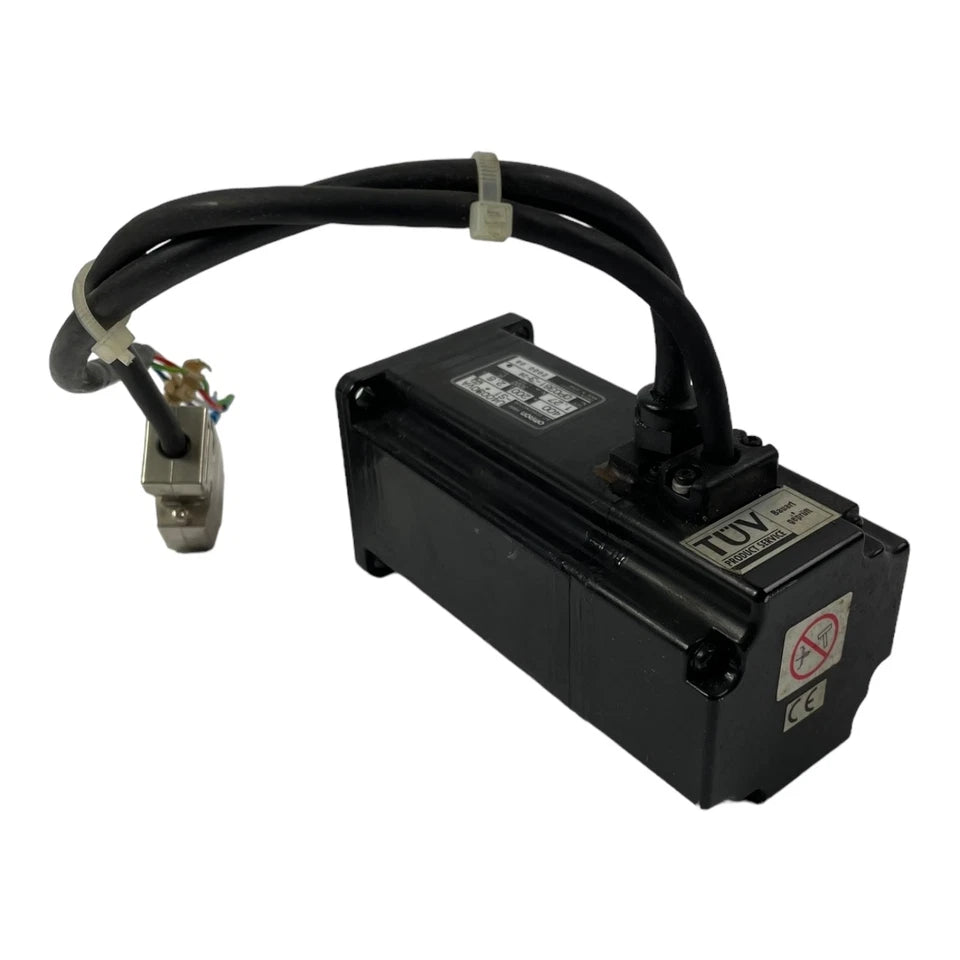

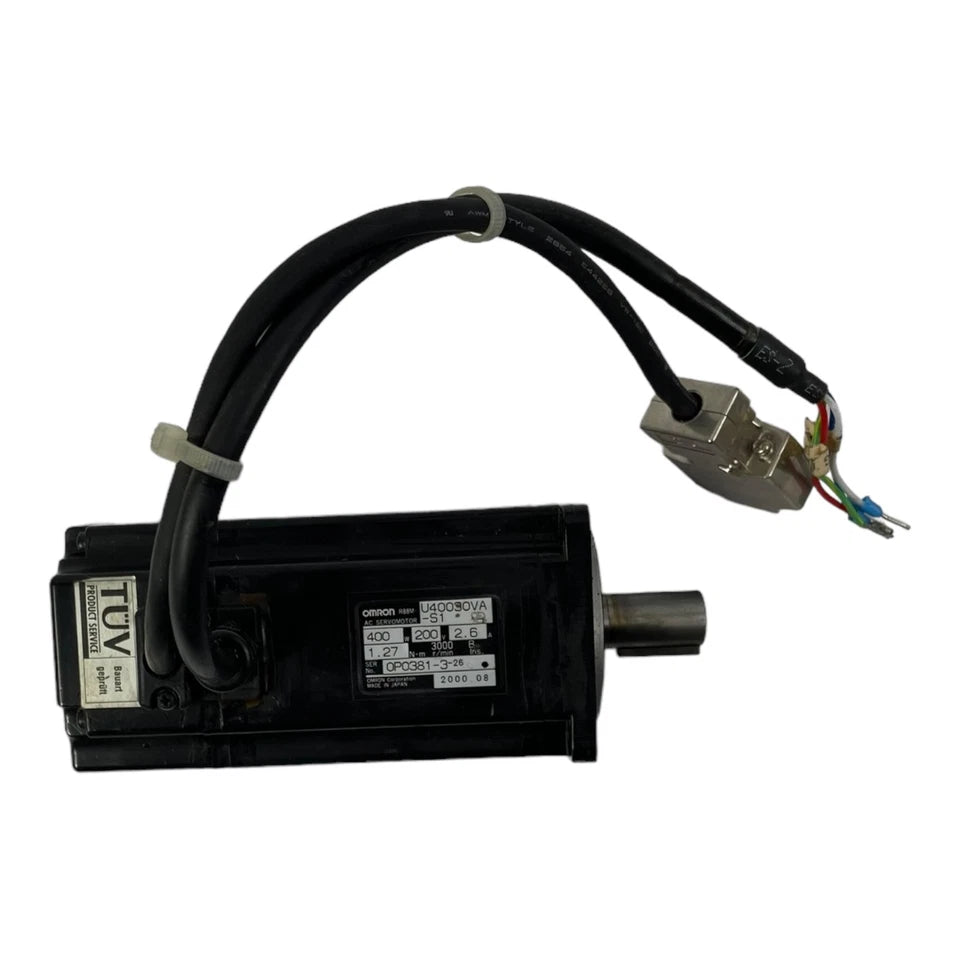

R88M-U40030VA-S1 | Omron 400W AC Servo Motor with Incremental Encoder, 3000 RPM
- Regular price
- $774.00
- Sale price
- $774.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-U40030VA-S1
Description
The Omron R88M-U40030VA-S1 servomotor is a 400 W AC servo motor designed for precise motion control in industrial automation systems. It delivers stable torque and accurate speed regulation at a rated speed of 3000 RPM for positioning and continuous motion tasks. This motor is well suited for integration with Omron servo drives in compact and mid-power applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | R88M-U40030VA-S1 |
| Subcategory | Servo Motors |
| Product Line | R88M |
| Motor Type | AC Servo Motor |
| Motor Capacity | 400 W |
| Rated Voltage | 200 VAC |
| Rated Speed | 3000 RPM |
| Rated Current | 2.6 A |
| Encoder Type | Incremental Encoder |
| Brake | Without Brake |
| Shaft Type | Straight Shaft |
| Shaft Key | With Key |
| Mounting Type | Flange Mount |
| Ambient Operating Temperature | 0°C to 40°C |
| Ambient Storage Temperature | -10°C to 75°C |
| Ambient Operating Humidity | 20% to 80% RH, non-condensing |
| Ambient Storage Humidity | 20% to 85% RH, non-condensing |
| Weight | 1.75 lbs (0.79 kg) |
Information About R88M-U40030VA-S1
The R88M-U40030VA-S1 is part of Omron’s R88M servo motor series, engineered to support high-accuracy motion control in factory automation environments. It features a compact flange-mounted design with a straight keyed shaft for reliable mechanical coupling to driven equipment. The motor is equipped with an incremental encoder, enabling precise feedback for speed and position control when paired with compatible Omron servo drives. Designed for standard industrial conditions, it operates efficiently within controlled temperature and humidity ranges without requiring an integrated brake or shaft seal.
Key Features:
- Rated Power Output: Provides 400 W of continuous motor capacity for mid-range servo applications.
- Incremental Encoder Feedback: Ensures accurate position and speed detection for closed-loop control systems.
- 3000 RPM Rated Speed: Supports fast and smooth motion in high-response automation tasks.
- 200 VAC Rated Voltage: Designed for standard industrial AC servo power systems.
- Flange Mount Construction: Allows secure and precise mounting to machinery frames and assemblies.
- Straight Shaft with Key: Enables dependable torque transmission and mechanical alignment.
- Brake-Free Design: Optimized for applications where external braking or holding mechanisms are not required.
The R88M-U40030VA-S1 delivers the reliability and precision required for industrial motion control, positioning systems, and automated machinery.
