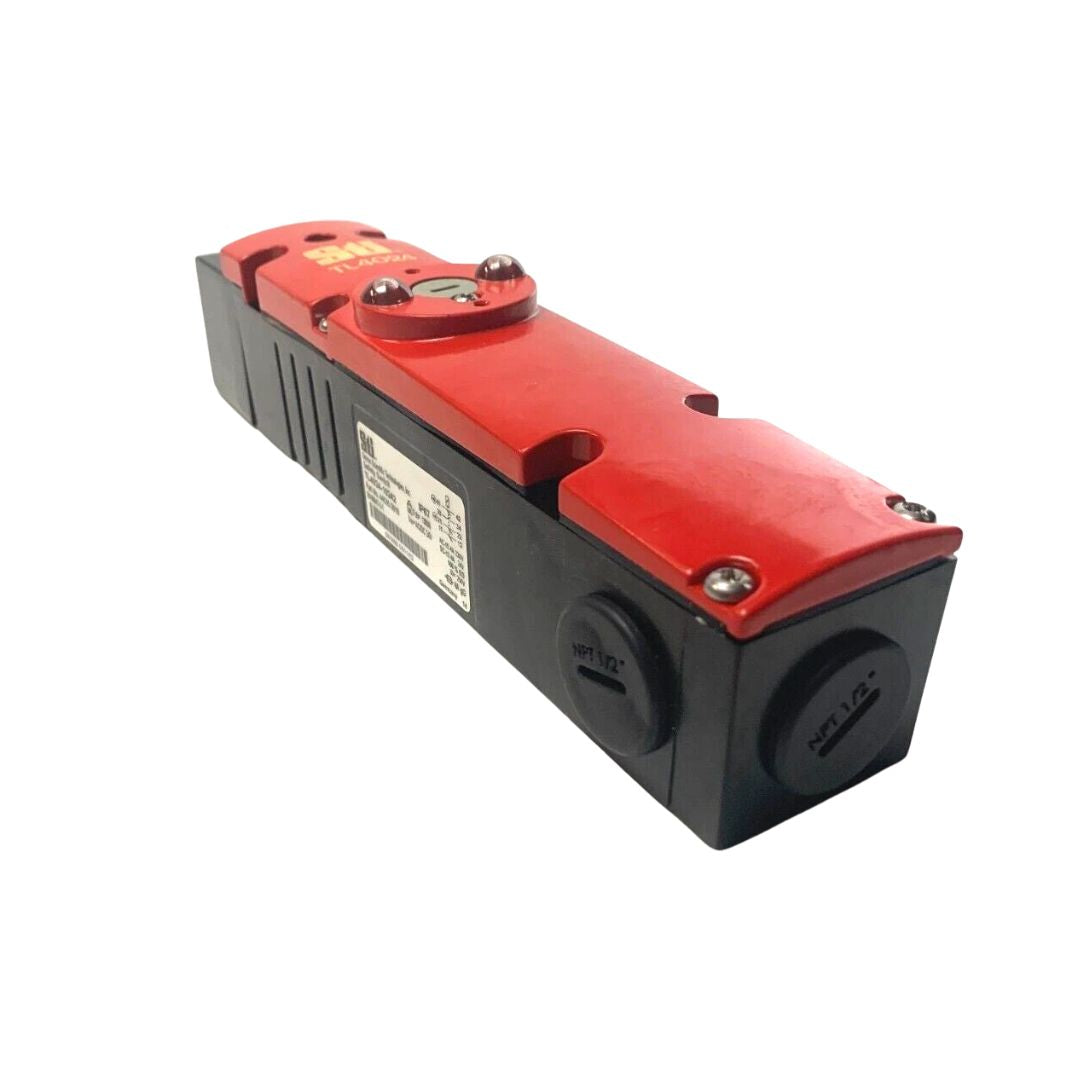

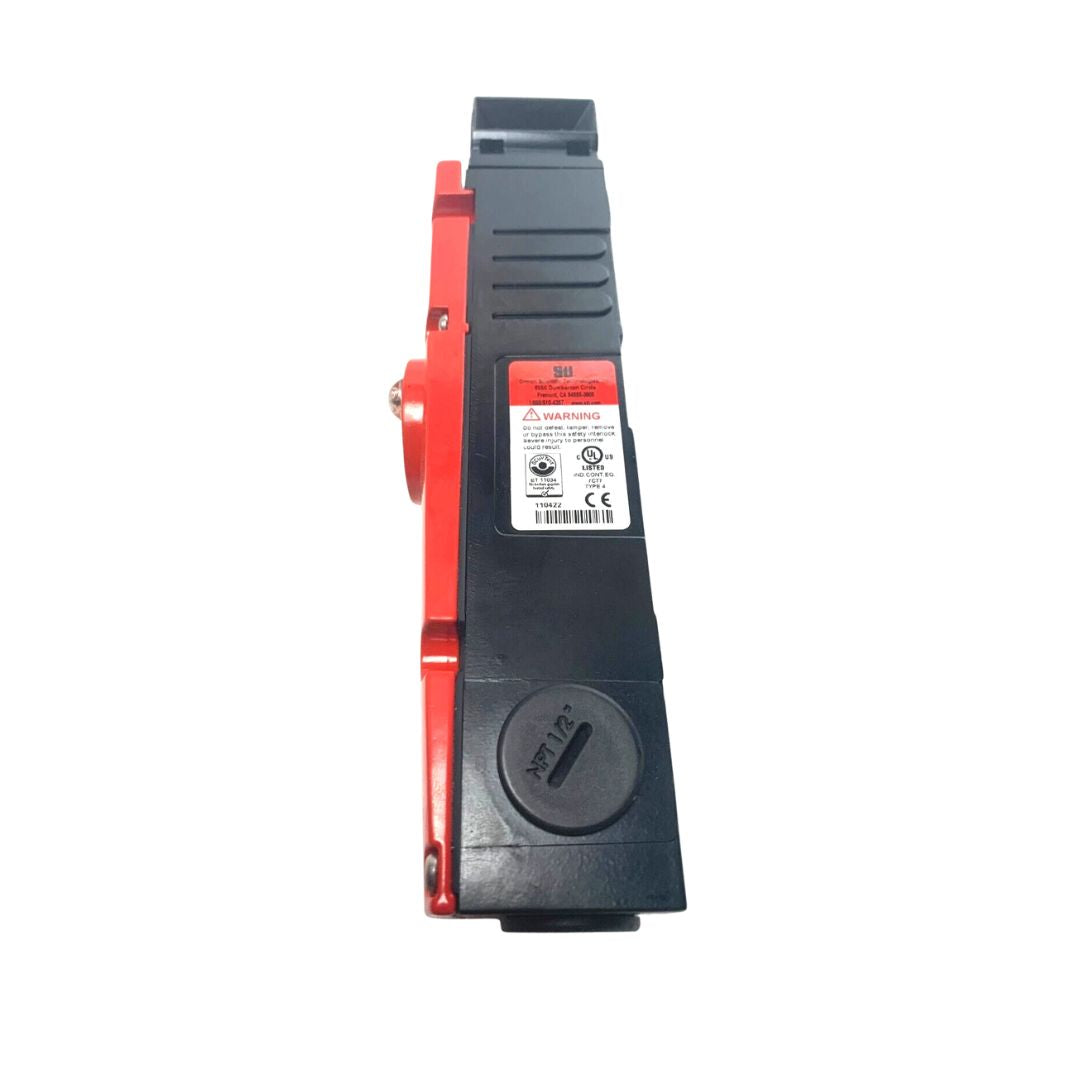

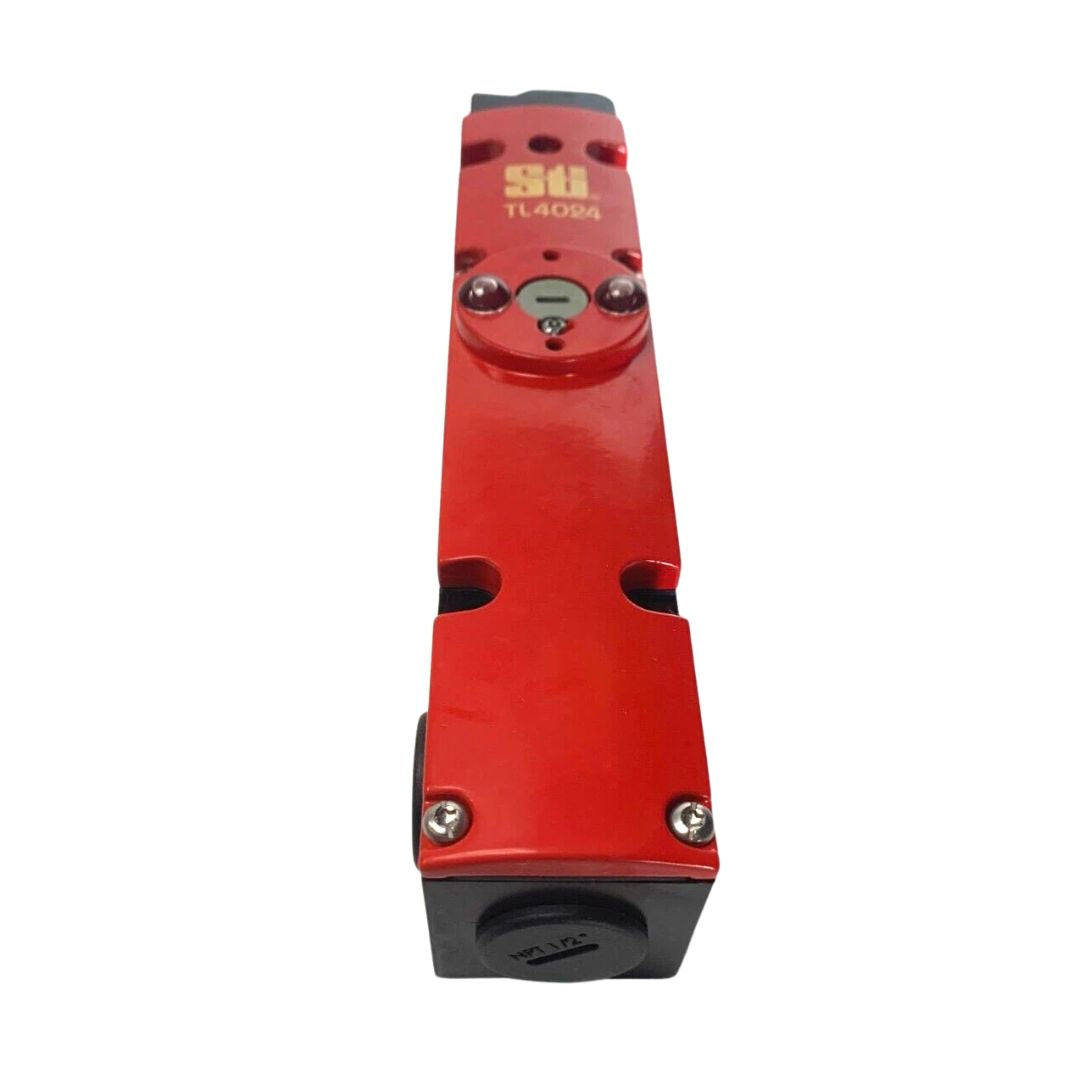

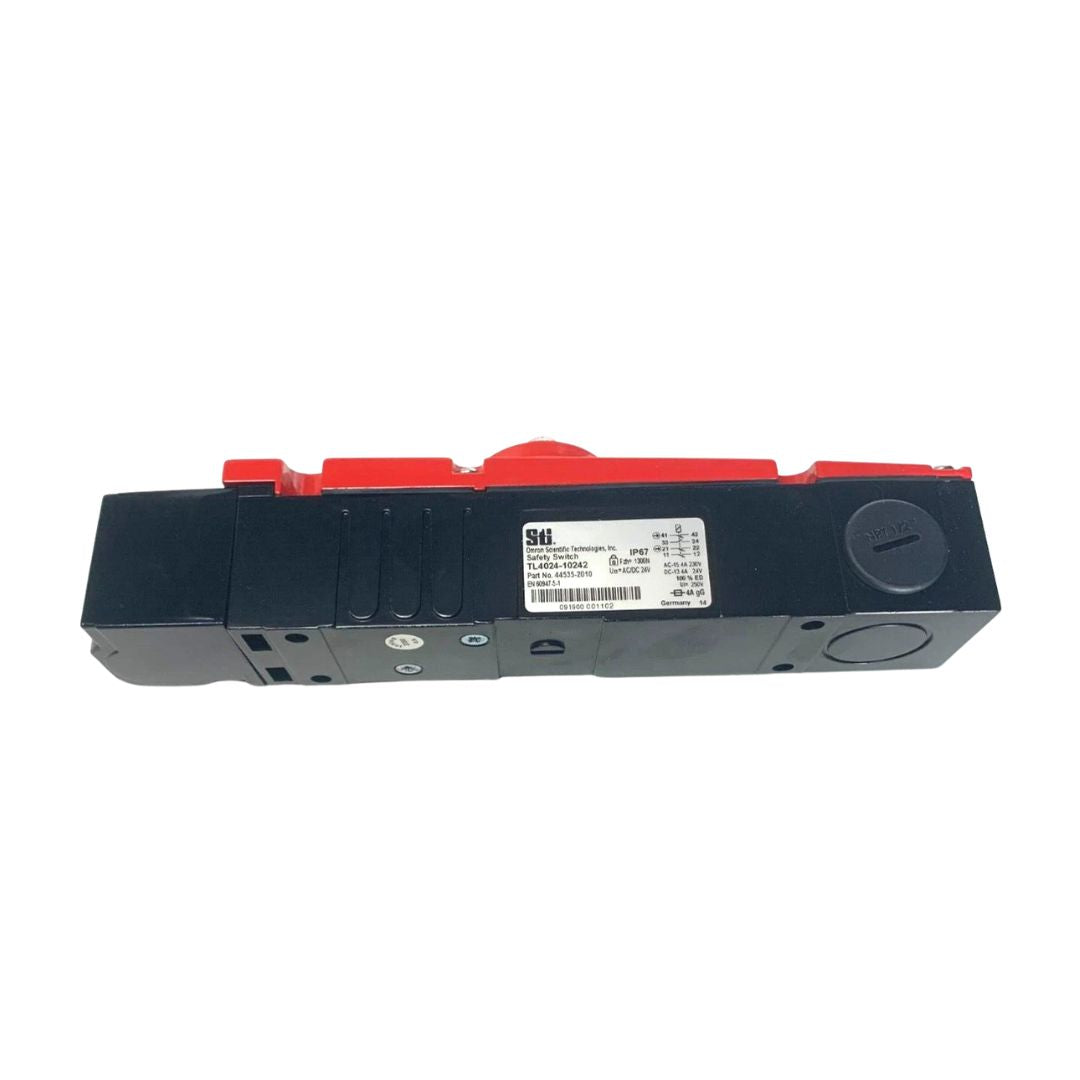

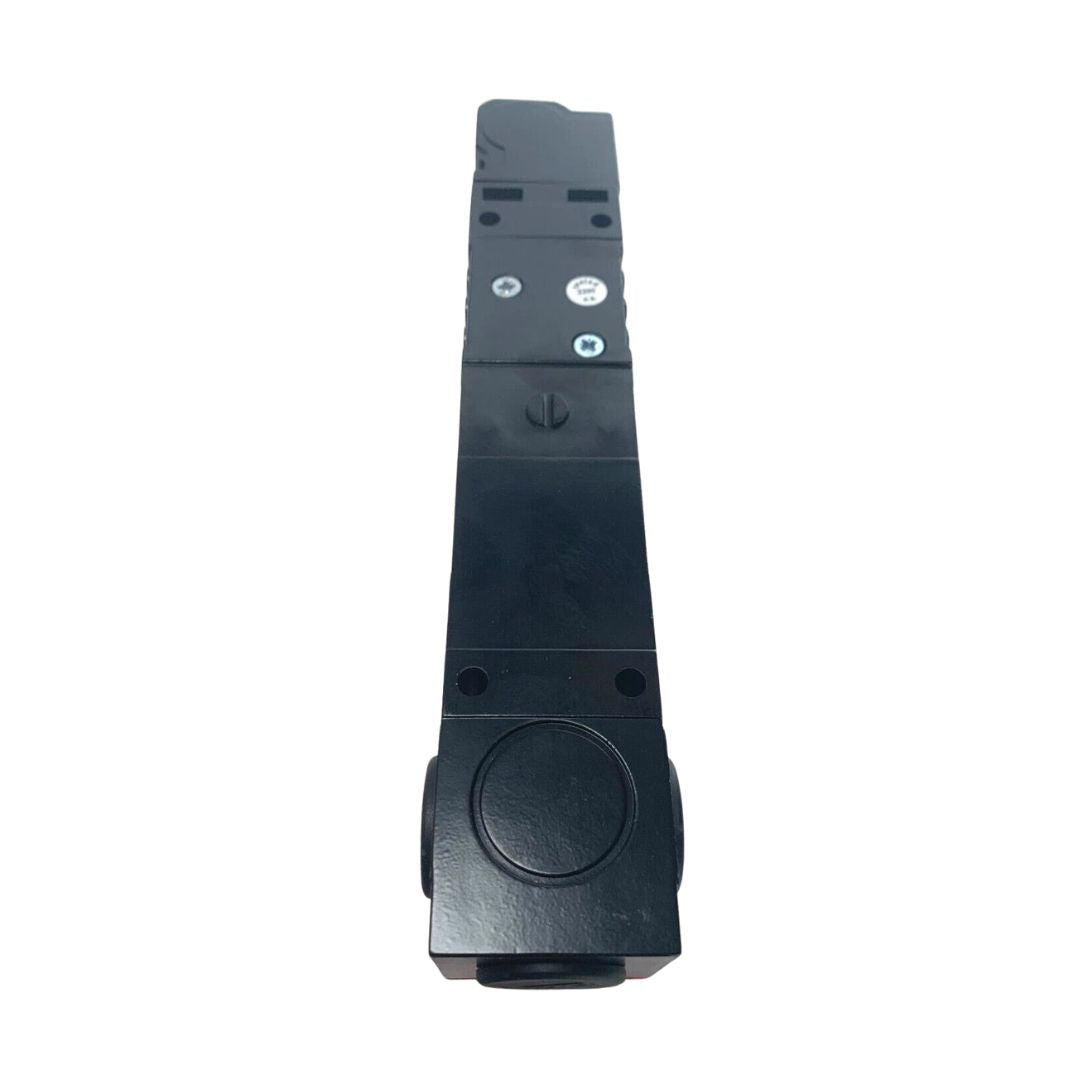

Omron TL4024-10242 Safety Interlock Switch 4PST 3NC 1NO IP67 Solenoid Release 24VDC
- Regular price
- $727.00
- Sale price
- $727.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TL4024-10242
Description
The Omron TL4024-10242 is a safety interlock switch with solenoid release designed for machine guarding and industrial safety applications. It features a 4PST contact configuration with 3 normally closed and 1 normally open contacts, supporting operation at up to 230 VAC and 24 VDC. This device provides secure locking and monitoring of safety doors and access points in automated systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Business & Industrial |
| Part Number | TL4024-10242 |
| Subcategory | Safety Interlock Switches |
| Series | TL4024 |
| Type | Safety Interlock Switch with Solenoid Release |
| Contact Configuration | 4PST (3NC / 1NO) |
| Rated Voltage | 230 VAC, 24 VDC |
| Supply Voltage | 24 VAC/DC |
| Current Rating | 4 A (AC/DC) |
| Holding Force | 153 kgf |
| Actuator Type | Panel Disconnect |
| Connection Type | Screw Terminal |
| Conduit Size | 1/2" NPT ×3 |
| Ingress Protection | IP67 |
| Operating Temperature | -20°C to 80°C |
| Standards | CE, cULus |
| Weight | 3 lbs |
Information About TL4024-10242
The TL4024-10242 is part of Omron’s TL4024 series of safety interlock switches developed for safeguarding machinery and personnel. It incorporates a solenoid locking mechanism to ensure that access points remain secured during operation until safe conditions are met. The unit supports panel disconnect actuator types and includes screw terminal connections for reliable wiring. With an IP67 protection rating and robust construction, it is suitable for use in harsh industrial environments including manufacturing lines and automated equipment.
Key Features:
-
Solenoid release mechanism: Provides controlled locking and unlocking of safety doors.
-
4PST contact configuration: Includes 3 NC and 1 NO contacts for safety circuit integration.
-
High holding force: Delivers up to 153 kgf holding force for secure door locking.
-
Wide voltage compatibility: Supports 230 VAC and 24 VDC operation.
-
Durable IP67 protection: Ensures resistance to dust and water in industrial environments.
-
Screw terminal connections: Enables secure and stable wiring installation.
-
Panel disconnect actuator: Designed for use with machine guard doors and access panels.
-
Wide operating temperature range: Functions reliably from -20°C to 80°C.
The TL4024-10242 delivers the reliability and precision required for machine safety interlocking and access control in industrial automation systems.
