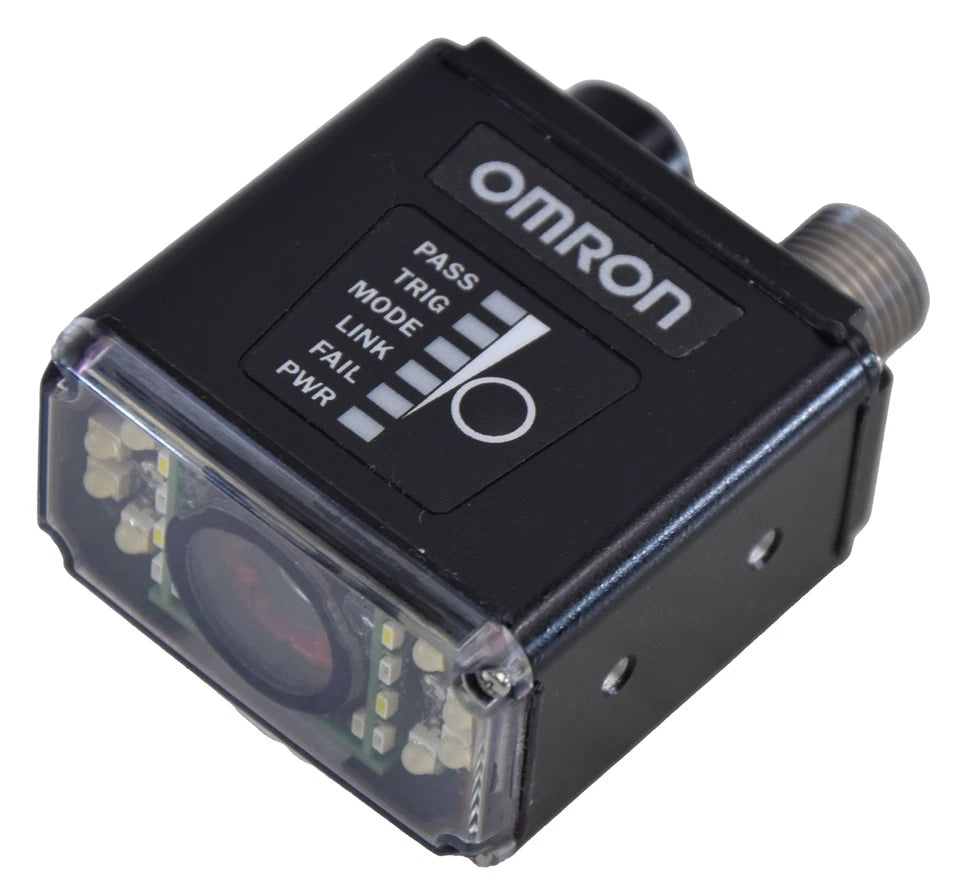

V430-F000M12M-SRX | Omron MicroHAWK V430-F Ultra Compact Barcode Reader
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V430-F000M12M-SRX
Description
The Omron V430-F000M12M-SRX is an ultra-compact barcode reader engineered for high-density code reading in space-constrained industrial environments. It features autofocus capability, advanced image processing, and multiple communication interfaces to support reliable data capture across varying read distances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation |
| Category | Barcode Reading & Vision |
| Part Number | V430-F000M12M-SRX |
| Subcategory | Fixed Mount Barcode Readers |
| Product Series | MicroHAWK V430-F Series |
| Reader Type | Ultra-Compact Barcode Reader |
| Sensor Type | Monochrome |
| Resolution | 1.2 MP |
| Sensing Mode | Ultra-High Density |
| Focus Type | Autofocus |
| Measurement Range | Variable (Autofocus) |
| Supply Voltage | 5–30 VDC |
| Current Consumption | 0.18 A @ 24 VDC |
| Communication Interfaces | Ethernet TCP/IP, PROFINET, RS-232, USB |
| Field of View | Wide, Medium, Narrow |
| Mounting Type | Chassis Mount |
| Ingress Protection | IP65 / IP67 |
| Operating Temperature | 0 to 45 °C |
| Dimensions | 44.5 × 44.5 × 25.4 mm |
| Weight | Approx. 68 g |
Information About V430-F000M12M-SRX
The V430-F000M12M-SRX is part of Omron’s MicroHAWK V430-F family, developed to deliver advanced barcode reading performance in compact industrial automation systems. It combines autofocus optics with high-speed image processing to decode high-density and challenging codes without manual lens adjustment. The reader supports multiple industrial communication protocols, enabling straightforward integration into PLC and factory networks. Its rugged housing and small footprint make it suitable for applications where space, reliability, and flexibility are critical.
Key Features
- Autofocus Optical System: Automatically adjusts focus to reliably read barcodes at varying distances without mechanical intervention or manual setup.
- Ultra-High Density Code Reading: Optimized sensing mode enables accurate decoding of small, high-density, and low-contrast barcodes commonly used in electronics and precision manufacturing.
- Compact MicroHAWK Design: One of the smallest readers in its class, allowing installation in tight spaces and on compact production equipment.
- Multiple Industrial Interfaces: Supports Ethernet TCP/IP, PROFINET, RS-232, and USB for flexible connectivity with PLCs, PCs, and control systems.
- High-Resolution Imaging: Monochrome sensor delivers detailed image capture to improve decode reliability in demanding inspection conditions.
- Rugged Environmental Protection: Rated IP65/IP67 to resist dust, water spray, and washdown environments.
- Flexible Mounting Options: Chassis-mount design supports diverse installation orientations and machine integration requirements.
The V430-F000M12M-SRX delivers the reliability and precision required for high-density barcode reading in compact industrial automation applications.
