OMX-CI-RS232 | Lutron RS232 Control Interface for GRAFIK and Softswitch Integration
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: OMX-CI-RS232
Description

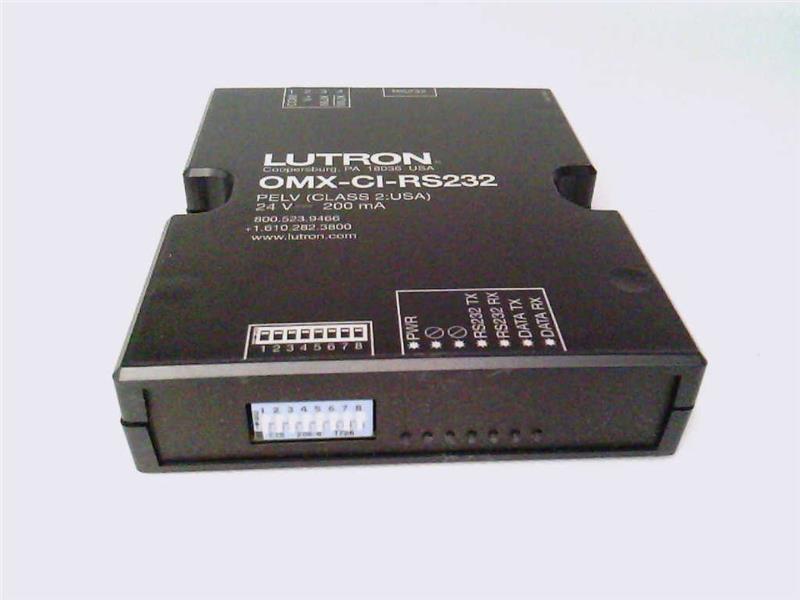

The Lutron OMX-CI-RS232 is a serial control interface that enables integration between Lutron GRAFIK and Softswitch lighting systems and third-party devices via RS232 communication. It allows bidirectional monitoring and control, including scene recall, zone adjustment, button simulation, and panic mode activation. Ideal for use with touchscreen interfaces or automation processors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | OMX-CI-RS232 |
| Subcategory | Integration Interfaces |
| System Compatibility | GRAFIK 5000™, GRAFIK 6000®, GRAFIK 7000™, Softswitch128®, LCP128® |
| Communication | RS232 serial |
| Power Requirements | 12 V DC @ 125 mA / 24 V DC @ 65 mA (Class 2) |
| Mounting Options | Wall, rack (LUT-19AV-1U), or enclosure (LUT-5x10-ENC) |
| Monitoring Functions | Scene status, button press detection |
| Control Functions | Scene selection, zone raise/lower, lockouts, panic mode |
| Maximum Distance to RS232 Source | 50 ft (15 m) |
| Wiring Type | IEC PELV/NEC® Class 2, up to two 18 AWG wires per terminal |
| LED Indicators | Power (LED 1), Data RX (LED 7) |
| Environment | Indoor, 32–104°F (0–40°C), <90% RH non-condensing |
| Dimensions | Not explicitly specified |
| Weight | 0.98 lb |
| Certifications | UL, CE, RoHS (model dependent) |
| Software Required | None (uses OMX RS232 command set) |
Information About OMX-CI-RS232
The OMX-CI-RS232 is part of Lutron’s integration accessories designed to interface legacy systems like GRAFIK 5000™, 6000®, 7000™, Softswitch128®, and LCP128® with third-party control platforms. It supports serial RS232 communication to issue control commands and monitor system status, including scene selection and zone levels. The interface connects via IEC PELV/NEC® Class 2 wiring and is powered at 12–24 V DC. Designed for wall or rack mounting, it supports integration with AV systems, automation touchscreens, and control processors for commercial environments.
Key Features:
- RS232 Communication: Enables connection with touchscreens, processors, and third-party systems.
- System Monitoring: Supports scene status queries and button press detection.
- Scene & Zone Control: Select, sequence, raise/lower zones, lockout controls, or activate panic mode.
- Multiple Mounting Options: Wall-mounted, rack-mounted (LUT-19AV-1U), or enclosure-mounted.
- Power Options: Operates on 12 V (125 mA) or 24 V (65 mA) Class 2 power.
- Multiple Units Supported: Up to several interfaces per Lutron processor panel.
- Secure Wiring: IEC/NEC Class 2 compliant wiring for safe commercial installation.
- Environmental Protection: Supports temperatures from 32°F to 104°F and humidity up to 90% non-condensing.
The OMX-CI-RS232 provides reliable serial integration between Lutron lighting systems and RS232-based automation platforms.
