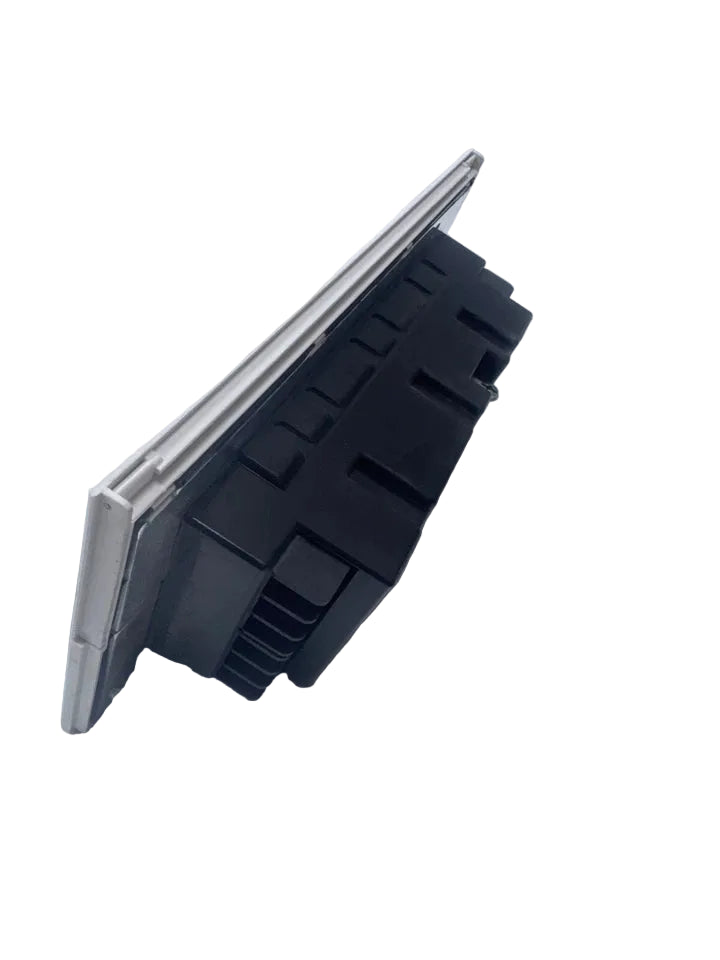

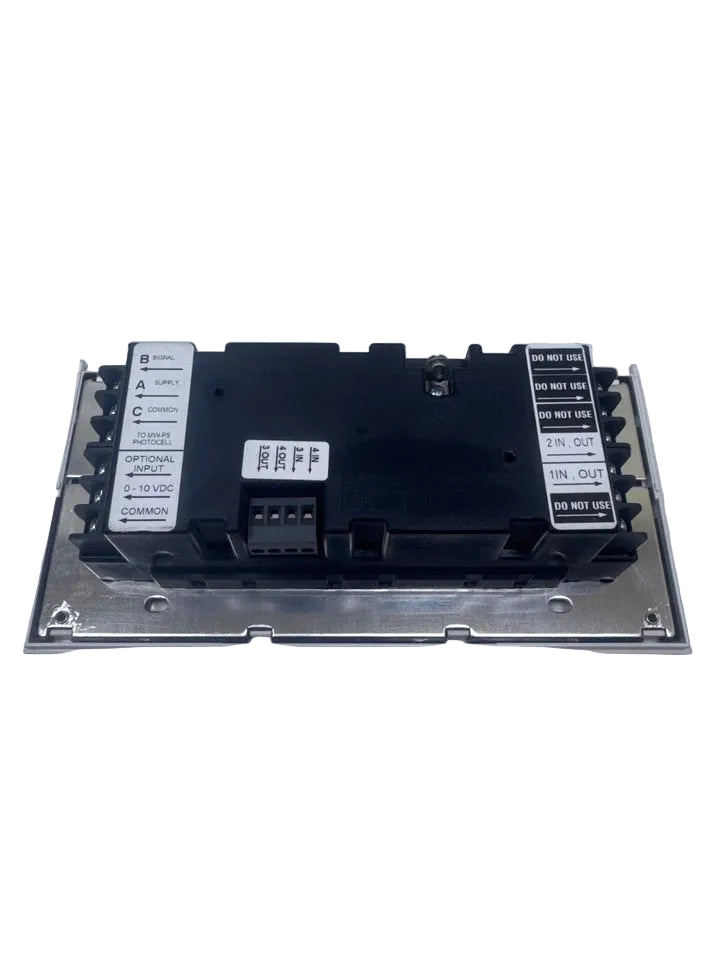

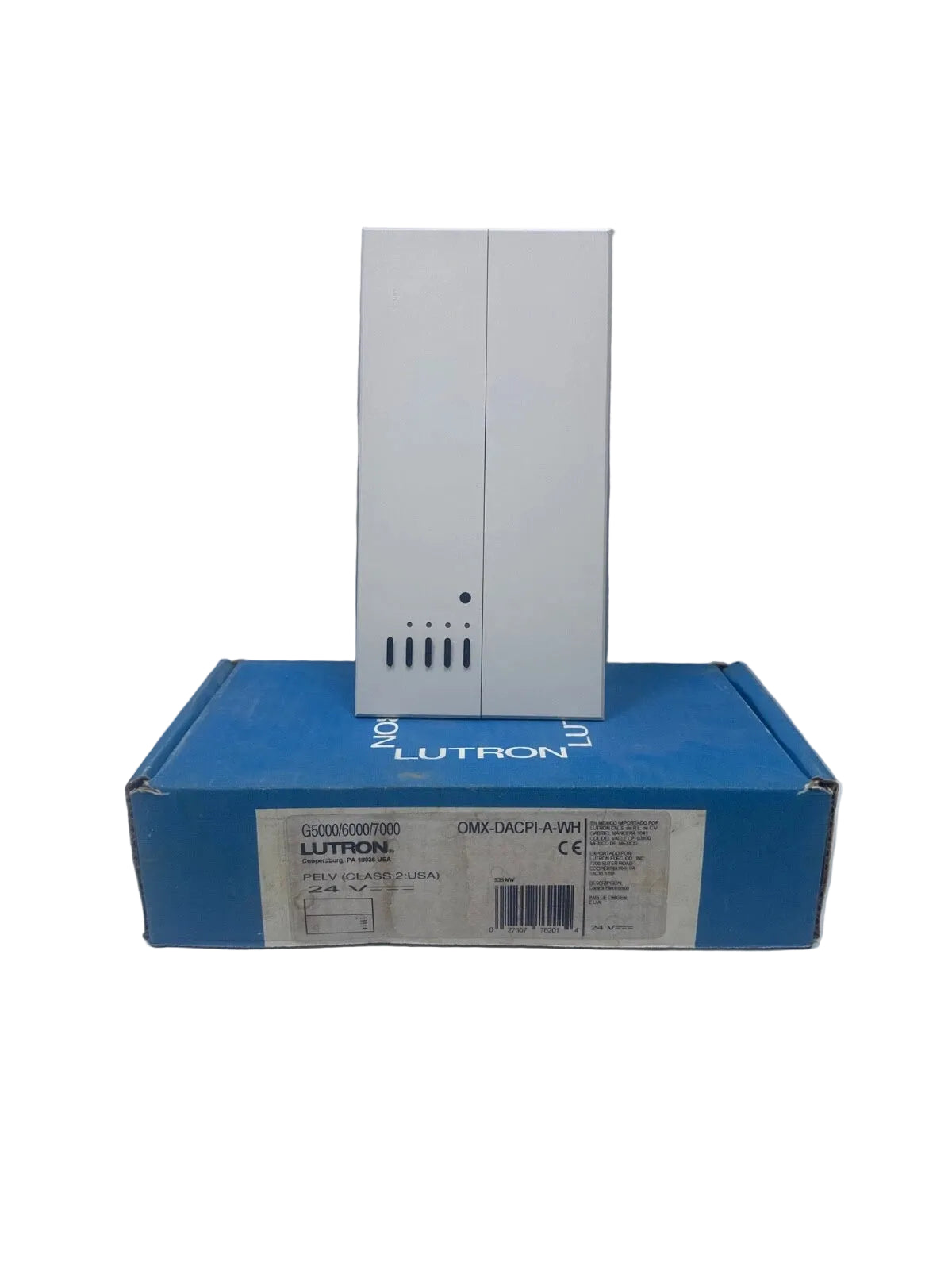

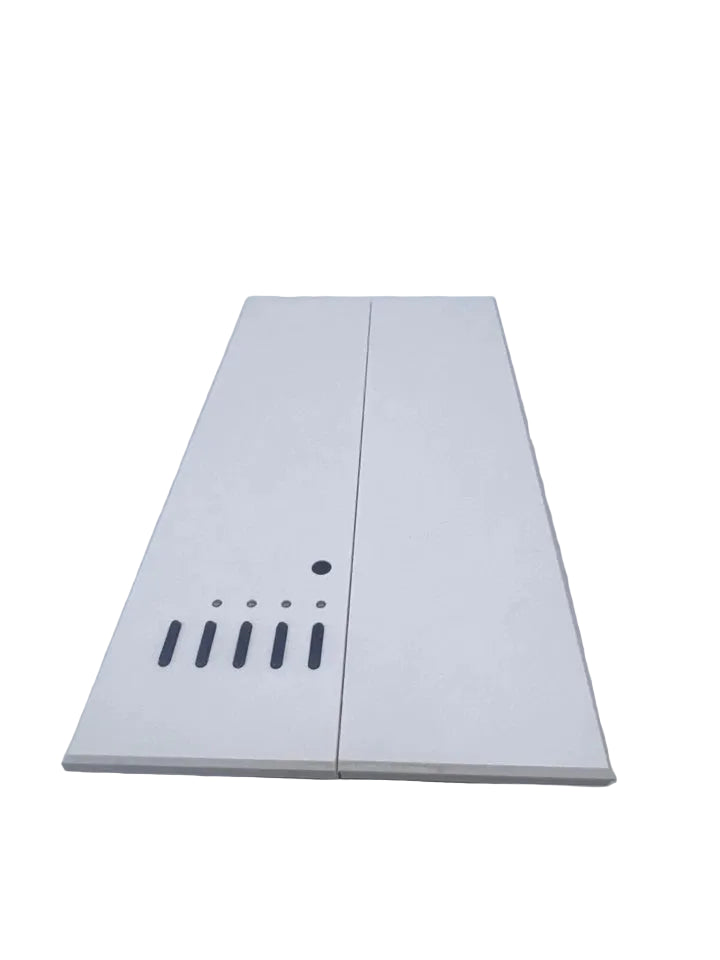

OMX-DACPI-A-WH | Lutron 24V Daylight Compensation Photocell Interface
- Regular price
- $1,329.00
- Sale price
- $1,329.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OMX-DACPI-A-WH
Description
The Lutron OMX-DACPI-A-WH is a Class 2 automatic daylight compensation controller designed for use with GRAFIK 3000 and GRAFIK 4000 series lighting control systems. It operates on 24 V and interfaces with a photosensor to adjust lighting levels based on available natural daylight. The unit enables automated scene selection to maintain consistent illumination while reducing energy consumption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting |
| Part Number | OMX-DACPI-A-WH |
| Subcategory | Lighting Controller |
| Type | Automatic Daylight Control Interface |
| Input Voltage | 24 V |
| Wiring Classification | Class 2 |
| Control Method | Photocell-based daylight compensation |
| Compatible Photosensors | MW-PS-WH or 0–10 V photosensors |
| System Compatibility | GRAFIK 3000 & GRAFIK 4000 Series |
| Operational Modes | Automatic, Enforce Mode |
| Timer Function | Two-minute range qualification delay |
| Status | Discontinued by Manufacturer |
| Weight | 1.10 lbs |
Information About OMX-DACPI-A-WH
The OMX-DACPI-A-WH is a daylighting control interface developed by Lutron for integration with centralized lighting control platforms. It connects to a compatible photosensor and monitors ambient light levels to automatically adjust artificial lighting output. Designed for 24 V Class 2 wiring systems, the device supports threshold-based scene selection to maintain target illumination levels throughout the day. The controller includes configurable operational features such as enforce mode and delay timers to stabilize lighting responses to changing daylight conditions.
Key Features:
-
Automatic Daylight Compensation: Adjusts lighting levels based on real-time ambient daylight conditions.
-
24 V Class 2 Operation: Designed for low-voltage Class 2 wiring installations.
-
Photocell Interface: Compatible with Lutron MW-PS-WH and other 0–10 V photosensors.
-
Scene-Based Control: Automatically selects preset scenes as daylight thresholds are crossed.
-
Enforce Mode: Allows automatic daylight control to override manual user adjustments.
-
Passing Cloud Filtering: Two-minute range qualification timer prevents rapid scene changes due to temporary daylight fluctuations.
-
System Compatibility: Designed for integration with GRAFIK 3000 and GRAFIK 4000 series systems.
-
Energy Optimization: Reduces artificial lighting output in spaces with significant daylight exposure.
The OMX-DACPI-A-WH delivers the reliability and precision required for automated daylight-responsive lighting control applications.
