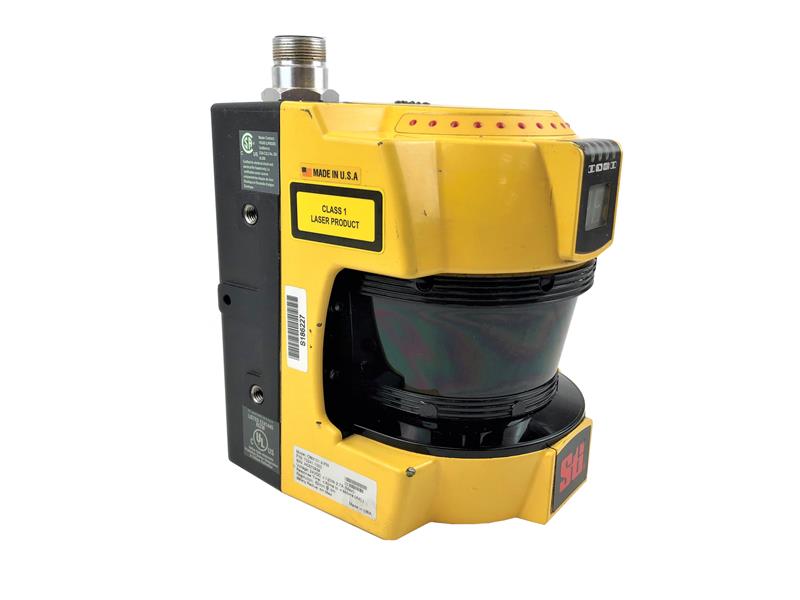

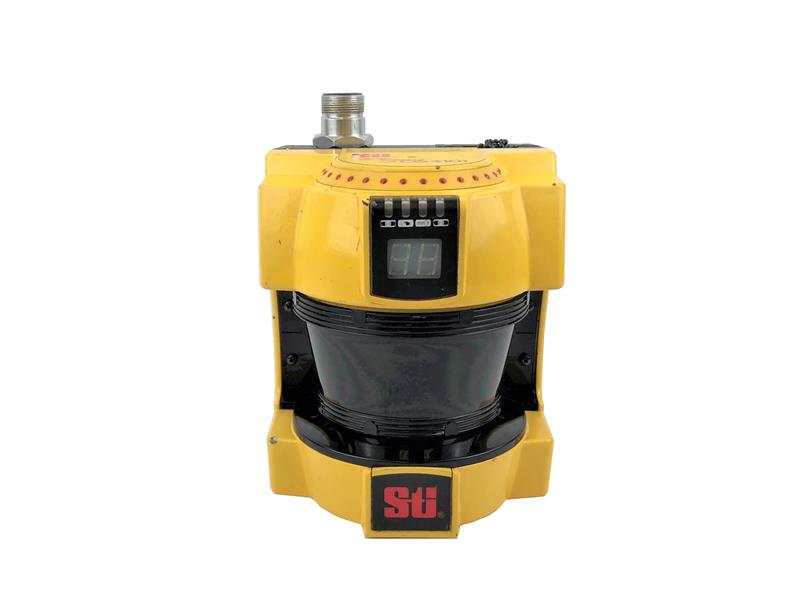

OS3101-2-PN | Omron OptoShield Safety Laser Scanner 4 m Protective 15 m Warning 24 VDC
- Regular price
- $3,745.00
- Sale price
- $3,745.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: OS3101-2-PN
Description
The Omron OS3101-2-PN OptoShield Safety Laser Scanner is an advanced area monitoring and personnel protection device designed for use in industrial automation and robotic systems. Operating on 24 VDC at 20 W, it provides a 4-meter protective radius and a 15-meter warning zone, ensuring safe operation of moving machinery and access-restricted areas. Featuring an RS-232 communication port and PNP auxiliary outputs, this model enables reliable integration into safety control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Products |
| Part Number | OS3101-2-PN |
| Subcategory | Safety Laser Scanners |
| Series | OptoShield Series |
| Type | Safety Laser Scanner |
| Detection Method | Time-of-Flight Laser Scanning |
| Protective Field Range | 4 m |
| Warning Field Range | 15 m |
| Output Type | PNP Auxiliary Outputs |
| Communication Interface | RS-232 |
| Supply Voltage | 24 VDC |
| Power Consumption | 20 W |
| Configuration | Software via RS-232 Connection |
| Response Time | Typically <60 ms |
| Scanning Angle | 190° (typical for series) |
| Angular Resolution | 0.36° (model dependent) |
| Mounting Type | Fixed / Bracket Mount |
| Enclosure Material | Industrial-Grade Plastic / Metal Housing |
| Protection Rating | IP65 (typical for OptoShield Series) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| LED Indicators | Status, Warning, and Error Indicators |
| Safety Category | Type 3 (IEC 61496-1, -3) |
| Standards Compliance | EN 954-1, IEC 61496, EN 61508, ISO 13849-1 |
| Application | Perimeter Guarding, AGV Safety, Robotic Cell Monitoring |
| Country of Origin | Japan |
| Weight | Approx. 3.3 lbs (1.5 kg) |
Information About OS3101-2-PN
The OS3101-2-PN is part of the Omron OptoShield Series, a safety laser scanner line designed to detect objects and personnel within defined safety and warning zones using time-of-flight laser measurement. The scanner continuously monitors a 2D area with adjustable fields and configurable response zones for flexible application setup. It operates with a 4-meter safety field and 15-meter warning field, making it ideal for stationary or mobile machinery such as AGVs, robotic cells, and press machines. The device features PNP auxiliary outputs for system signaling, an RS-232 interface for configuration and diagnostics, and a rugged housing suited for industrial environments. Although now discontinued, the OS3101-2-PN remains a proven and trusted safety component for legacy applications requiring laser-based presence detection and access protection.
Key Features:
- Wide Detection Range: 4 m protective zone and 15 m warning zone for personnel and object detection.
- Laser-Based Scanning: Time-of-flight technology for accurate area and intrusion monitoring.
- Configurable Zones: Adjustable safety and warning fields to suit application requirements.
- RS-232 Interface: Enables configuration, diagnostics, and data communication.
- PNP Auxiliary Output: Provides safety and status signaling for control systems.
- 24 VDC Operation: Efficient power input suitable for industrial control panels.
- Compact and Robust Design: Engineered for integration on machinery, conveyors, and AGVs.
- Discontinued Model: Supported for maintenance and retrofit of existing OptoShield systems.
The OS3101-2-PN delivers the reliability and precision required for safety perimeter monitoring, access protection, and collision prevention in industrial automation.
