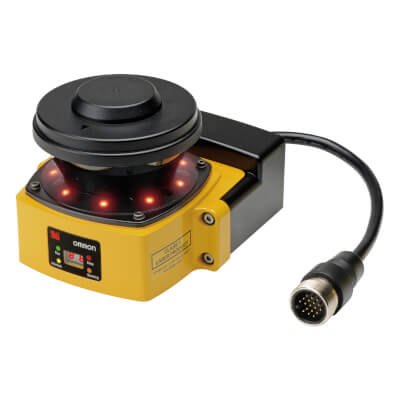

OS32C-BP-4M | Omron | Safety Sensors
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: OS32C-BP-4M
Description
The OS32C-BP-4M by OMRON is a safety laser scanner designed to ensure safe operation in industrial environments. With a safety radius of 4 meters and a warning zone extending up to 15 meters, it provides comprehensive coverage for hazard detection. The device is rated for PLd (Performance Level d) and Cat 3 (Category 3) safety standards, ensuring reliable safety performance. It operates at a voltage of 24 VDC and features a back location cable exit for convenient installation and cable management.
Technical Specifications
|
Part # |
OS32C-BP-4M |
|
Manufacturer |
OMRON |
|
Category |
Safety Systems |
|
Subcategory |
Safety Laser Scanner |
|
Type of safety according to IEC 61496-1 |
3 |
|
Maximum safety range |
4 m |
|
Maximum warning range |
15 m |
|
Cable entry direction |
Back |
|
Type of switching output of the OSSD |
PNP |
|
Connection method |
Pigtail connector |
|
Key features |
Configurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoring |
|
Type of protection |
Hand protection |
|
Detection capability |
70 mm |
|
Scan angle |
270 ° |
|
Scanning interval |
0.4 Hz |
|
Response time |
80 ms |
|
Number of safety fields |
140 |
|
Wavelength of the sensor |
905 nm |
|
Number of protected semiconductor outputs |
2 |
|
Number of semiconductor outputs with signalling function |
2 |
|
Laser protection class |
Class 1 |
|
Supply voltage DC |
16.8-30 V |
|
Voltage type |
DC |
|
Max. output current at protected output |
250 mA |
|
Degree of protection (IP) |
IP65 |
|
Ambient temperature |
-10-50 °C |
|
Overall length |
143 mm |
|
Height of sensor |
105 mm |
|
Width of sensor |
105 mm |
Information About OS32C-BP-4M
The OMRON OS32C-BP-4M is a safety laser scanner designed to provide advanced safety features in industrial environments. With a safety radius of 4 meters and a warning zone extending up to 15 meters, it ensures comprehensive coverage for personnel and equipment safety. The device operates on a 24 VDC power supply and is engineered with a back location cable exit for convenient installation and cable management.
Compliant with safety standards PLd (Performance Level d) and Category 3, the OS32C-BP-4M guarantees reliable safety performance in accordance with industry regulations and requirements. Its design integrates advanced safety features to mitigate risks and ensure safe operation in industrial settings.
The laser scanner is equipped with a PNP (Positive-Negative-Positive) type of switching output of the OSSD (Output Signal Switching Device), enabling seamless integration with safety control systems and devices. The pigtail connector offers a secure and stable connection method for enhanced reliability in operation.
Key features of the OMRON OS32C-BP-4M include configurable object resolution, which allows users to adjust the detection sensitivity based on specific application requirements. Additionally, it supports manual or automatic start modes, providing flexibility in operational control. The scanner also features reference boundary monitoring to ensure accurate detection and response to potential safety hazards.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
