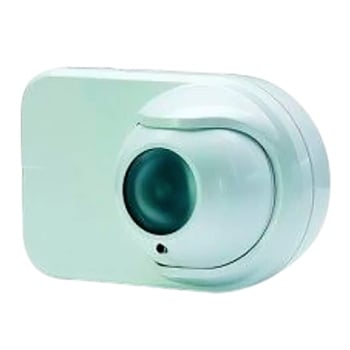

OSE-HP-01 | Vesda High-Power OSID Emitter for Open-Area Smoke Imaging Detection
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: OSE-HP-01
Description
The Vesda OSE-HP-01 is a high-power emitter designed for use with OSID (Open-area Smoke Imaging Detection) systems by Honeywell International. Operating on advanced dual-wavelength optical imaging technology, it provides precise early warning smoke detection in open areas while minimizing false alarms and alignment issues. The OSE-HP-01 offers long battery life and simplified installation, making it an efficient solution for large, open, or architecturally challenging environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vesda |
| Category | Fire Detection |
| Part Number | OSE-HP-01 |
| Subcategory | Emitters |
| Manufacturer | Honeywell International |
| Series | OSID (Open-area Smoke Imaging Detection) |
| Power Source | High-power alkaline battery |
| Battery Life | 3–5 years typical |
| Detection Technology | Dual-wavelength (UV & IR) optical imaging |
| Imaging Sensor | CMOS chip |
| Installation | Wall or ceiling mounted with supplied brackets |
| Coverage | Works with OSID imagers to monitor large open areas |
| Alarm Interface | Conventional fire alarm output |
| Status Indication | LEDs for Fire, Trouble, and Power |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Certifications | UL, ULC, FM, AFNOR, CE (EMC and CPD), VdS, ActivFire, BOSEC |
| Housing | Durable, impact-resistant construction |
| Setup Time | Under 10 minutes with automatic commissioning |
| Dimensions | 8.9 × 6.7 × 6.7 in |
| Weight | 3.25 lbs |
Information About OSE-HP-01
The OSE-HP-01 is part of the Xtralis OSID Series, a cutting-edge line of open-area smoke detection systems utilizing optical imaging with CMOS technology. It is designed to work in conjunction with an OSID imager to monitor smoke density across wide spaces by projecting dual-wavelength UV and IR beams. The high-power version ensures optimal signal transmission over extended distances, making it suitable for warehouses, atriums, airports, and industrial facilities. With a robust design, long-life alkaline batteries, and straightforward mounting options, the OSE-HP-01 provides exceptional reliability and reduced maintenance requirements compared to traditional beam detectors.
Key Features:
- Dual-Wavelength Detection: Uses both UV and IR beams for superior smoke recognition and reduced false alarms.
- High-Power Transmission: Extended operating range for large or open spaces requiring broad smoke coverage.
- CMOS Optical Imaging: Advanced imaging technology ensures precise alignment and detection accuracy.
- Battery-Powered Design: Alkaline battery operation with up to five years of life reduces wiring and installation time.
- Automatic Commissioning: Quick setup process completed in under ten minutes.
- Drift and Movement Tolerance: Compensates for building vibration, movement, and environmental changes.
- Simple Integration: Conventional alarm interface for easy connection to fire detection systems.
- Status Indicators: On-board LEDs provide clear fire, fault, and power condition updates.
The OSE-HP-01 delivers the reliability and precision required for dependable open-area smoke imaging detection in demanding environments.
Description
The Vesda OSE-HP-01 is a high-power emitter designed for use with OSID (Open-area Smoke Imaging Detection) systems by Honeywell International. Operating on advanced dual-wavelength optical imaging technology, it provides precise early warning smoke detection in open areas while minimizing false alarms and alignment issues. The OSE-HP-01 offers long battery life and simplified installation, making it an efficient solution for large, open, or architecturally challenging environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vesda |
| Category | Fire Detection |
| Part Number | OSE-HP-01 |
| Subcategory | Emitters |
| Manufacturer | Honeywell International |
| Series | OSID (Open-area Smoke Imaging Detection) |
| Power Source | High-power alkaline battery |
| Battery Life | 3–5 years typical |
| Detection Technology | Dual-wavelength (UV & IR) optical imaging |
| Imaging Sensor | CMOS chip |
| Installation | Wall or ceiling mounted with supplied brackets |
| Coverage | Works with OSID imagers to monitor large open areas |
| Alarm Interface | Conventional fire alarm output |
| Status Indication | LEDs for Fire, Trouble, and Power |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Certifications | UL, ULC, FM, AFNOR, CE (EMC and CPD), VdS, ActivFire, BOSEC |
| Housing | Durable, impact-resistant construction |
| Setup Time | Under 10 minutes with automatic commissioning |
| Dimensions | 8.9 × 6.7 × 6.7 in |
| Weight | 3.25 lbs |
Information About OSE-HP-01
The OSE-HP-01 is part of the Xtralis OSID Series, a cutting-edge line of open-area smoke detection systems utilizing optical imaging with CMOS technology. It is designed to work in conjunction with an OSID imager to monitor smoke density across wide spaces by projecting dual-wavelength UV and IR beams. The high-power version ensures optimal signal transmission over extended distances, making it suitable for warehouses, atriums, airports, and industrial facilities. With a robust design, long-life alkaline batteries, and straightforward mounting options, the OSE-HP-01 provides exceptional reliability and reduced maintenance requirements compared to traditional beam detectors.
Key Features:
- Dual-Wavelength Detection: Uses both UV and IR beams for superior smoke recognition and reduced false alarms.
- High-Power Transmission: Extended operating range for large or open spaces requiring broad smoke coverage.
- CMOS Optical Imaging: Advanced imaging technology ensures precise alignment and detection accuracy.
- Battery-Powered Design: Alkaline battery operation with up to five years of life reduces wiring and installation time.
- Automatic Commissioning: Quick setup process completed in under ten minutes.
- Drift and Movement Tolerance: Compensates for building vibration, movement, and environmental changes.
- Simple Integration: Conventional alarm interface for easy connection to fire detection systems.
- Status Indicators: On-board LEDs provide clear fire, fault, and power condition updates.
The OSE-HP-01 delivers the reliability and precision required for dependable open-area smoke imaging detection in demanding environments.
