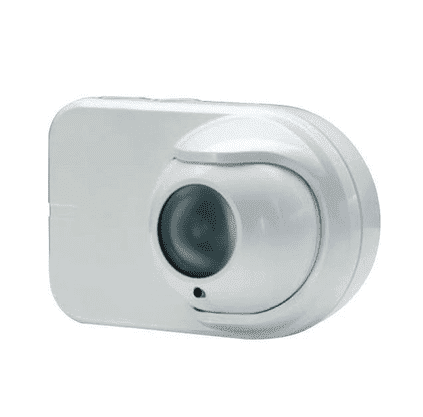

OSE-HPW | Xtralis High Power Wired Optical Smoke Emitter for OSID Systems
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: OSE-HPW
Description
The Xtralis OSE-HPW is a high-power wired emitter designed for use with OSID (Open-area Smoke Imaging Detection) systems. This advanced emitter by Honeywell provides dual-wavelength UV and IR beam generation for precise smoke detection in open and large spaces. It ensures stable operation under challenging environmental conditions, offering superior immunity to sunlight, dust, and structural movement.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Detection |
| Part Number | OSE-HPW |
| Subcategory | Optical Smoke Emitter |
| Manufacturer | Honeywell International |
| Series | OSID Series |
| Operating Voltage | 20–30 V DC |
| Current Consumption @ 24V DC | Approx. 0.80 mA |
| Alignment Angle (Horizontal) | -60° to +60° |
| Alignment Angle (Vertical) | -15° to +15° |
| Detection Range | Up to 150 m (492 ft) |
| Operating Temperature | -10 °C to +55 °C |
| Type of Protection (Electronics) | IP44 |
| Type of Protection (Optical Housing) | IP66 |
| Detector Specification | EN 54-12 Certified |
| Dimensions (W × H × D) | 208 × 136 × 96 mm |
| Weight | Approx. 0.2 lbs (535 g) |
Information About OSE-HPW
The OSE-HPW is part of the Xtralis OSID Series, developed by Honeywell for high-performance optical smoke detection in industrial, commercial, and public spaces. It operates using patented dual-wavelength UV and IR light beams that are uniquely encoded and recognized by the receiver to eliminate false alarms from ambient light sources. The unit is designed for easy installation and alignment, featuring durable construction with IP44/IP66-rated protection for both electronic and optical components. With its robust build, extended range, and compatibility with OSID systems, it ensures reliable detection coverage for large open environments such as warehouses, airports, and atriums.
Key Features:
- Dual-Wavelength Detection: Uses UV and IR beams to ensure accurate smoke detection with minimal false alarms.
- High Environmental Resistance: Operates reliably in areas with dust, fog, reflections, or direct sunlight.
- Long Detection Range: Supports monitoring distances up to 150 m (492 ft) with minimal free space.
- Wide Alignment Flexibility: Horizontal alignment of -60° to +60° and vertical -15° to +15° for easier installation.
- Robust Protection: IP44-rated electronics and IP66-rated optical housing ensure long-term durability.
- Low Power Consumption: Operates efficiently at approximately 0.80 mA @ 24 VDC.
- Diagnostic Capability: Built-in log memory and software tool for quick maintenance and system checks.
- Lightweight Design: Compact and discreet for aesthetic integration into modern building systems.
The OSE-HPW delivers the reliability and precision required for demanding smoke detection environments and critical safety applications.
