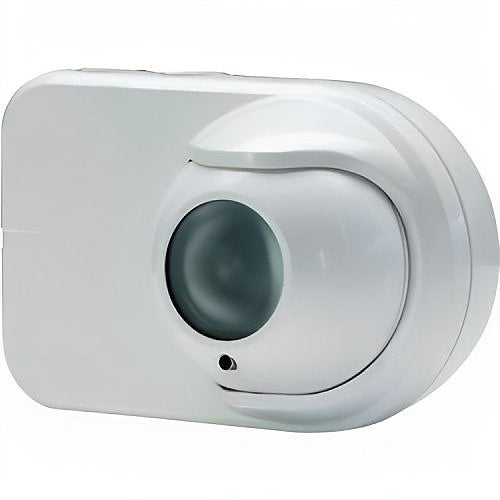

OSE-SP-01 | Xtralis OSID Battery-Powered Dual-Beam Emitter for Open-Area Smoke Detection
- Regular price
- $344.00
- Sale price
- $344.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: OSE-SP-01
Description
The Xtralis OSE-SP-01 is a battery-powered emitter designed for use in the OSID (Open-area Smoke Imaging Detection) beam detection system by Honeywell International. Operating with dual-wavelength UV and IR light technology, it ensures reliable smoke detection performance even in challenging environments. This emitter provides up to five years of battery life, reducing installation complexity and cost by eliminating the need for wired power connections.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Detection |
| Part Number | OSE-SP-01 |
| Subcategory | Beam Detector Emitters |
| Manufacturer | Honeywell International |
| Series | OSID Series |
| Type | Battery-Powered Emitter |
| Light Source | Dual-wavelength UV and IR beams |
| Detection Range | Up to 150 m (492 ft.) |
| Beam Diameter Requirement | 15 cm (5.85 in) minimum free space |
| Power Source | Proprietary alkaline battery |
| Battery Life | Up to 5 years |
| Compatibility | OSID-DE and OSID-R Receivers |
| Environmental Resistance | Dust, fog, steam, and sunlight interference |
| Installation | Wall-mounted, wireless configuration |
| Diagnostic Functions | On-board memory and software support |
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F) |
| Housing Material | High-durability polymer enclosure |
| Dimensions | 8.20 × 5.40 × 3.80 in (208 × 137 × 97 mm) |
| Weight | 1.17 lbs (0.53 kg) |
Information About OSE-SP-01
The OSE-SP-01 is part of the OSID Series of open-area smoke imaging detectors, specifically designed to work with OSID receivers to detect smoke across wide spaces such as warehouses, atriums, and industrial facilities. Each emitter produces two coded light beams—one ultraviolet (UV) and one infrared (IR)—that are uniquely recognized by the receiver, ensuring high resistance to false alarms caused by sunlight or reflections. The unit is fully battery-powered, using a proprietary alkaline cell designed for a five-year operational lifespan under normal conditions. Its robust optical design ensures accuracy and consistency even in environments affected by dust, vibration, or minor structural movement.
Key Features:
- Dual-Wavelength Technology: Emits UV and IR beams for accurate smoke particle detection and false alarm immunity.
- Battery-Powered Design: Operates independently of wired power with a guaranteed 5-year battery life.
- Coded Light Beams: Unique signal encoding prevents interference from ambient light sources, including sunlight.
- High Environmental Resistance: Performs reliably in areas with dust, fog, vibration, or reflections.
- Long Detection Range: Supports coverage distances of up to 150 meters (492 ft.) with minimal free-space requirements.
- Ease of Installation: No external wiring needed, simplifying setup and reducing installation costs.
- Integrated Diagnostics: Equipped with on-board memory and software tools for maintenance and troubleshooting.
- Durable Construction: Designed for continuous use in industrial, commercial, and open-area fire detection systems.
The OSE-SP-01 delivers the reliability and precision required for dependable beam-type smoke detection in open and high-ceiling environments.
