Product Description P/N: OSE-SPW
Description

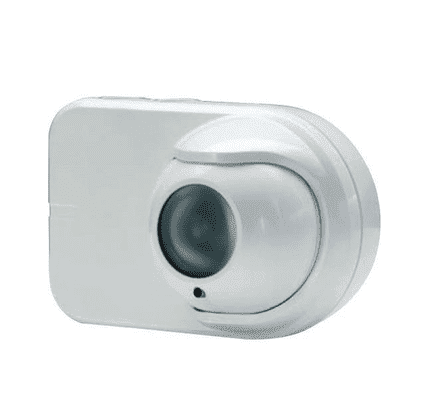

The Vesda® Xtralis OSE-SPW is a standard-power wired emitter designed for use with the OSID-DE (Open-area Smoke Imaging Detection) system. It emits dual-wavelength coded light beams in both ultraviolet (UV) and infrared (IR) frequencies, enabling reliable smoke detection over long distances. Engineered for precision and resilience, it ensures stable performance in large, open environments where traditional point detectors are impractical.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vesda Xtralis |
| Category | Flame Safety Products |
| Part Number | OSE-SPW |
| Subcategory | Flame Safety Detector |
| System Type | OSID-DE (Open-area Smoke Imaging Detection) |
| Component Type | Standard Power Wired Emitter |
| Detection Technology | Dual-wavelength (UV and IR) coded beam emission |
| Detection Range | Up to 150 m (492 ft.) |
| Light Beam Diameter | Approx. 15 cm (5.85 in) |
| Imager Compatibility | CMOS-based OSID Imager (OSID-DE system) |
| Environmental Resistance | Dust, fog, steam, reflections, and vibration tolerant |
| Installation Type | Wired power connection (standard power) |
| Mounting Orientation | Wall-mounted, aligned with OSID imager |
| Diagnostic Features | On-board log memory, software-based diagnostics |
| Applications | Warehouses, atriums, airports, tunnels, industrial facilities |
| Aesthetic Design | Compact, discreet form with 3D detection coverage |
| Manufacturer | Honeywell International |
| Weight | Approx. 0.7 lbs |
Information About OSE-SPW
The OSE-SPW is a key component of the Xtralis OSID (Open-area Smoke Imaging Detection) system, which uses a unique imaging-based detection principle for wide-area coverage. Each emitter produces encoded UV and IR beams recognized by the paired imager, allowing it to ignore ambient light interference such as sunlight or reflections. Designed for wired installation, this standard-power emitter supports ranges up to 150 m (492 ft.) and is tolerant of building movement, vibration, and environmental contaminants. Its rugged construction and diagnostic logging functions make it ideal for large open spaces like warehouses, atriums, hangars, and transportation terminals.
Key Features:
- Dual-Wavelength Emission: Projects both UV and IR coded beams for precise particle detection.
- Encoded Signal Technology: Prevents false alarms by filtering out non-emitter light sources, including sunlight.
- Long-Range Coverage: Detects smoke across distances up to 150 m (492 ft.) with minimal beam obstruction.
- Environmental Resistance: Maintains accuracy despite dust, fog, reflections, or structural vibration.
- Simplified Installation: Alignment and commissioning are fast and straightforward with OSID tools.
- Integrated Log Memory: Records operational data for maintenance and diagnostic purposes.
- 3D Coverage Design: Provides wide-area monitoring suitable for complex spatial layouts.
- Wired Power Connection: Ensures continuous operation without reliance on batteries.
The OSE-SPW delivers the reliability and precision required for long-range, wide-area smoke detection in open and demanding environments.
