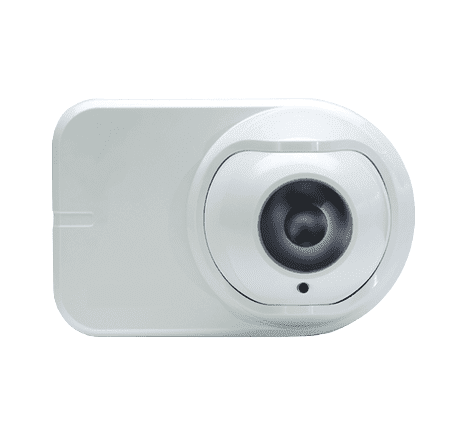

OSI-90 | Xtralis Dual-Wavelength Beam Smoke Detector for OSID Systems by Honeywell
- Regular price
- $615.00
- Sale price
- $615.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: OSI-90
Description
The Xtralis OSI-90 is a dual-ended optical smoke beam detector designed for large open-area applications. Manufactured by Honeywell, this OSID Series device utilizes dual-wavelength imaging technology to deliver early and reliable smoke detection while minimizing false alarms. Ideal for warehouses, atriums, and industrial facilities, the OSI-90 offers extended coverage, simplified installation, and superior environmental resistance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xtralis |
| Category | Fire Detection |
| Part Number | OSI-90 |
| Subcategory | Beam Smoke Detector |
| Manufacturer | Honeywell International / Xtralis Pty Ltd |
| Series | OSID Series |
| Product Type | Dual-Ended Optical Beam Smoke Detector |
| Detection Range | Up to 150 m (492 ft); 200 m (656 ft) CPR approved |
| Detection Method | Dual-wavelength UV/IR optical imaging |
| Imaging Sensor | CMOS chip |
| Alarm Thresholds | Three selectable levels |
| Alignment | Automatic; wide adjustment angles |
| False Alarm Resistance | High tolerance to dust, vibration, sunlight, and movement |
| Diagnostics | On-board event log |
| Indicators | LEDs for Fire, Trouble, Power |
| Operating Voltage | 20–30 V DC |
| Operating Temperature | -10 °C to +55 °C |
| Country of Origin | Australia |
| Dimensions (W × H × D) | 9 × 7 × 6.5 in |
| Weight | 2.3 lbs |
Information About OSI-90
The OSI-90 is part of Honeywell’s advanced OSID (Open-area Smoke Imaging Detection) line, which combines optical imaging and dual-wavelength LED technology for enhanced smoke detection performance. The device uses UV and IR beams projected across open spaces, monitored by a CMOS imaging chip that detects smoke particles based on light obscuration patterns. Designed for ease of installation, it automatically aligns during commissioning and tolerates structural movement without loss of accuracy. The OSI-90’s rugged build, event logging capability, and multiple alarm threshold settings make it a dependable solution for modern fire detection systems in challenging environments.
Key Features:
- Dual-Wavelength Detection: Utilizes UV and IR LED beams to distinguish smoke particles and prevent false alarms.
- Extended Detection Range: Monitors distances up to 150 m (492 ft) or 200 m (656 ft) for CPR-approved models.
- CMOS Imaging Chip: Provides precise optical analysis for accurate smoke identification.
- Auto Alignment and Calibration: Automatically adjusts during setup, reducing installation time.
- High Tolerance to Movement: Compensates for building shifts, dust, and reflections to ensure continuous operation.
- On-Board Event Log: Stores diagnostic data for fault and alarm analysis.
- Selectable Alarm Thresholds: Offers three configurable sensitivity levels for custom protection.
- Simplified Integration: Features a conventional alarm interface and clear status LEDs for Fire, Trouble, and Power indicators.
The OSI-90 delivers the reliability and accuracy required for large-scale fire protection systems where stable performance and minimal maintenance are critical.
