OSI-RI-GW | Gamewell-FCI Intelligent Reflective Beam Smoke Detector, Velocitiยฎ Series
- Regular price
- $1,675.00
- Sale price
- $1,675.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FCI OSI-RI-GW
Descriptionย

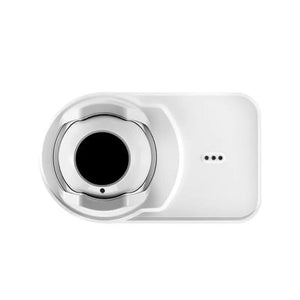

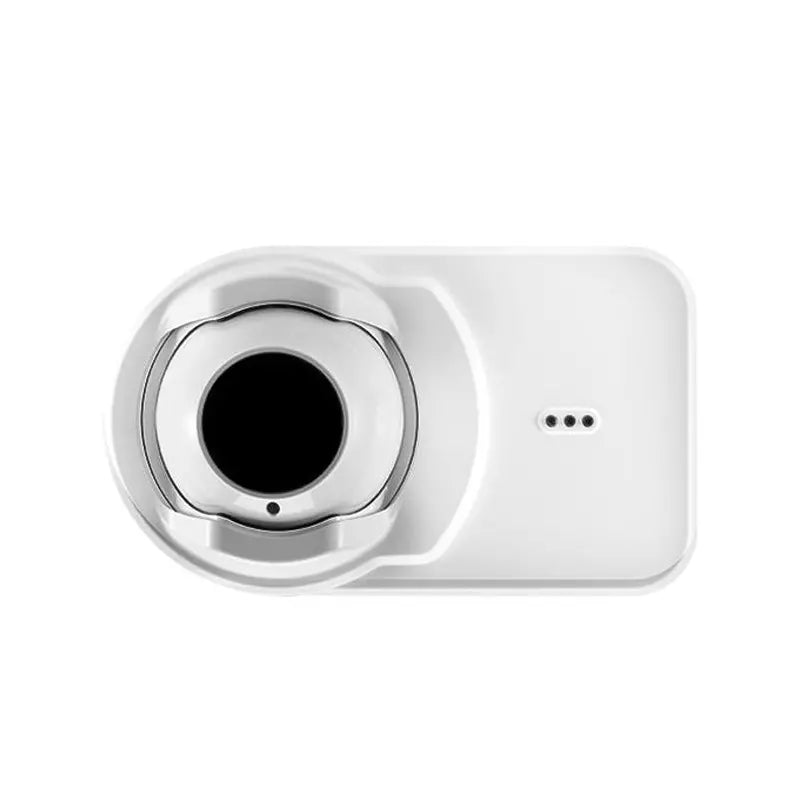

The Gamewell-FCI OSI-RI-GW is an intelligent addressable reflector-type linear optical beam smoke detector designed for large, open areas with high ceilings. This unit combines a transmitter and receiver in a single housing and operates on the principle of infrared light obscuration. It provides reliable smoke detection in warehouses, atriums, aircraft hangars, sports arenas, and other large facilities where spot detectors are impractical.
ย
ย
Technical Specificationsย
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Detection |
| Part Number | OSI-RI-GW |
| Subcategory | Beam Smoke Detectors |
| Series | Velocitiยฎ Series |
| Detection Method | Infrared light obscuration |
| Configuration | Single-ended reflector with combined transmitter/receiver |
| Field of View | 12ยฐ |
| Coverage Range | 16 to 328 ft (5โ100 m) |
| System Compatibility | GW-7075, S3 Series, E3 Series (Velocitiยฎ mode) |
| Drift Compensation | Automatic adjustment for dust and building movement |
| Test Capability | Remote test station supported |
| Mounting Options | Wall-mounted for high-ceiling applications |
| Applications | Warehouses, atriums, aircraft hangars, arenas, concert halls |
| Production Status | Active |
| Weight | 0.2 lbs (detector unit); shipping weight approx. 4 lbs |
ย
Information About FCI OSI-RI-GW
The OSI-RI-GW is part of Gamewell-FCIโs Velocitiยฎ series of intelligent detection devices. It integrates advanced beam smoke detection technology with reflector optics to monitor expansive spaces where traditional detectors cannot be used effectively. The unit is fully compatible with the GW-7075, S3 Series, and E3 Series fire alarm control panels operating in Velocitiยฎ mode. Designed with automatic compensation features, it ensures stable performance despite building movement, dust, or changing environmental conditions.
Key Features:
- Combined transmitter/receiver design: Simplifies installation with one compact housing unit.
- Wide detection field: Provides a 12ยฐ field of view for flexible coverage.
- Extended range capability: Supports distances from 16 to 328 ft without additional kits.
- Infrared light obscuration: Detects smoke particles using advanced optical imaging.
- Automatic drift compensation: Maintains accuracy despite dust accumulation or building shifts.
- Remote testing support: Compatible with remote test stations for easier maintenance.
- Velocitiยฎ mode operation: Ensures seamless integration with Gamewell-FCI fire alarm systems.
- Rugged design: Built for challenging environments such as hangars, arenas, and warehouses.
The OSI-RI-GW delivers the reliability and precision required for accurate smoke detection in large, high-ceiling applications.
Descriptionย
The Gamewell-FCI OSI-RI-GW is an intelligent addressable reflector-type linear optical beam smoke detector designed for large, open areas with high ceilings. This unit combines a transmitter and receiver in a single housing and operates on the principle of infrared light obscuration. It provides reliable smoke detection in warehouses, atriums, aircraft hangars, sports arenas, and other large facilities where spot detectors are impractical.
ย
ย
Technical Specificationsย
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Detection |
| Part Number | OSI-RI-GW |
| Subcategory | Beam Smoke Detectors |
| Series | Velocitiยฎ Series |
| Detection Method | Infrared light obscuration |
| Configuration | Single-ended reflector with combined transmitter/receiver |
| Field of View | 12ยฐ |
| Coverage Range | 16 to 328 ft (5โ100 m) |
| System Compatibility | GW-7075, S3 Series, E3 Series (Velocitiยฎ mode) |
| Drift Compensation | Automatic adjustment for dust and building movement |
| Test Capability | Remote test station supported |
| Mounting Options | Wall-mounted for high-ceiling applications |
| Applications | Warehouses, atriums, aircraft hangars, arenas, concert halls |
| Production Status | Active |
| Weight | 0.2 lbs (detector unit); shipping weight approx. 4 lbs |
ย
Information About FCI OSI-RI-GW
The OSI-RI-GW is part of Gamewell-FCIโs Velocitiยฎ series of intelligent detection devices. It integrates advanced beam smoke detection technology with reflector optics to monitor expansive spaces where traditional detectors cannot be used effectively. The unit is fully compatible with the GW-7075, S3 Series, and E3 Series fire alarm control panels operating in Velocitiยฎ mode. Designed with automatic compensation features, it ensures stable performance despite building movement, dust, or changing environmental conditions.
Key Features:
- Combined transmitter/receiver design: Simplifies installation with one compact housing unit.
- Wide detection field: Provides a 12ยฐ field of view for flexible coverage.
- Extended range capability: Supports distances from 16 to 328 ft without additional kits.
- Infrared light obscuration: Detects smoke particles using advanced optical imaging.
- Automatic drift compensation: Maintains accuracy despite dust accumulation or building shifts.
- Remote testing support: Compatible with remote test stations for easier maintenance.
- Velocitiยฎ mode operation: Ensures seamless integration with Gamewell-FCI fire alarm systems.
- Rugged design: Built for challenging environments such as hangars, arenas, and warehouses.
The OSI-RI-GW delivers the reliability and precision required for accurate smoke detection in large, high-ceiling applications.
